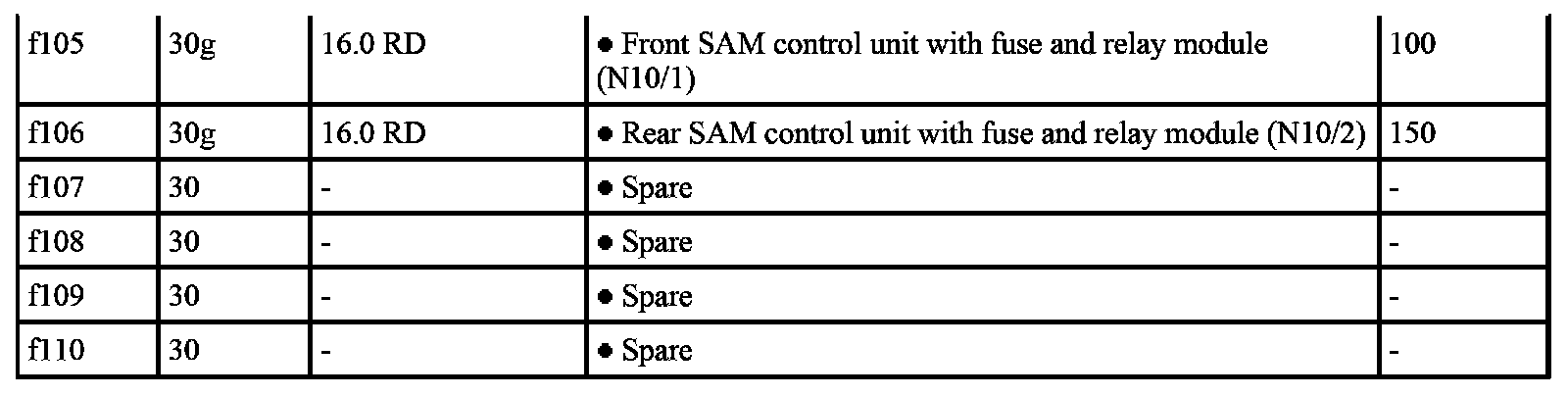

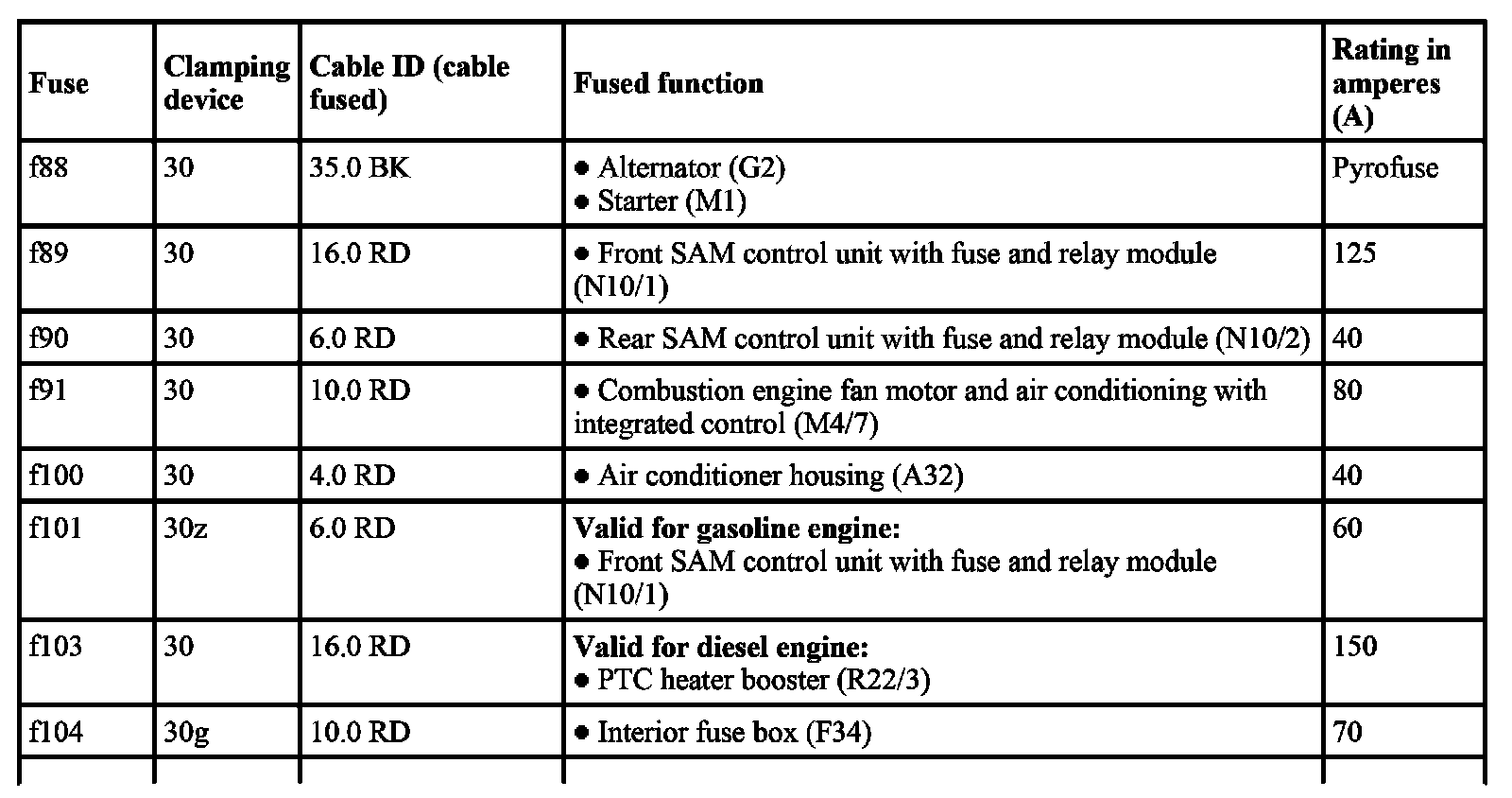

GF54.15-P-1256-07CE Fuse Assignment of Front Prefuse Box
GF54.15-P-1256-07CE Fuse Assignment of Front Prefuse Box
GF54.15-P-1256-07CE Fuse Assignment of Front Prefuse Box
Up to 31.5.09

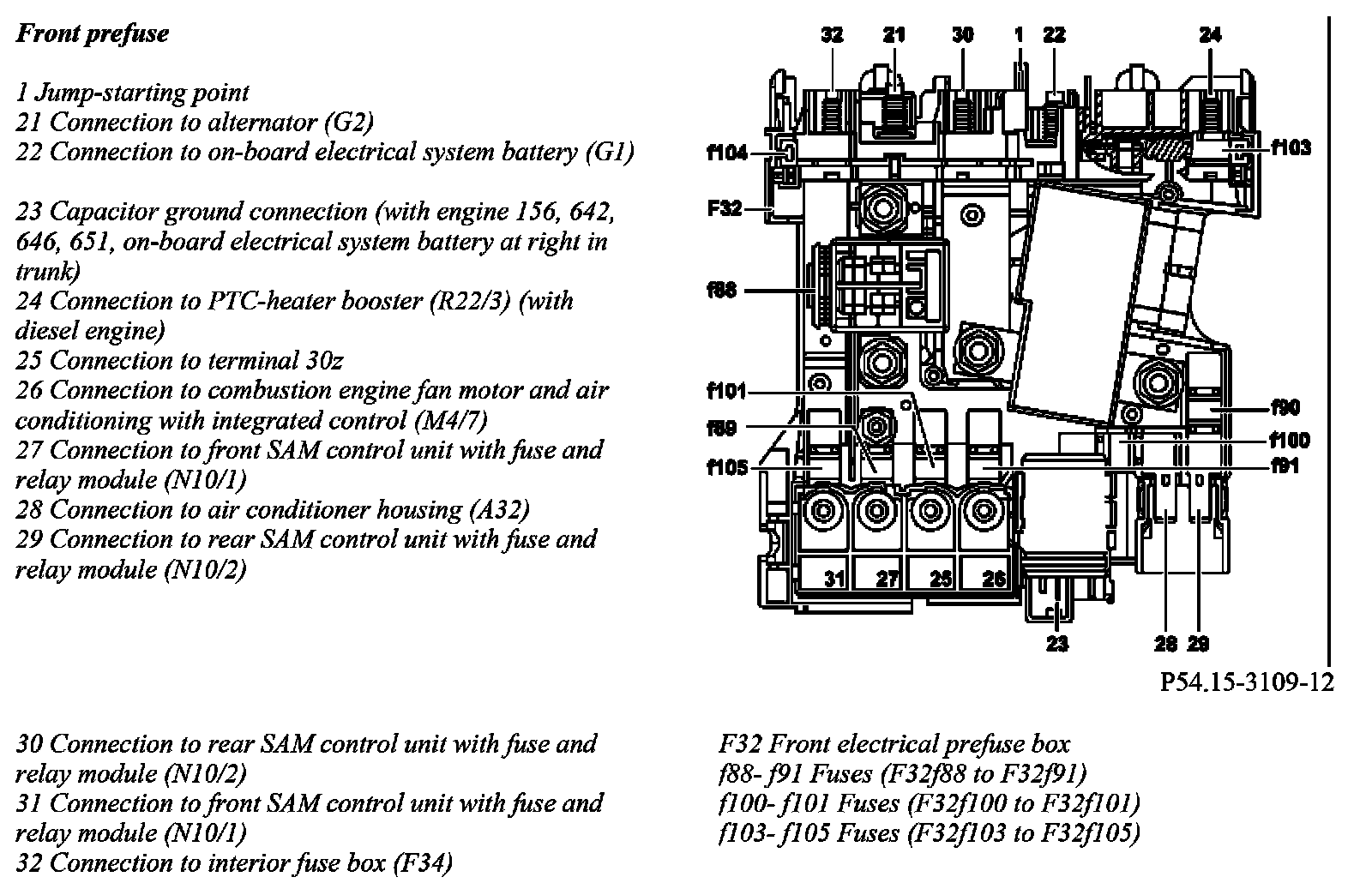

Component Location:
