Ground Locations



Supplemental Restraint System (SRS) Control Unit Ground Point

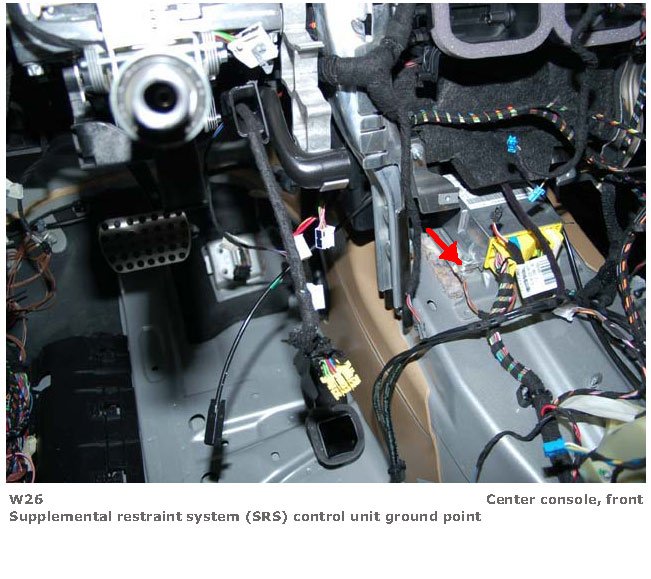

Supplemental Restraint System (SRS) Control Unit Ground Point (View 1):

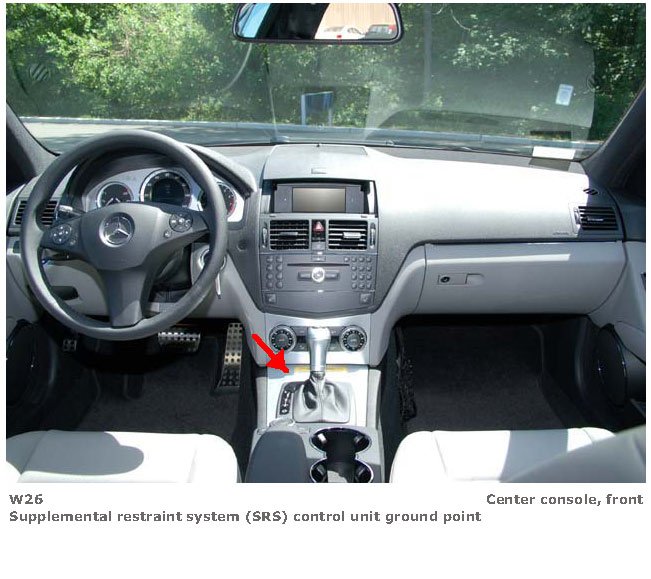

Supplemental Restraint System (SRS) Control Unit Ground Point (View 2):

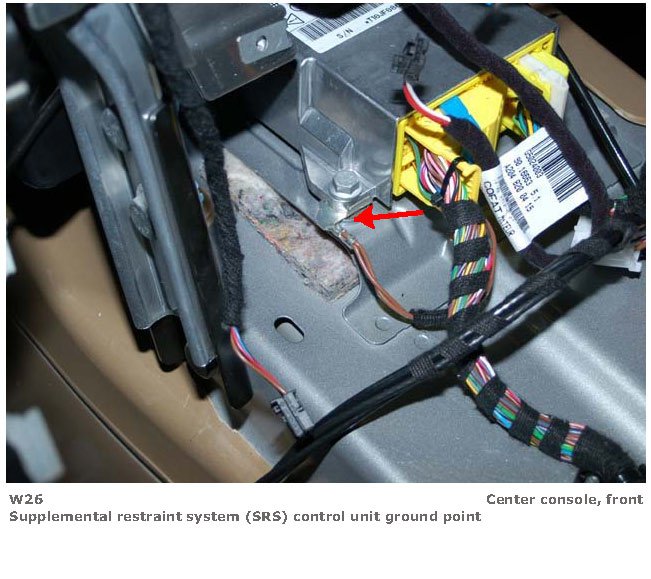

Supplemental Restraint System (SRS) Control Unit Ground Point (View 3):
