Auxiliary Battery Relay: Service and Repair

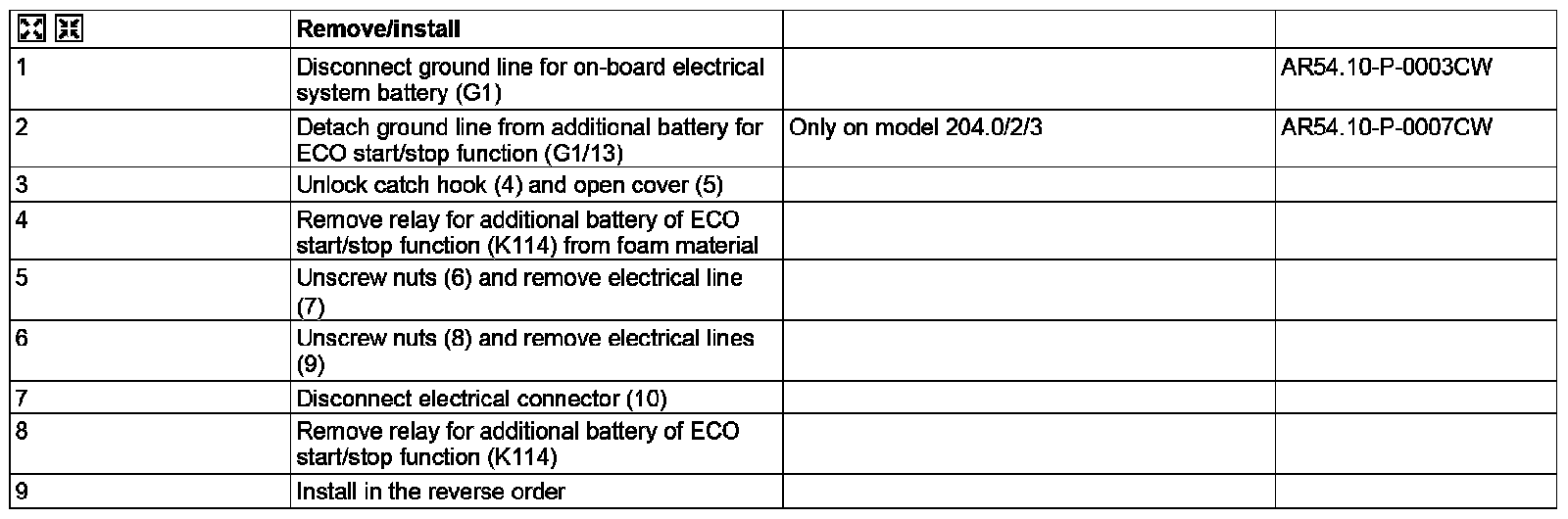

AR54.15-P-2000CW Remove/install Additional Battery Relay
- MODEL 204
- with CODE (B03) ECO start/stop function

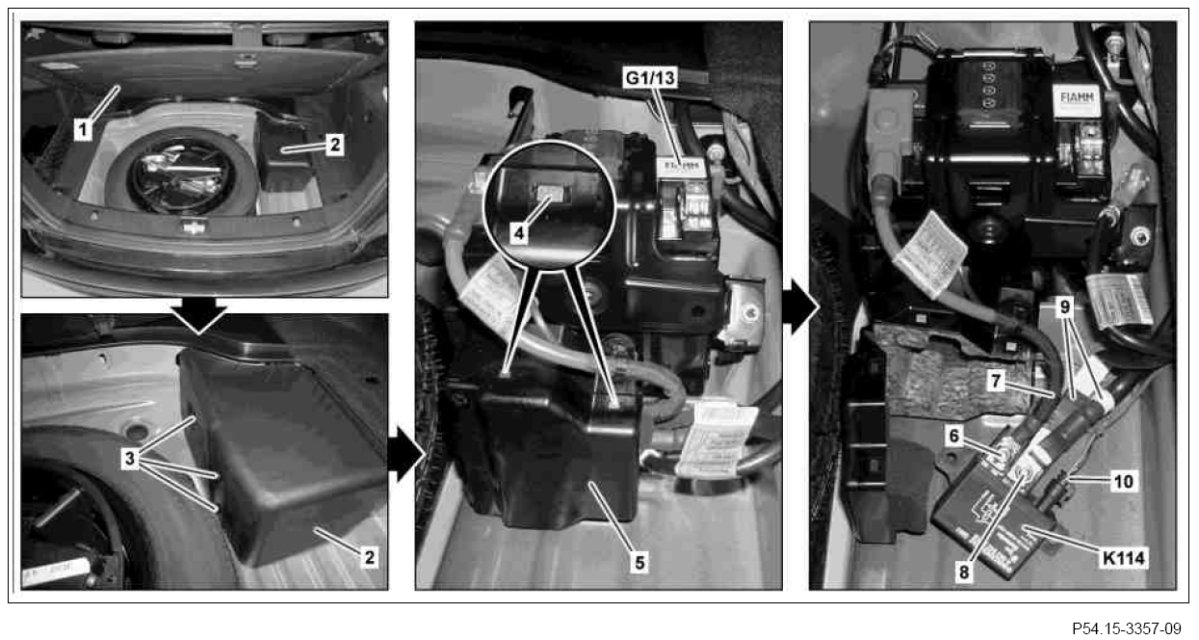

Shown on model 204.0

4 Catch hook
5 Cover
6 Nut
7 Electrical line
8 Nut
9 Electrical line
10 Electrical connector
G1/13 ECO start/stop function additional battery
K114 ECO start/stop function additional battery relay
