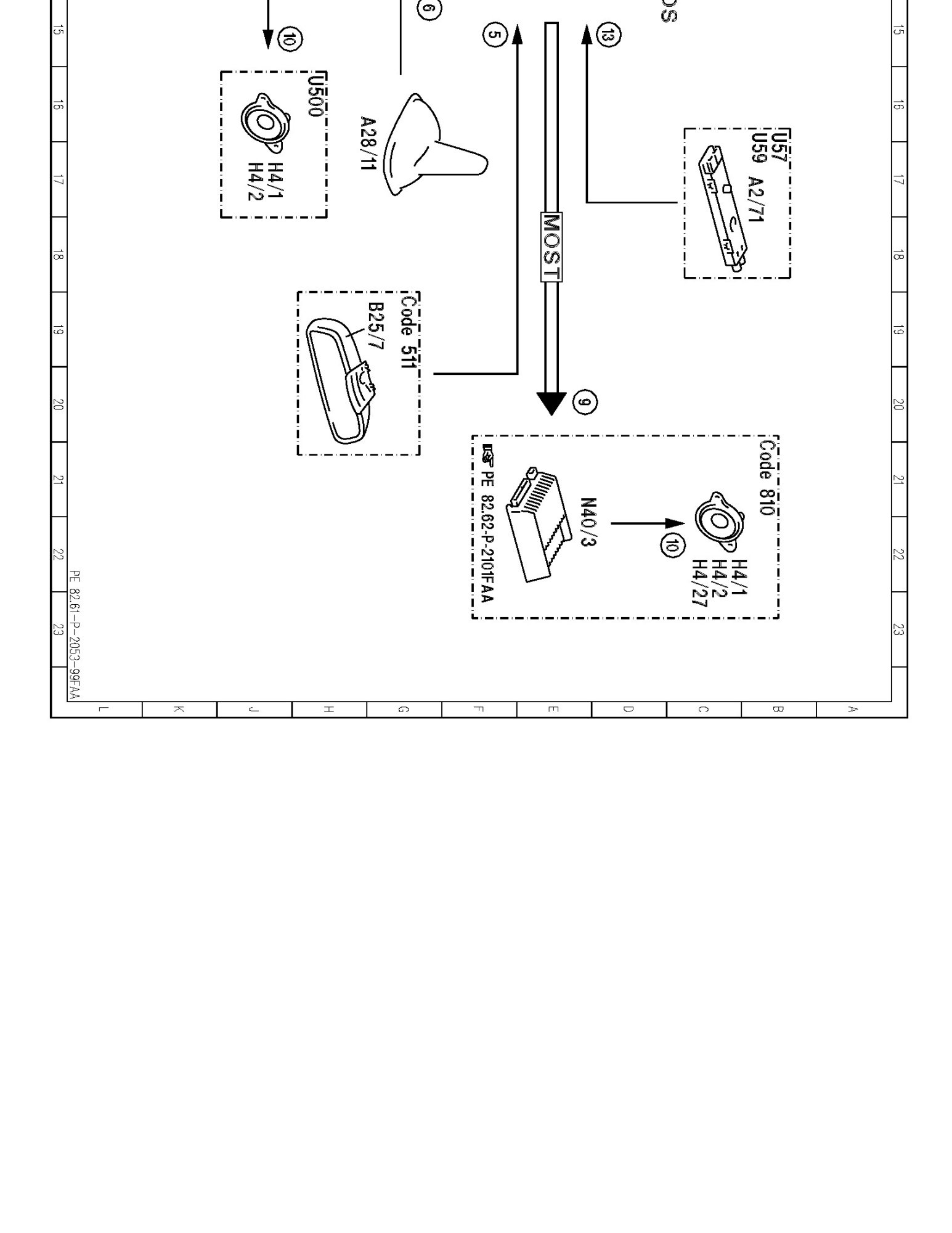

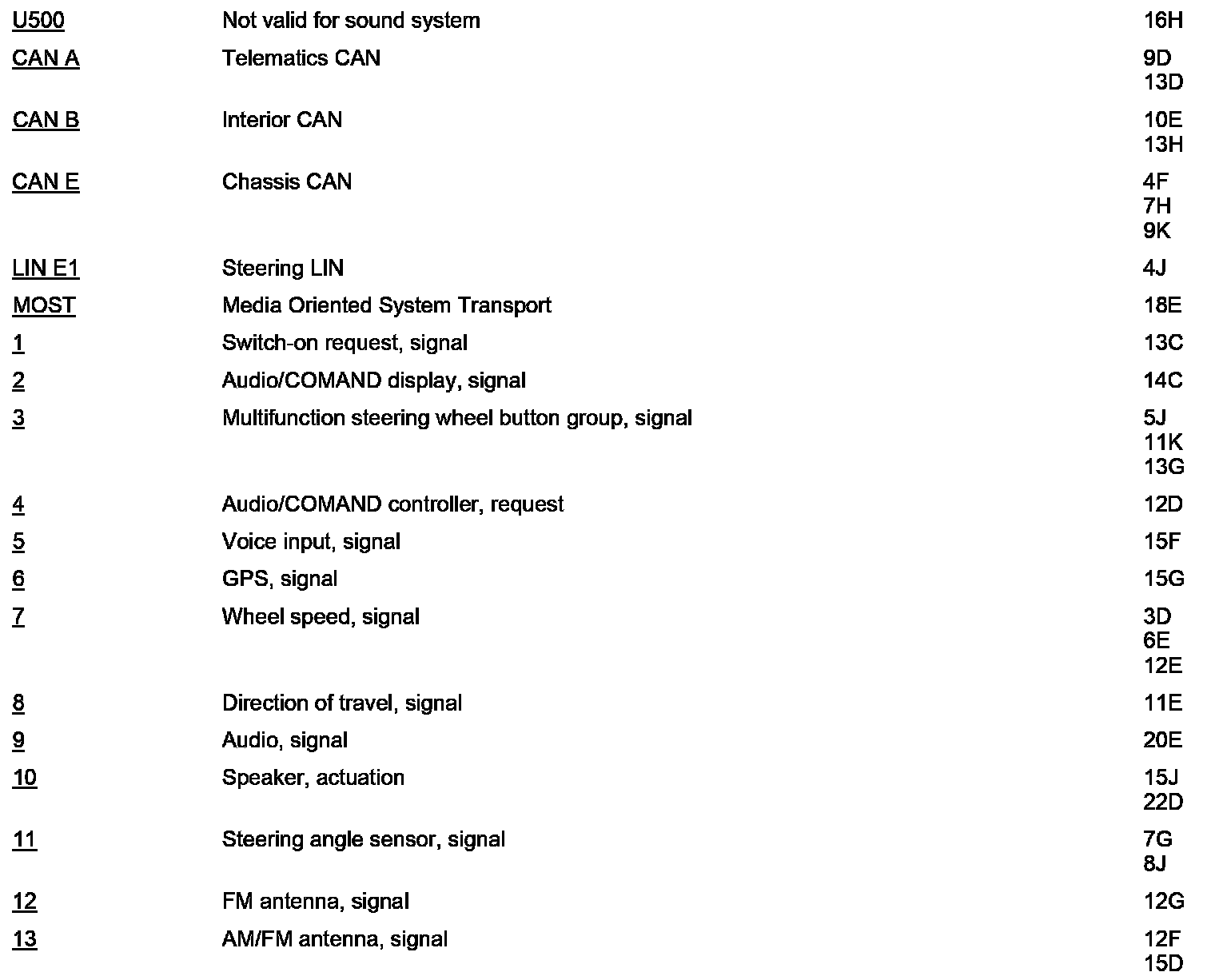

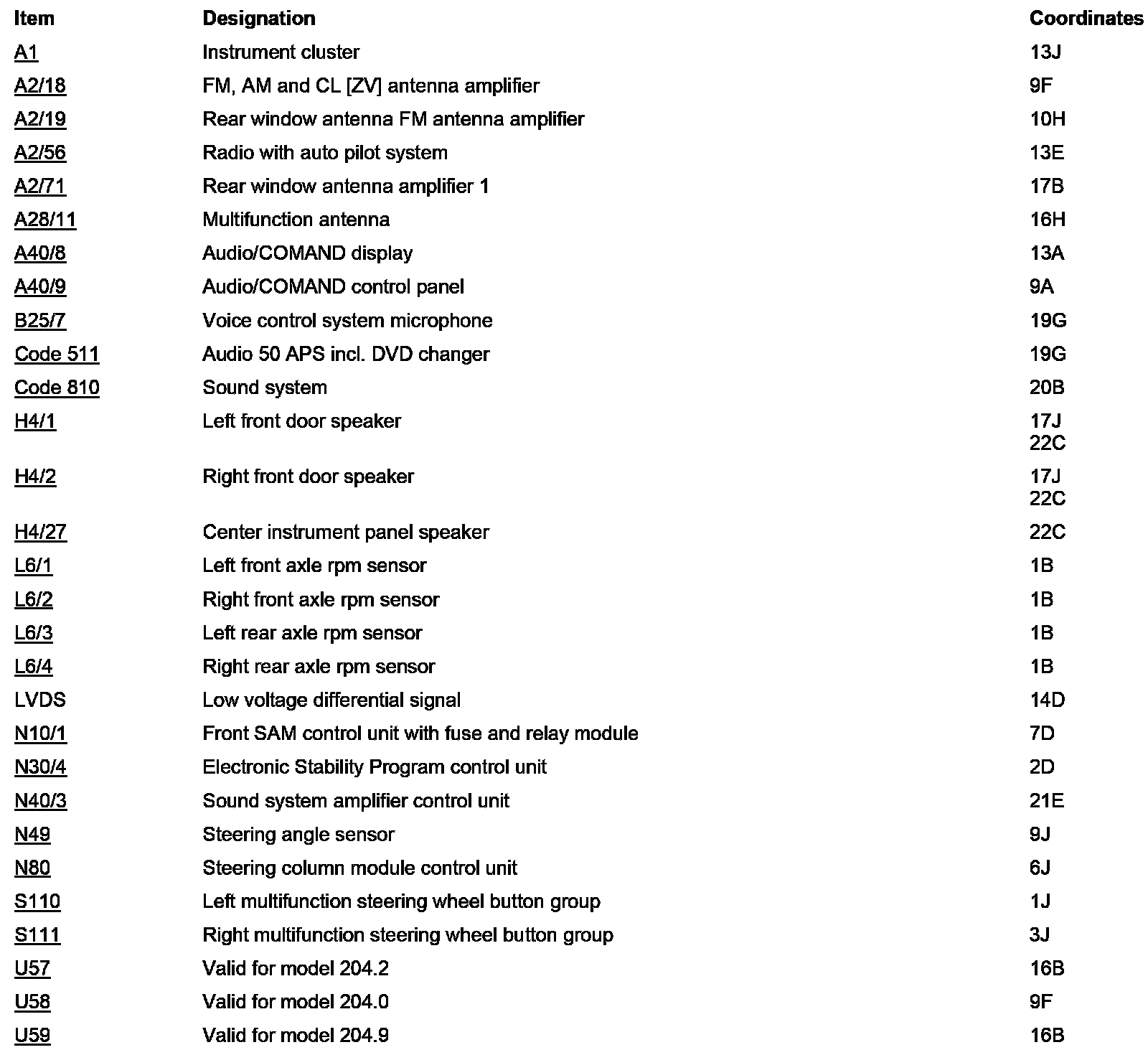

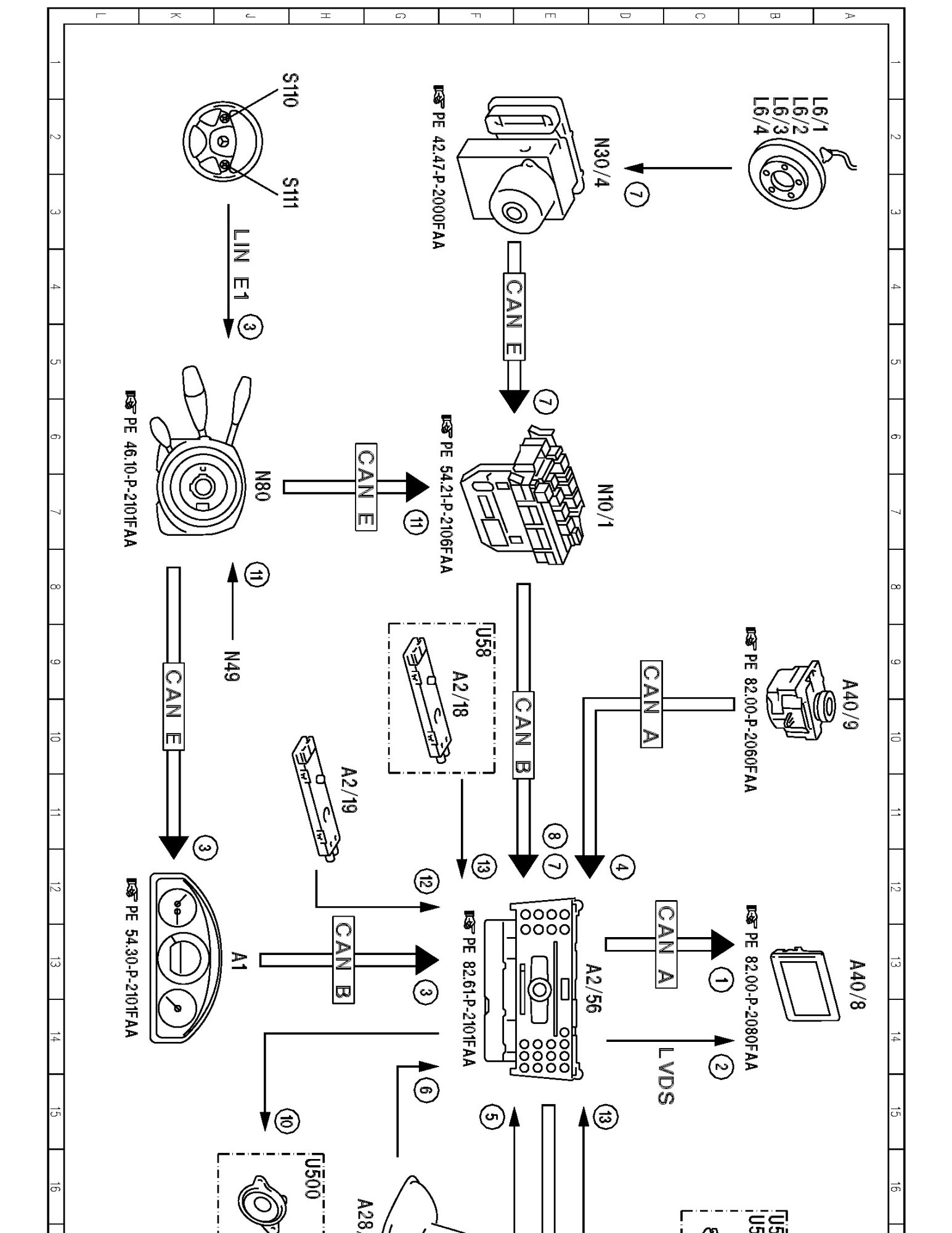

PE82.61-P-2053FAA Electrical Function Diagram For Position Finding and Navigation (APS), Function

PE82.61-P-2053FAA Electrical Function Diagram For Position Finding and Navigation (APS), Function
- with CODE (511) Audio 50 APS with DVD changer
- with CODE (525) MB Audio 50 APS radio


















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
