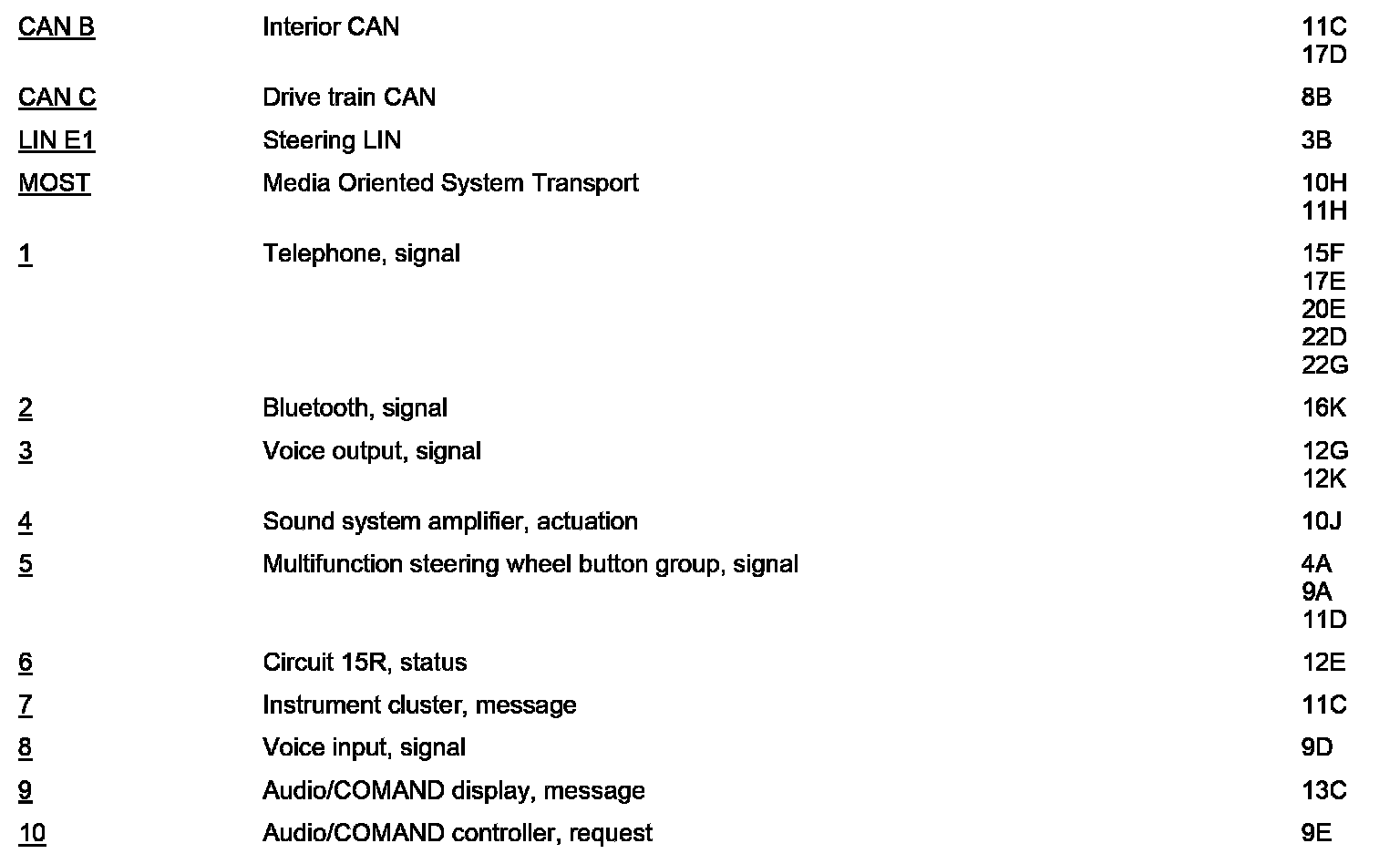

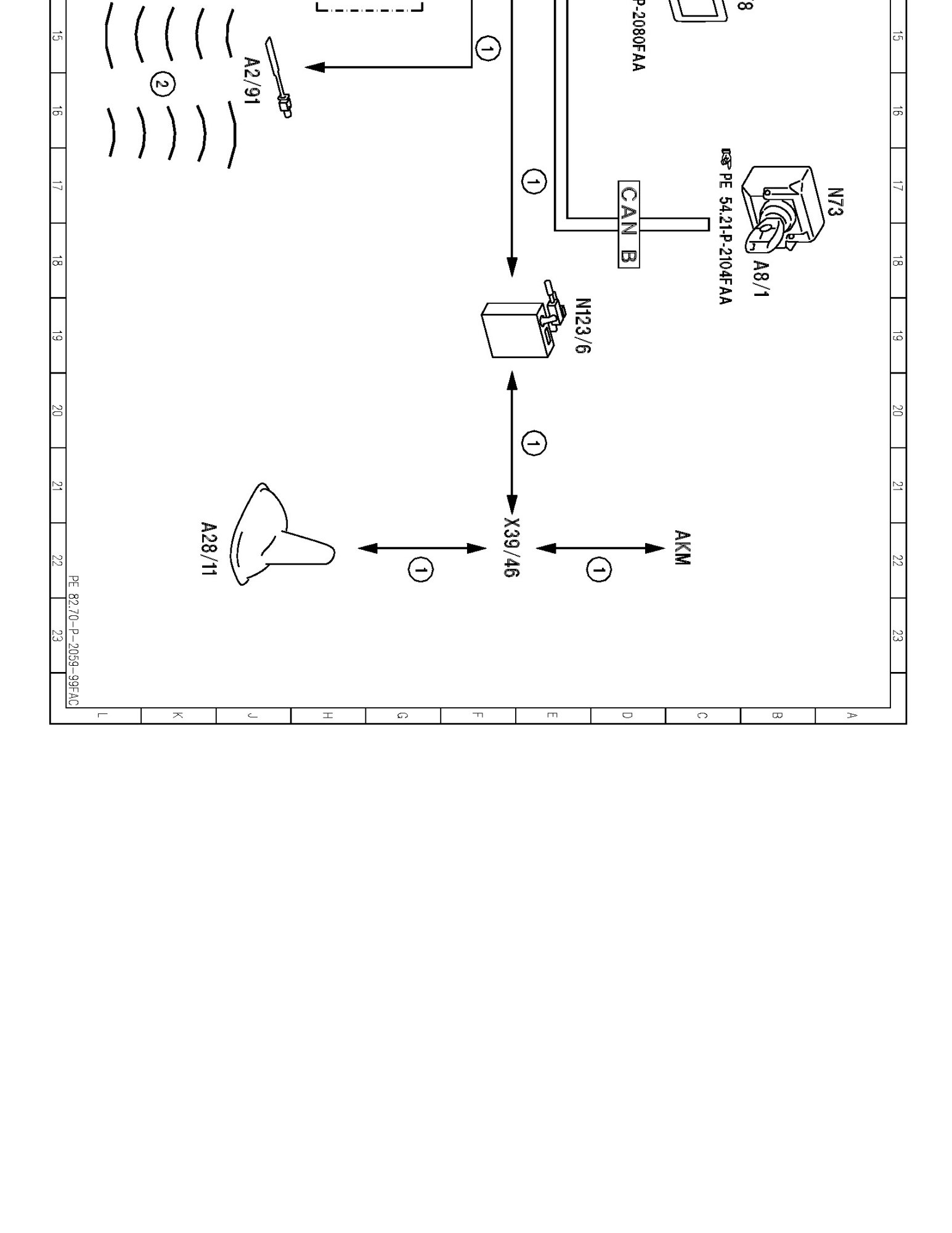

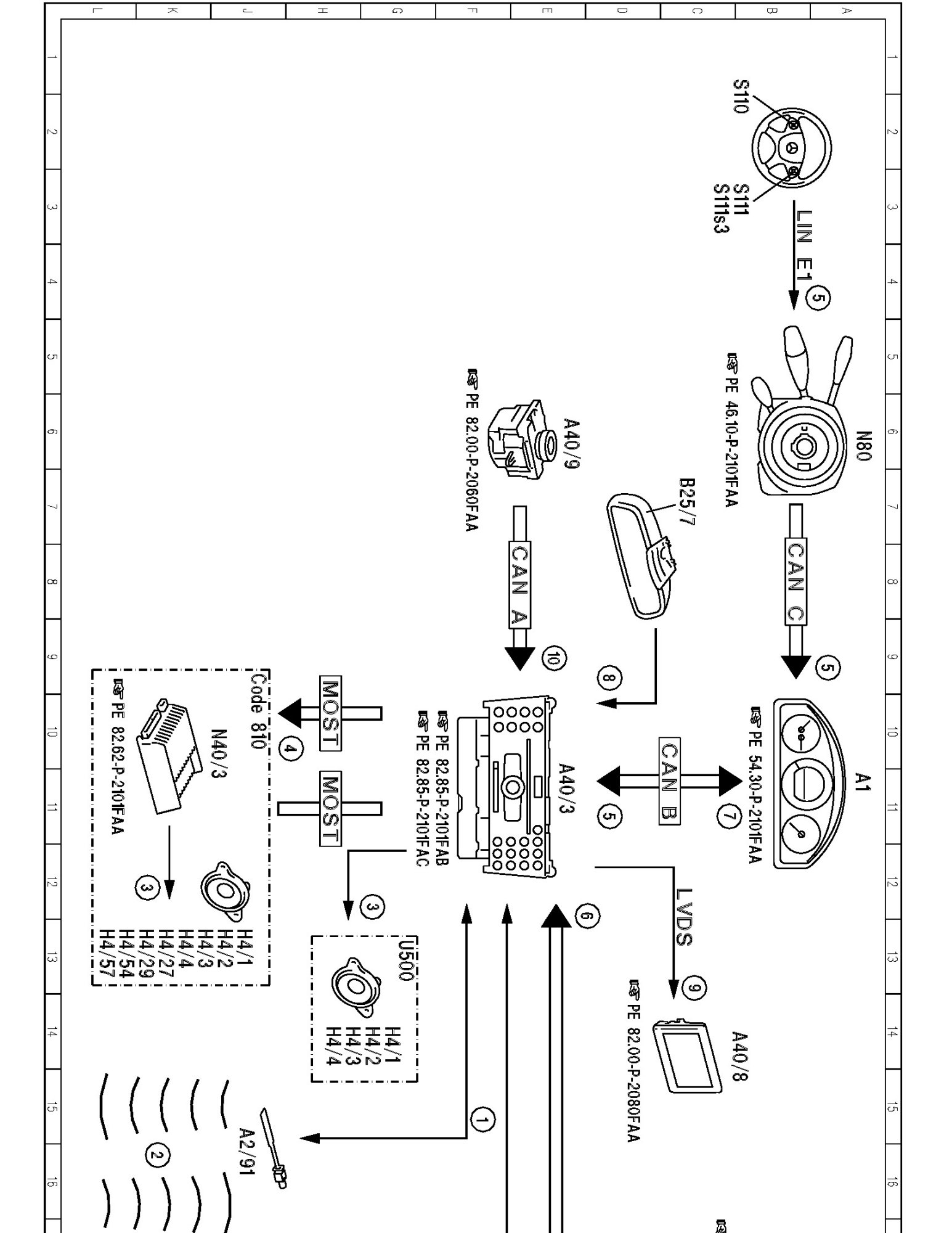

PE82.70-P-2059FAC Electrical Function Diagram For Mobile Phone Accepting Call, Rejecting Call and Conference Call

PE82.70-P-2059FAC Electrical Function Diagram For Mobile Phone Accepting Call, Rejecting Call and Conference Call
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (498) Japan version

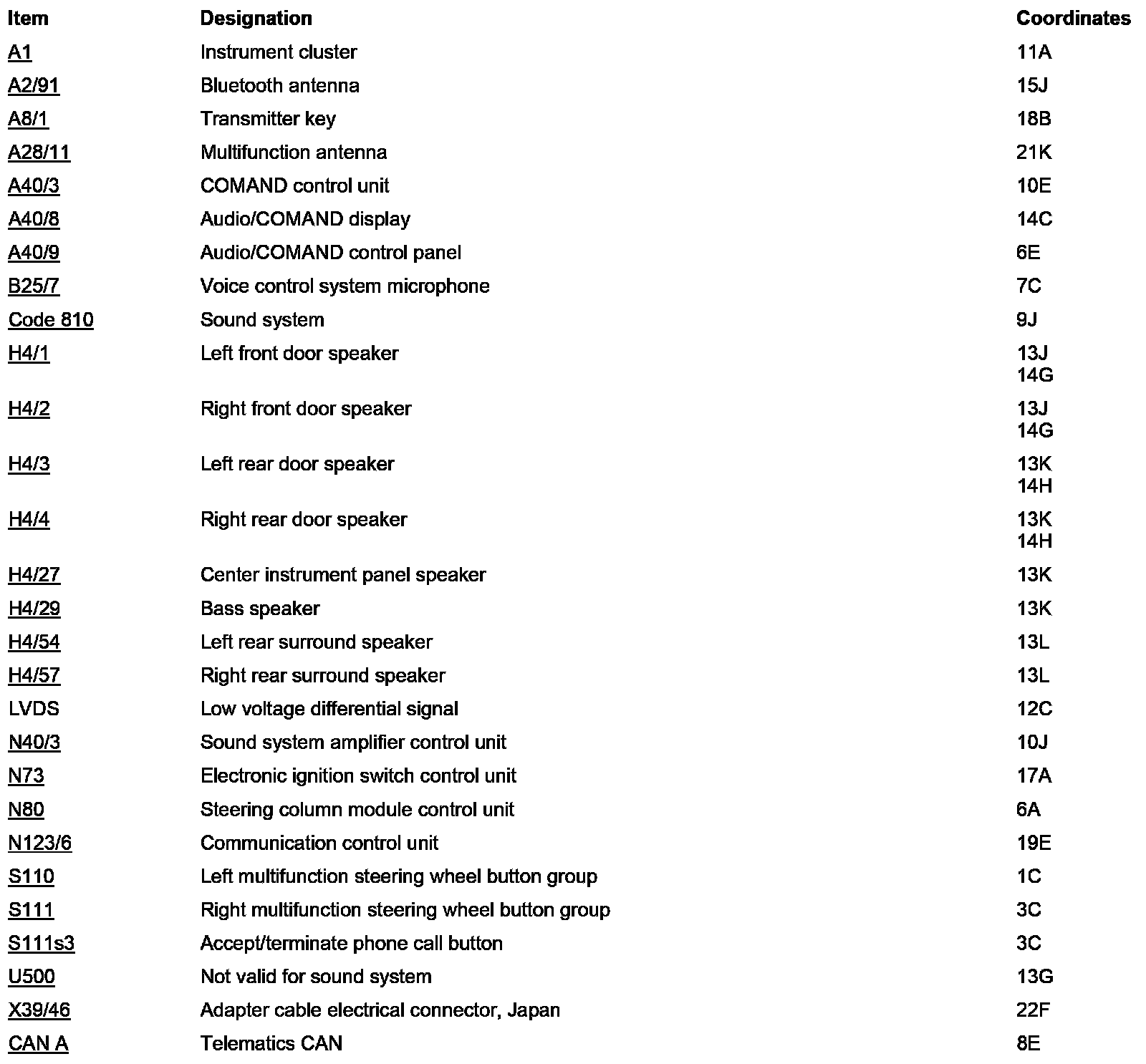

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
