PE82.85-P-2061FAC Electrical Function Diagram For Route Guidance By Voice Output (COMAND), Function

PE82.85-P-2061FAC Electrical Function Diagram For Route Guidance By Voice Output (COMAND), Function
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (498) Japan version

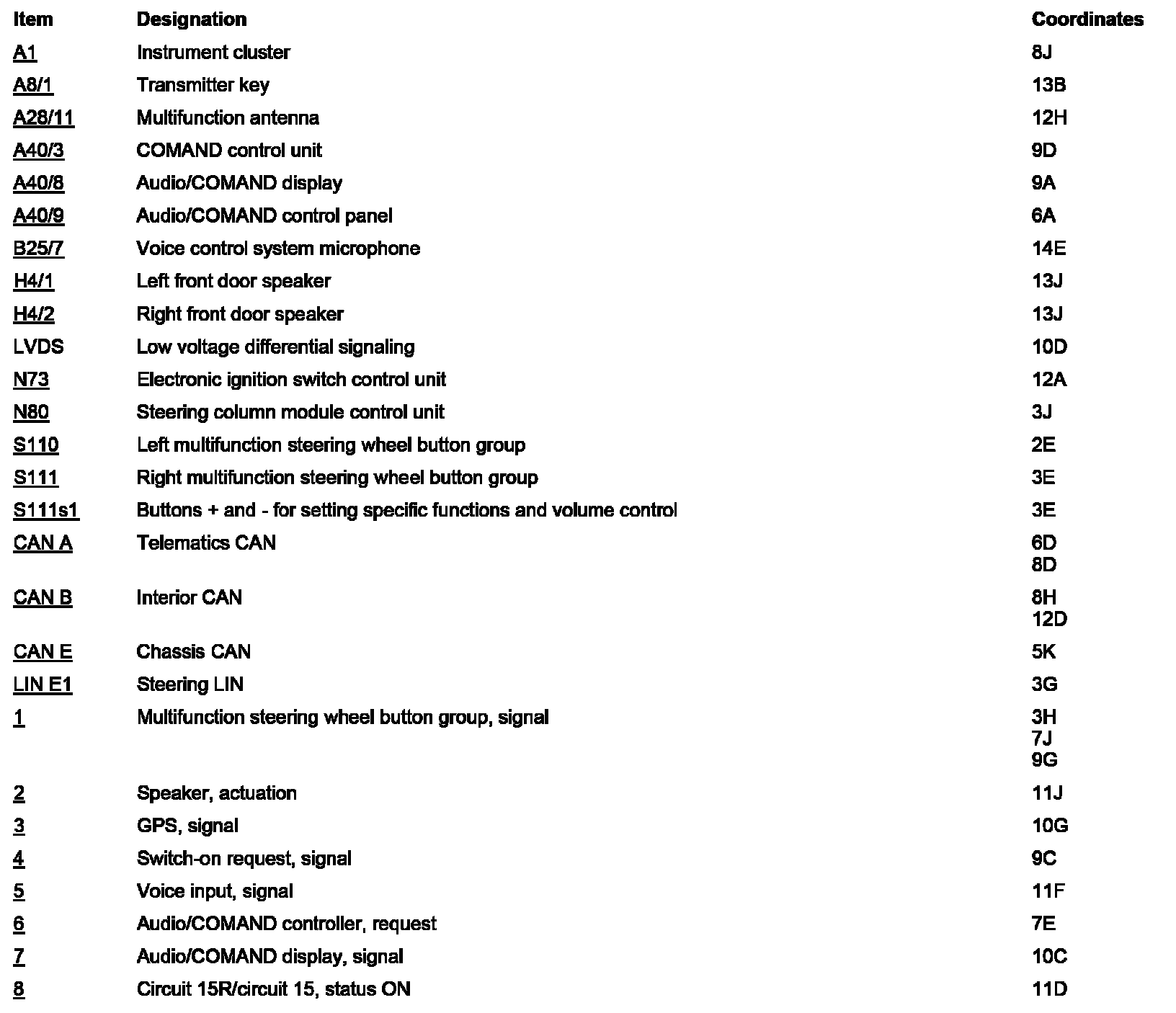

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
