Home >> Mercedes Benz >> 2009 >> C 300 4MATIC (204.081) V6-3.0L (272.948) >> Repair and Diagnosis >> Body and Frame >> Paint, Striping and Decals >> Paint >> Description and Operation >> GF98.00-P-4080CW Overview of Galvanization

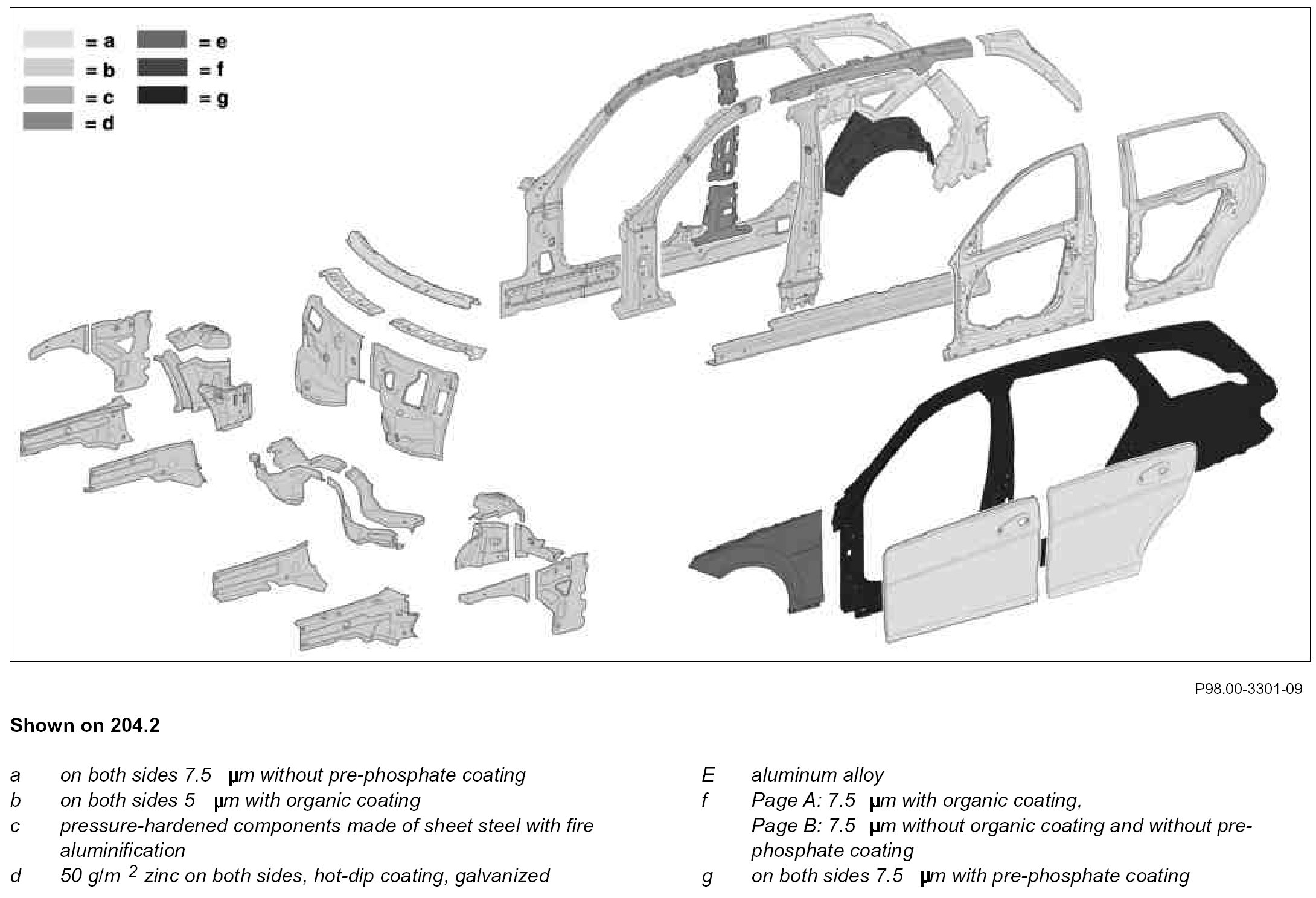

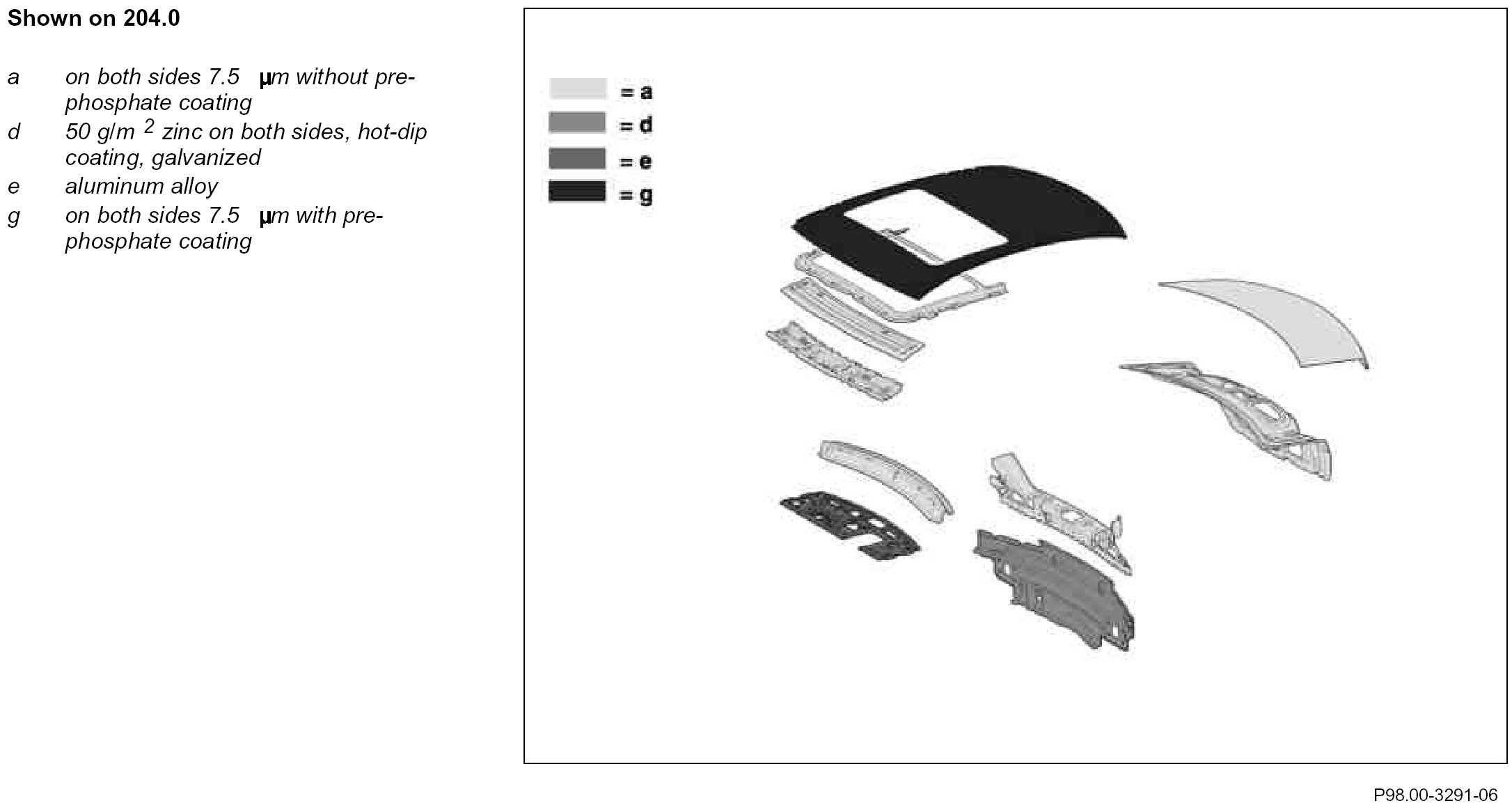

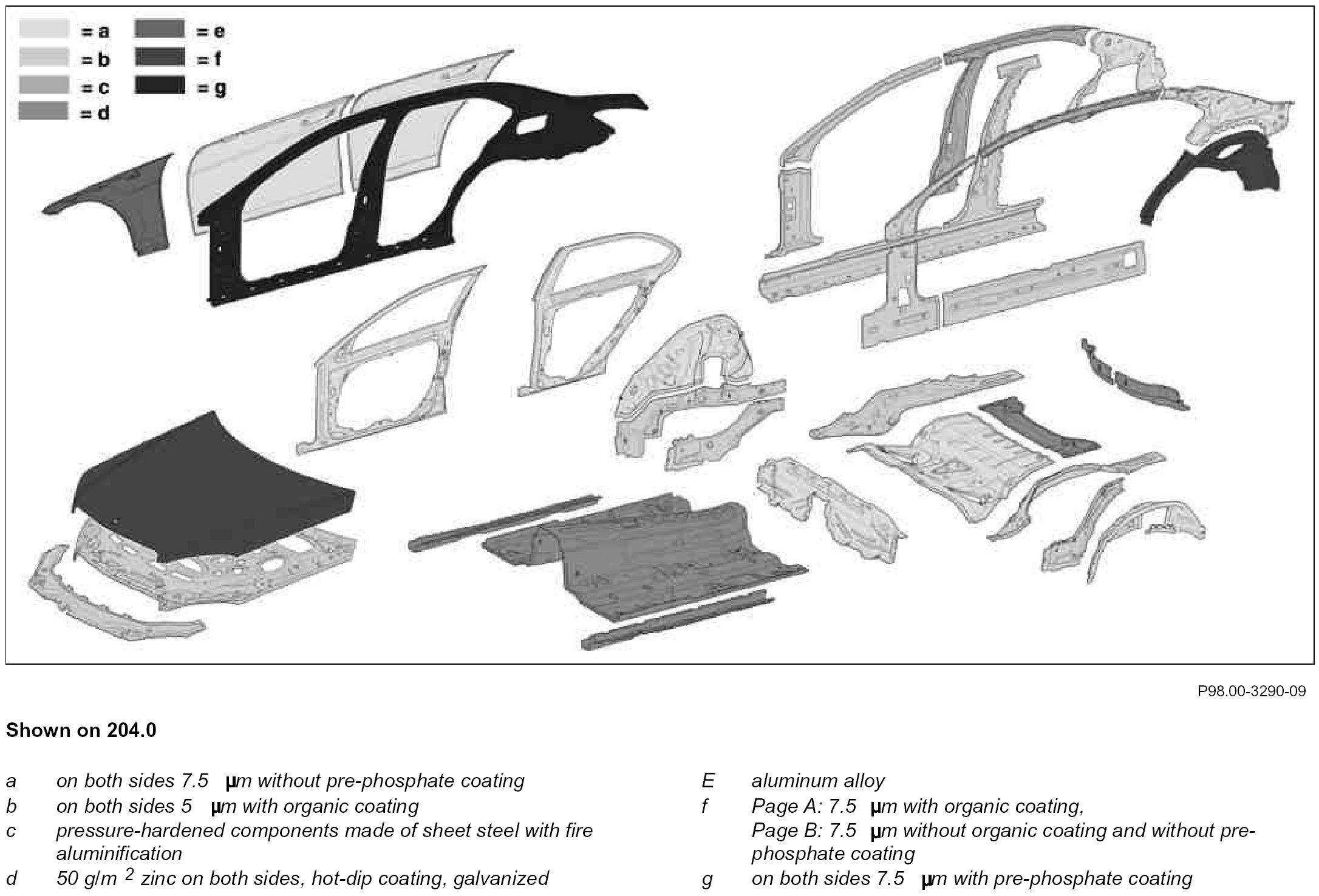

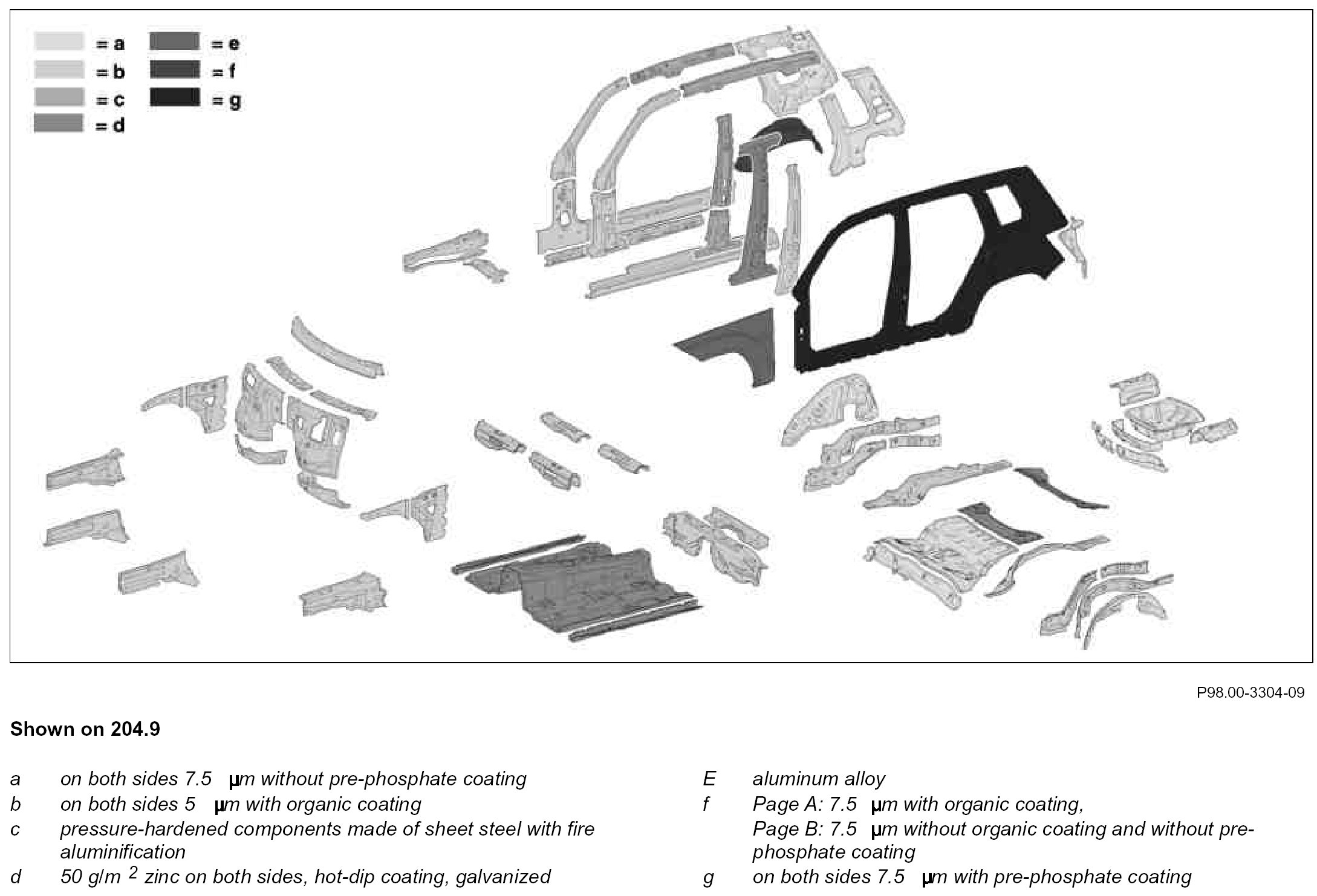

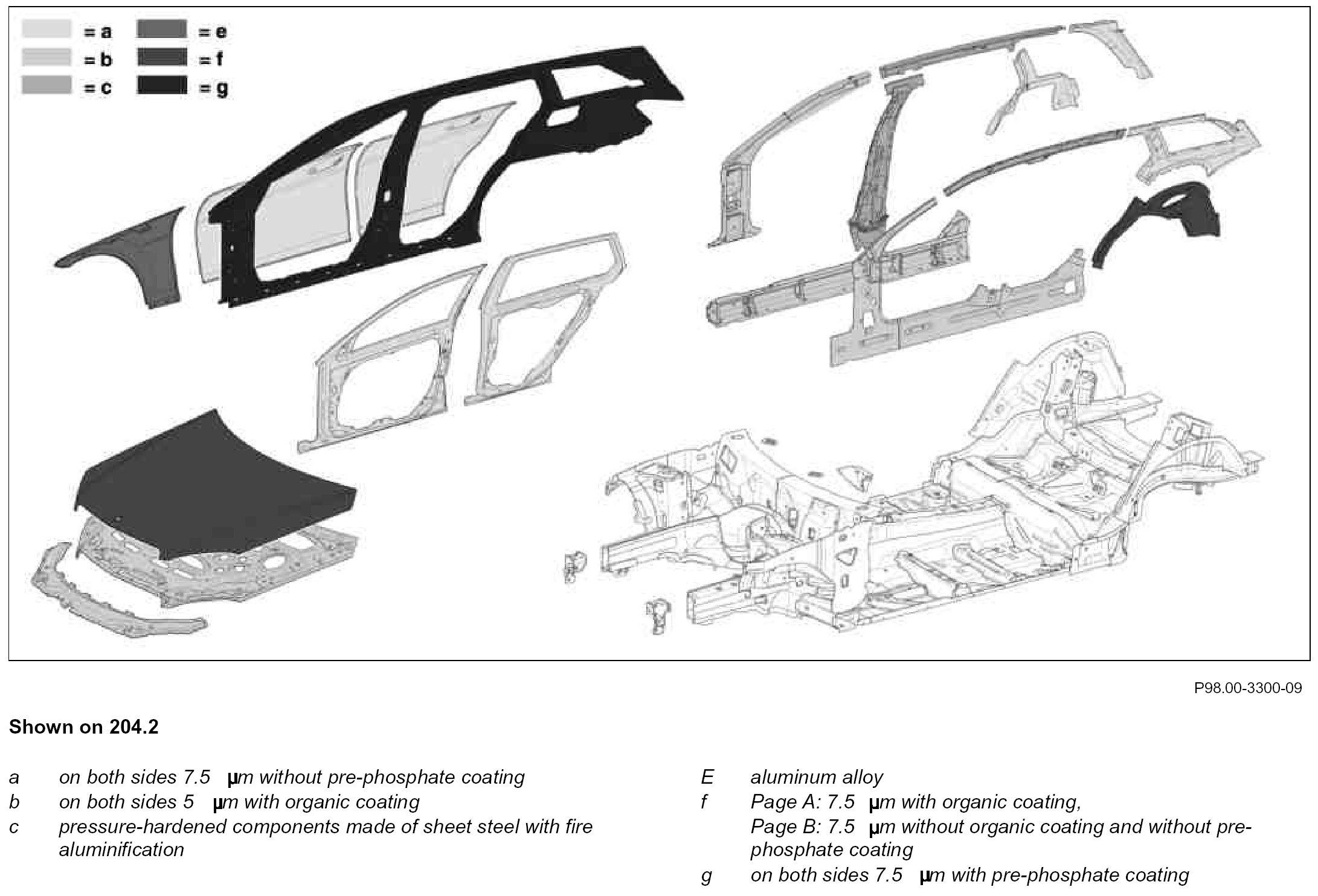

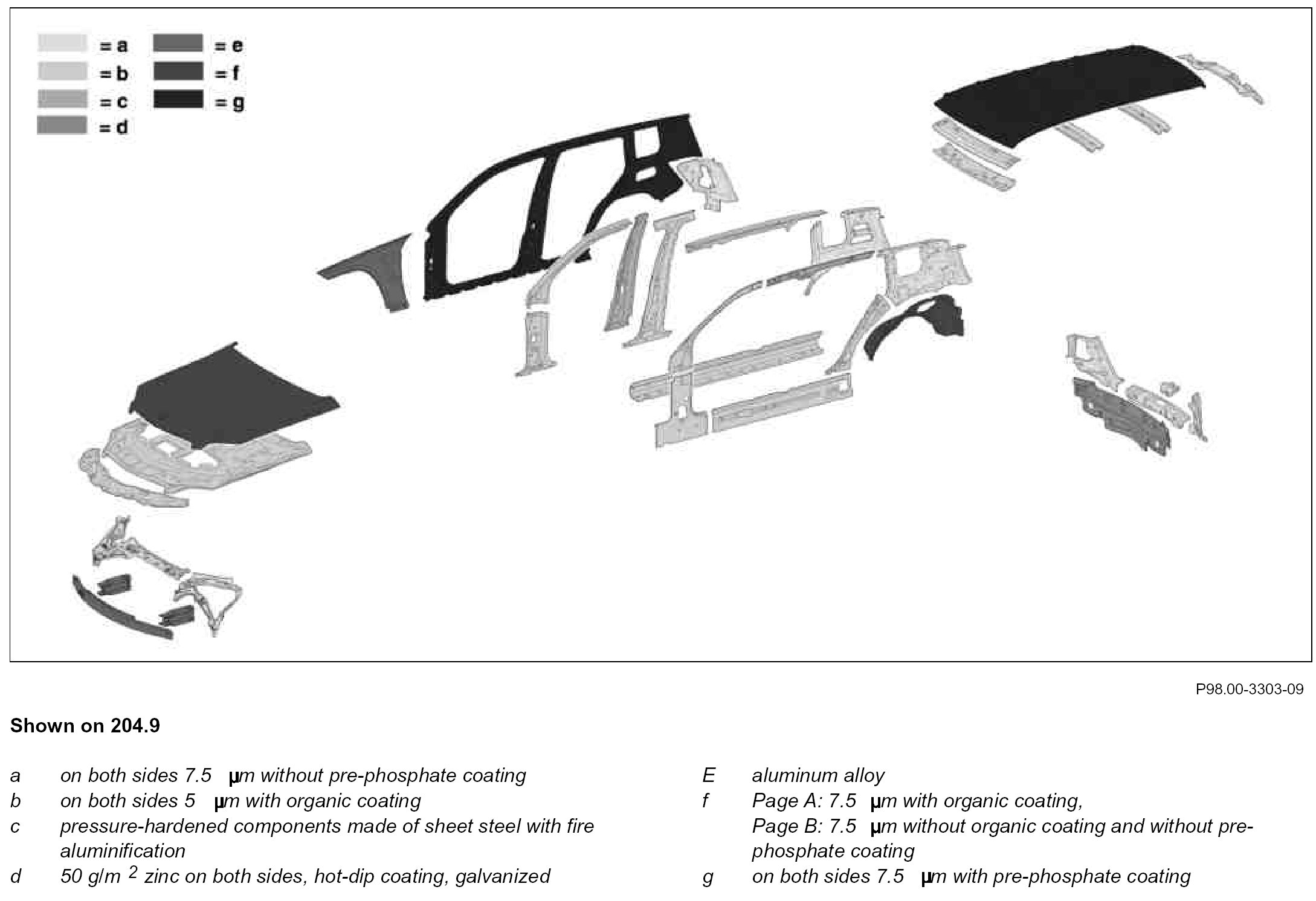

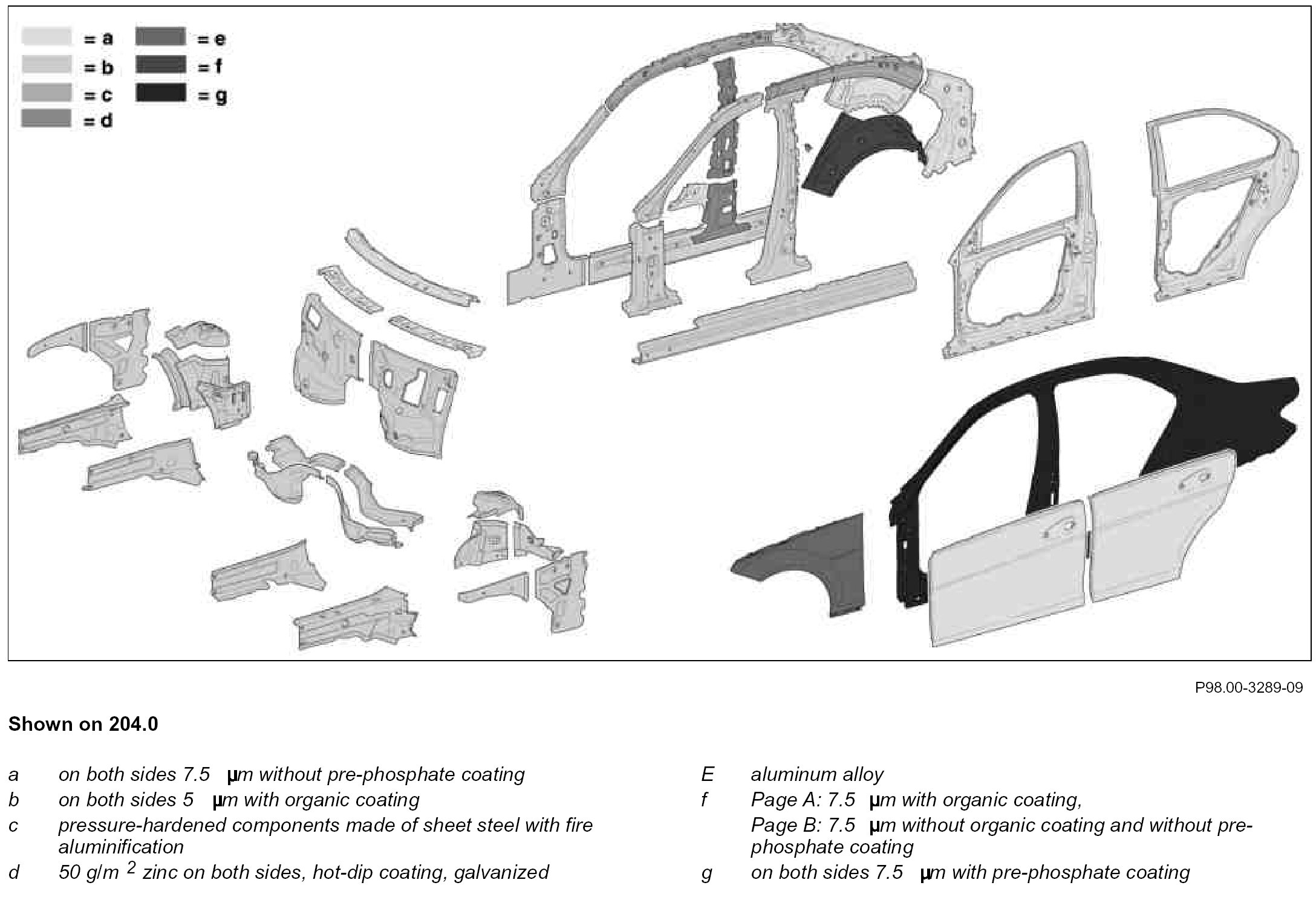

GF98.00-P-4080CW Overview of Galvanization



GF98.00-P-4080CW Overview Of Galvanization


Component Identification:





Component Identification:





Component Identification:





Component Identification:





Component Identification:





Component Identification:





Component Identification:





Component Identification:
