Home >> Mercedes Benz >> 2009 >> C 300 4MATIC (204.081) V6-3.0L (272.948) >> Repair and Diagnosis >> Body and Frame >> Frame >> Trailer Hitch >> Testing and Inspection >> AP31.11-P-3152CW Check Condition and Operation of Trailer Hitch

AP31.11-P-3152CW Check Condition and Operation of Trailer Hitch



AP31.11-P-3152CW Check Condition And Operation Of Trailer Hitch
- with CODE (550) Trailer hitch

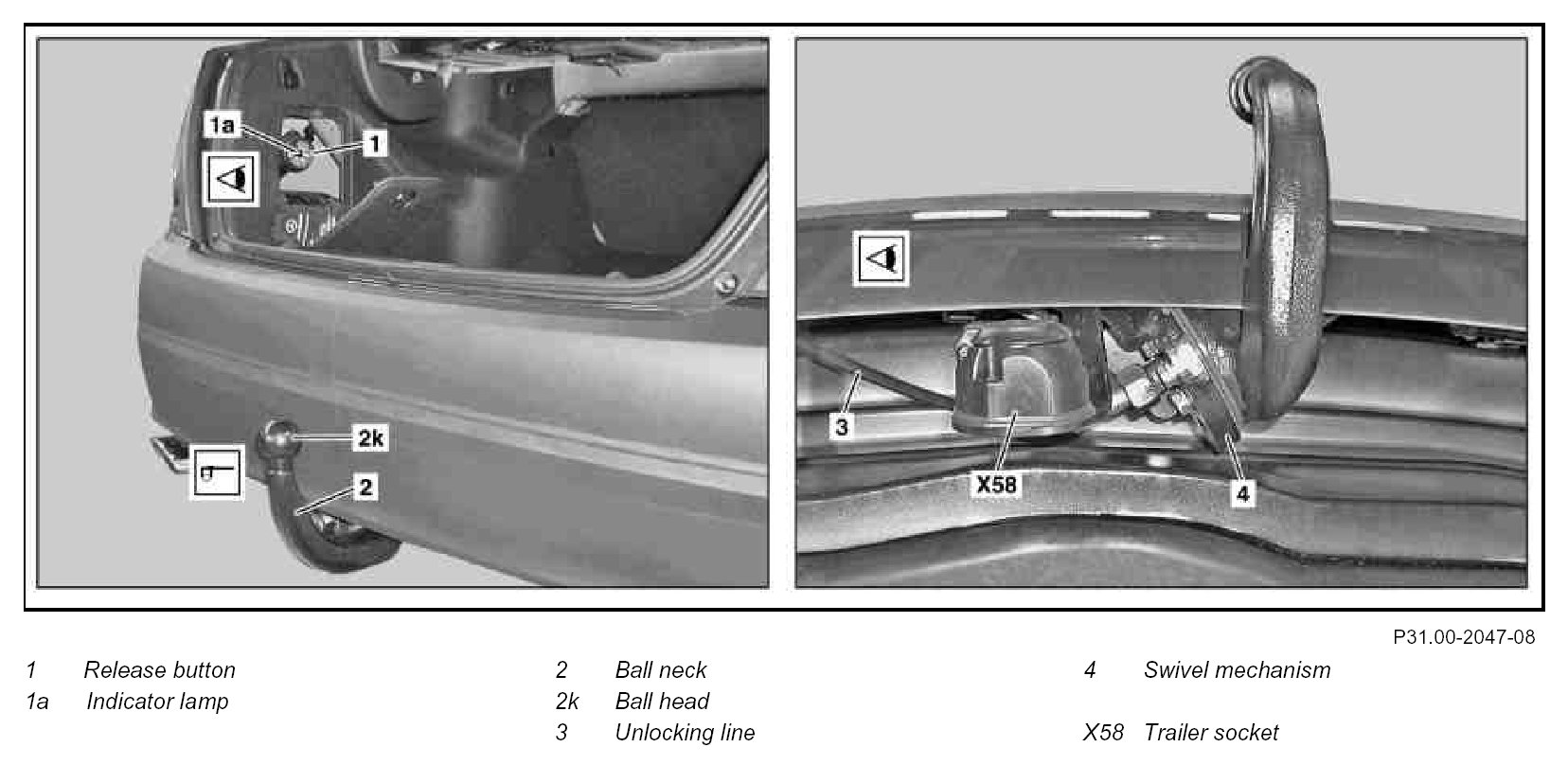

Component Identification:

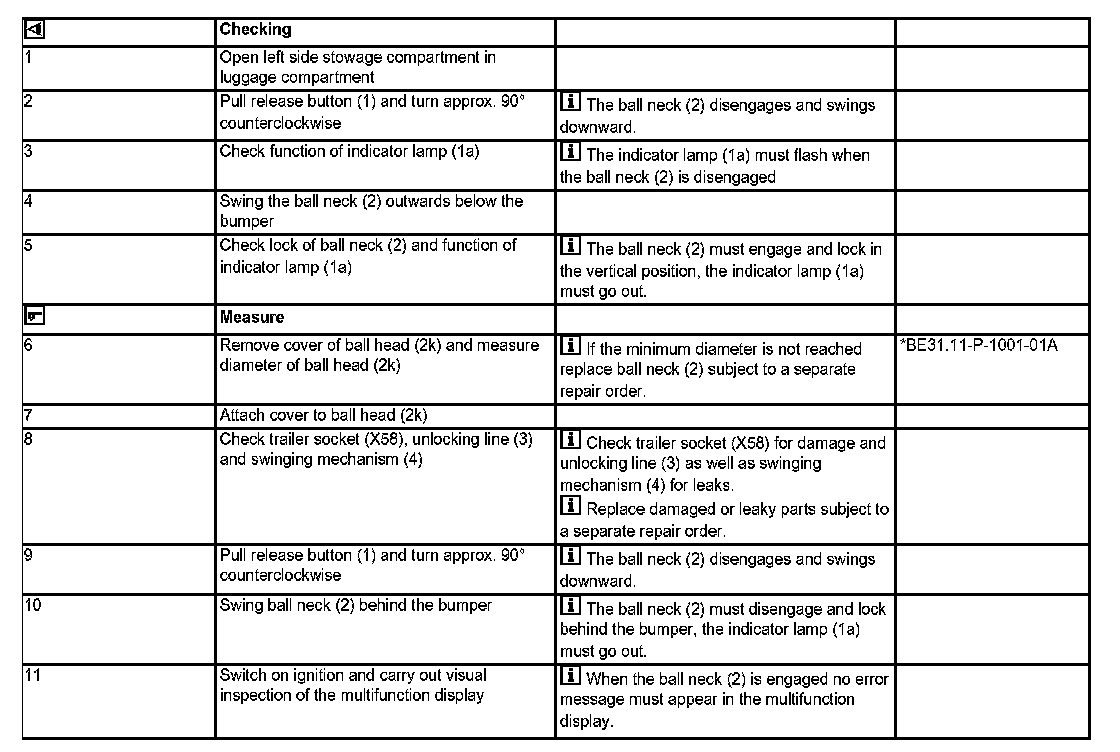

Steps 1 - 11:

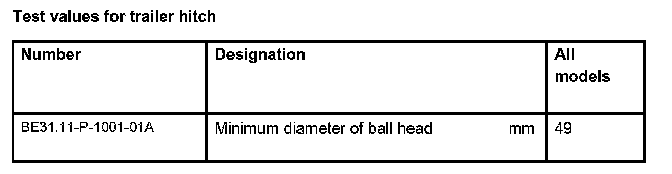

Test Values For Trailer Hitch:
