Home >> Mercedes Benz >> 2008 >> SLK 280 (171.454) V6-3.0L (272.942) >> Repair and Diagnosis >> Wiper and Washer Systems >> Description and Operation >> GF82.15-P-2100SK Telescopic Nozzle For Headlamp Cleaning System, Location/Task/Design/Function

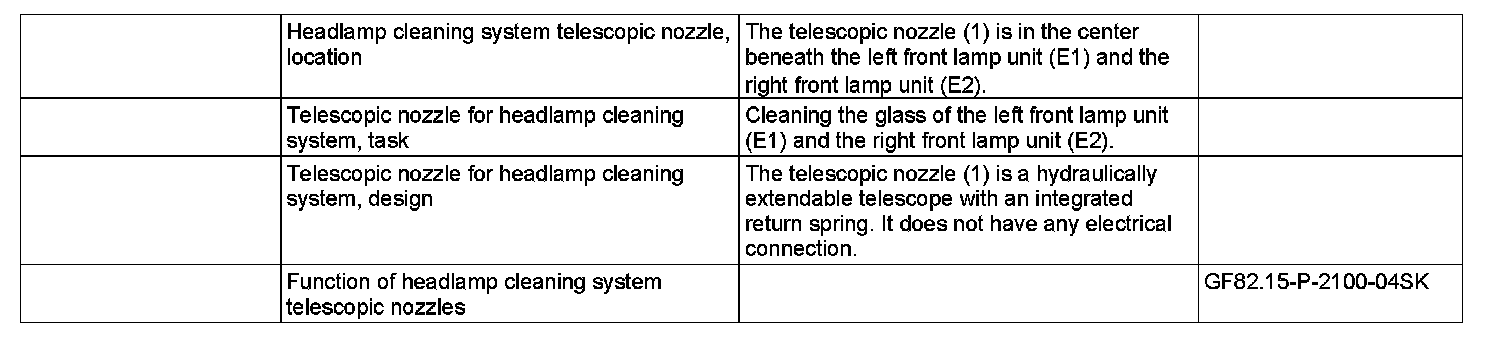

GF82.15-P-2100SK Telescopic Nozzle For Headlamp Cleaning System, Location/Task/Design/Function



GF82.15-P-2100SK Telescopic Nozzle For Headlamp Cleaning System, Location/Task/Design/Function
- with CODE (600) Headlamp cleaning system

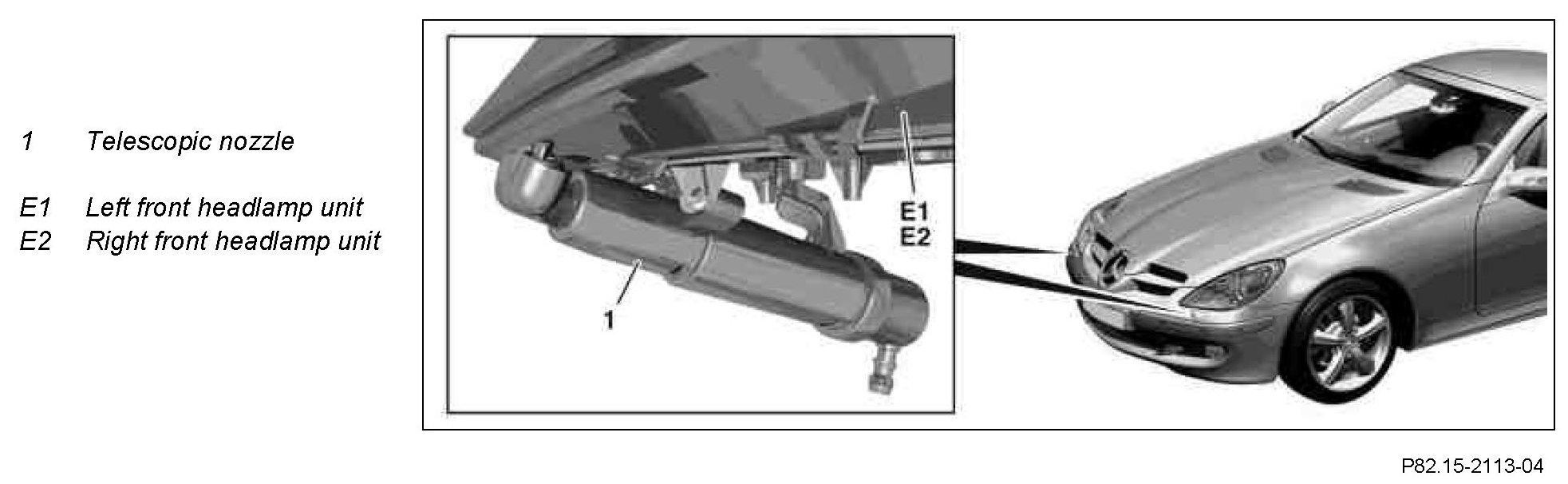

Component Identification:
