GF54.15-P-1257-04SK Fuse Assignment of Fuse and Relay Box In Trunk



GF54.15-P-1257-04SK Fuse Assignment of Fuse and Relay Box In Trunk

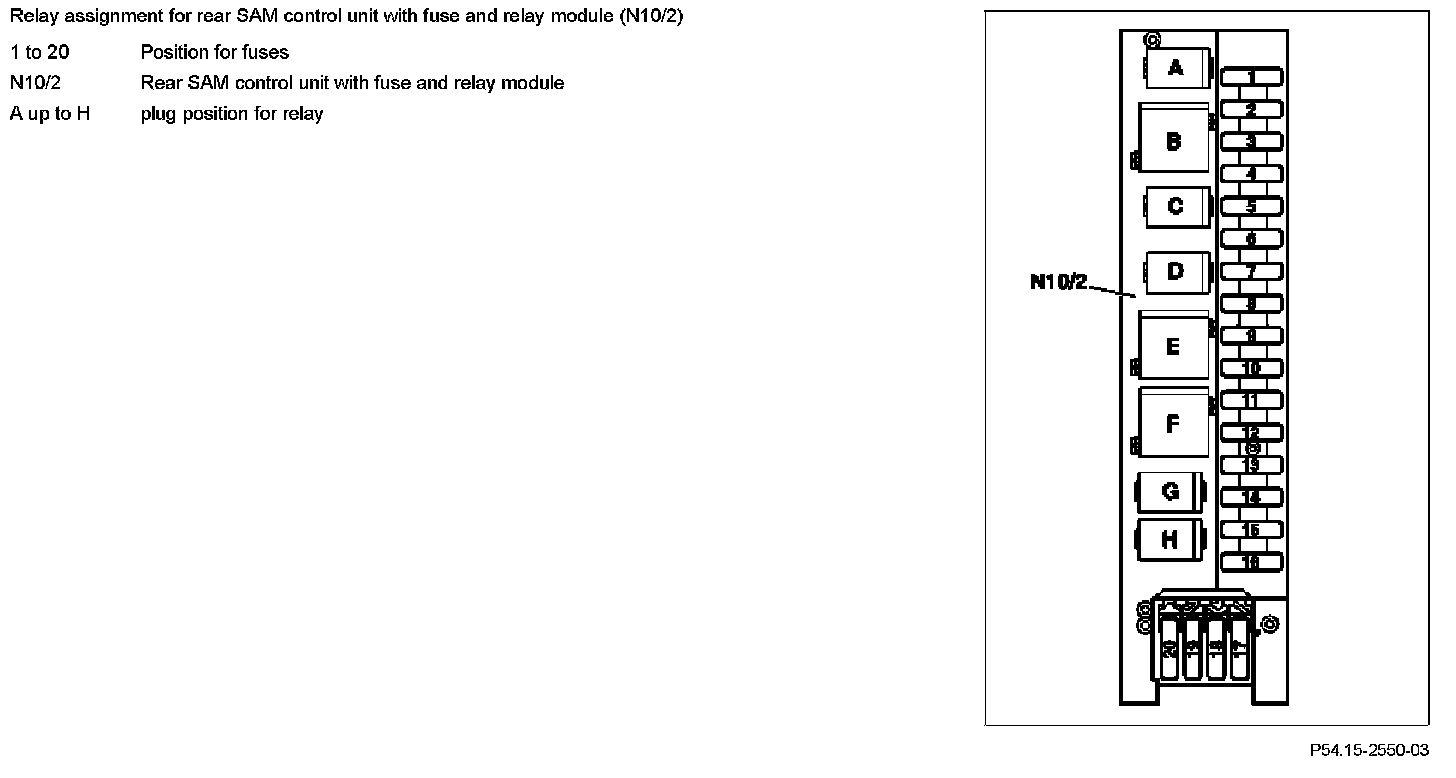

Relay Assignment For Rear SAM Control Unit With Fuse And Relay Module (N10/2):

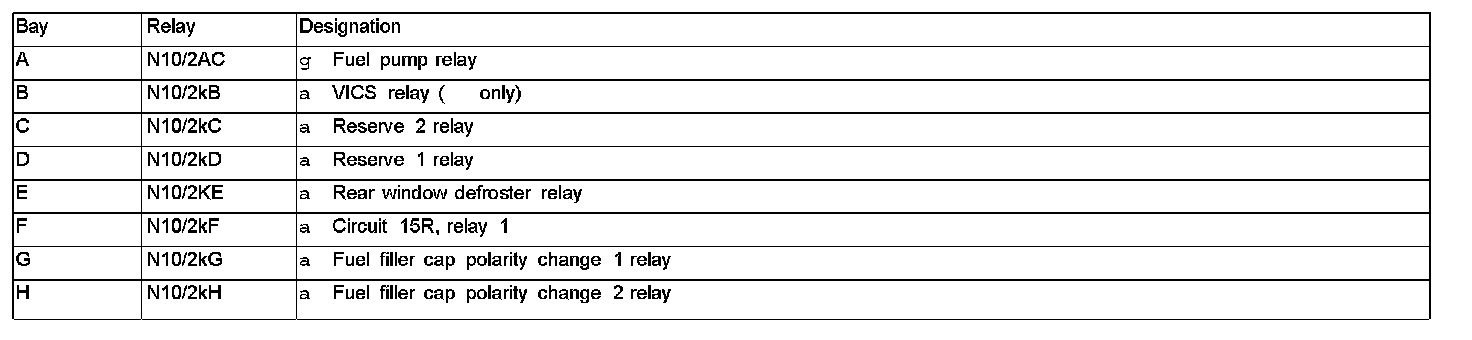

Relay N10/2AC - N10/2kH:
