GF54.15-P-1256-06SK Fuse Assignment of Fuse and Relay Box In Trunk



GF54.15-P-1256-06SK Fuse Assignment of Fuse and Relay Box In Trunk

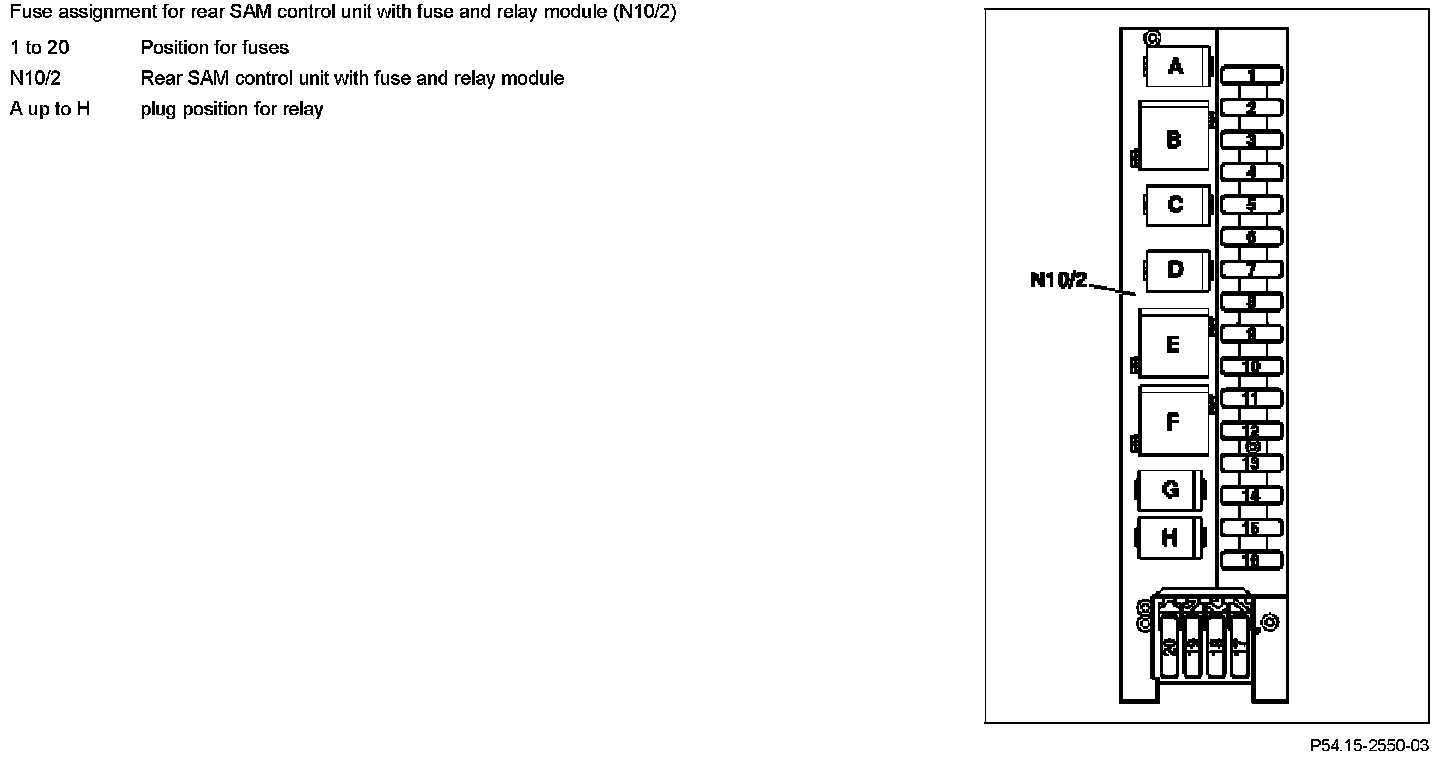

Fuse Assignment For Rear SAM Control Unit With Fuse And Relay Module (N10/2):

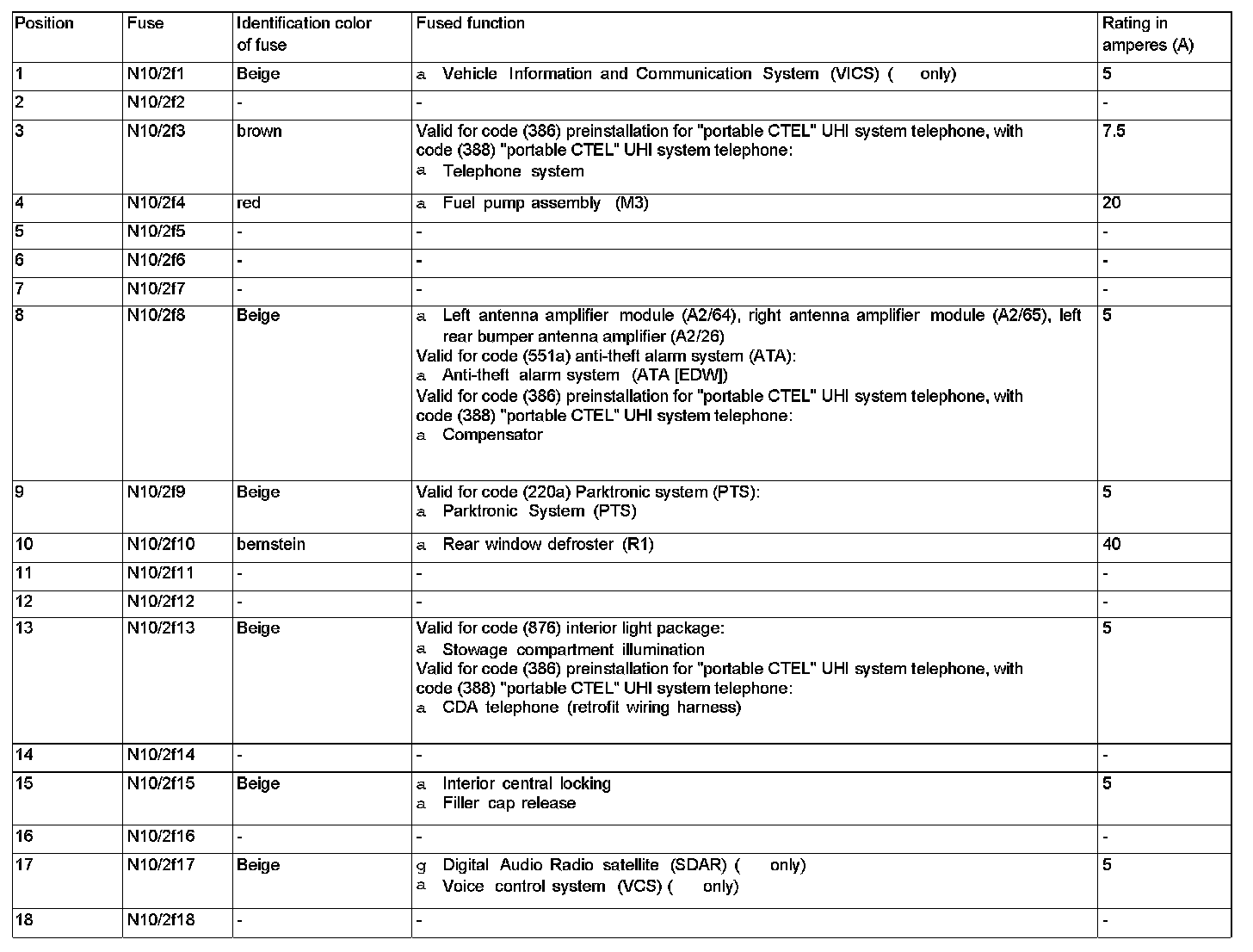

Fuse N10/2f1 - N10/2f18:




Fuse N10/2f19 - N10/2f20:
