GF54.15-P-1256-04SK Fuse Assignment of Fuse Box In Interior Compartment on Driver's Side



GF54.15-P-1256-04SK Fuse Assignment of Fuse Box In Interior Compartment on Driver's Side

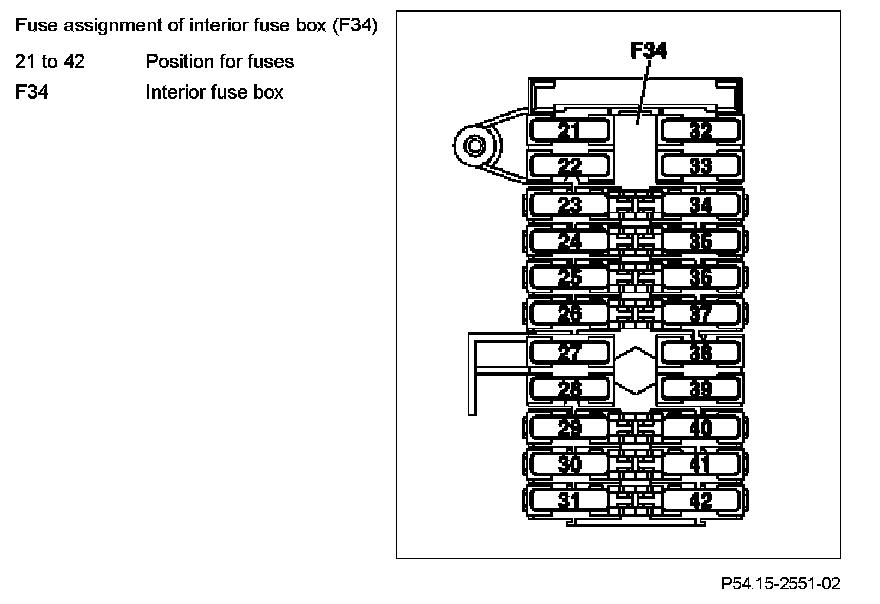

Fuse Assignment Of Interior Fuse Box (F34):

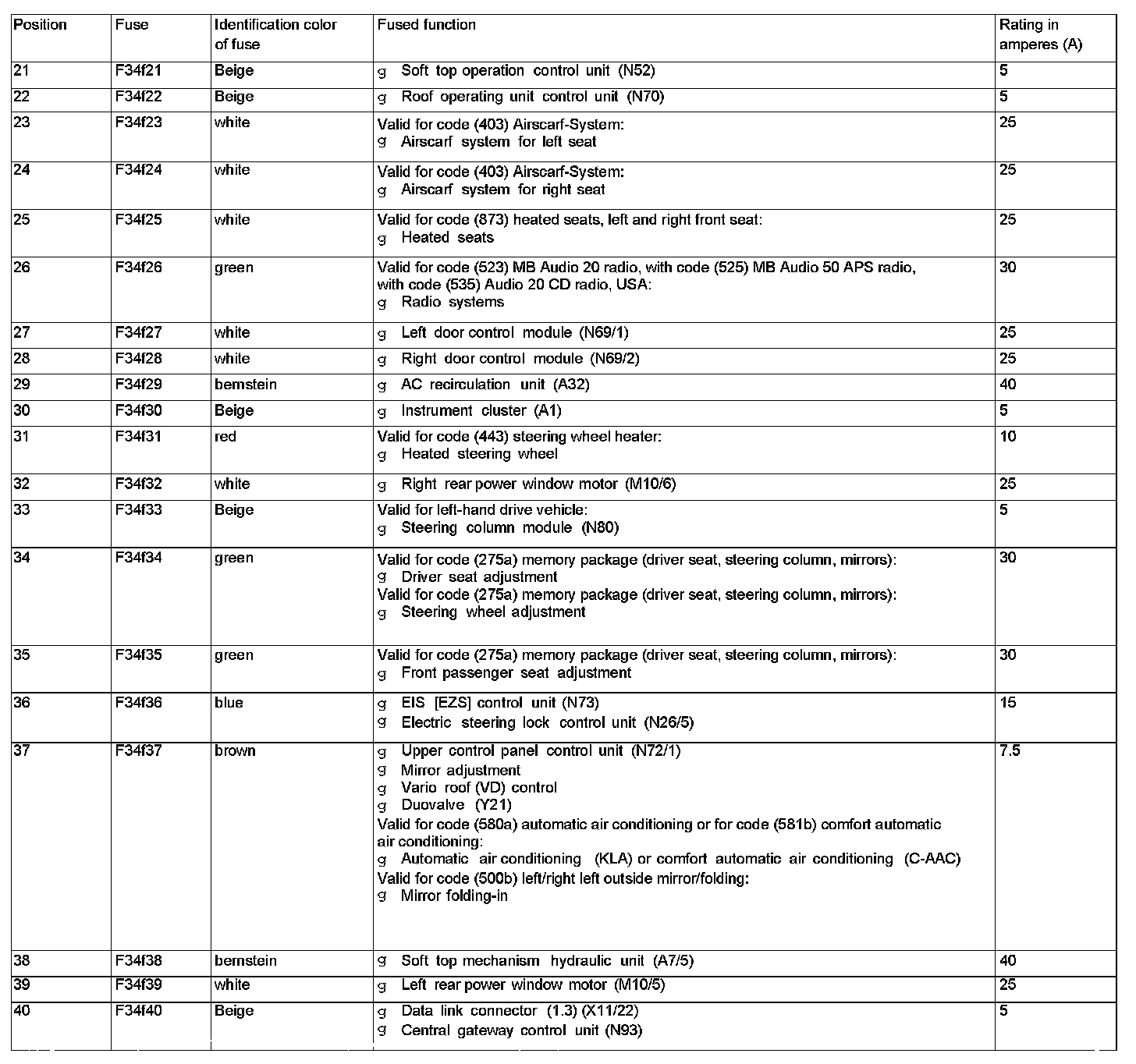

Fuse F34f21 - F34f40:

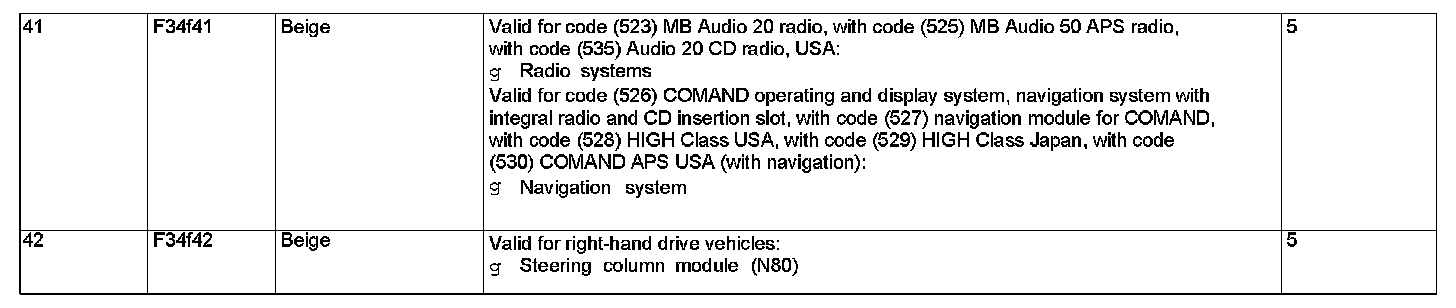

Fuse F34f41 - F34f42:
