GF54.15-P-1256-03SK Fuse Assignment of Fuse and Relay In Engine Compartment, Left



GF54.15-P-1256-03SK Fuse Assignment of Fuse and Relay In Engine Compartment, Left

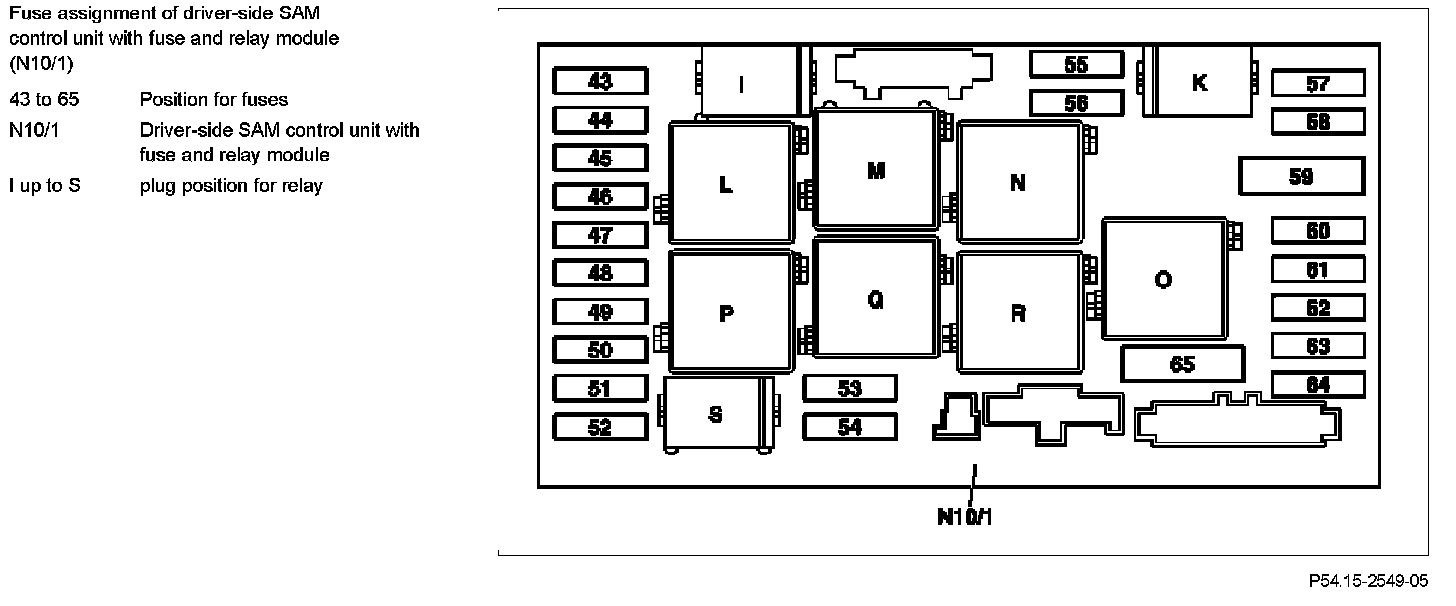

Fuse Assignment:

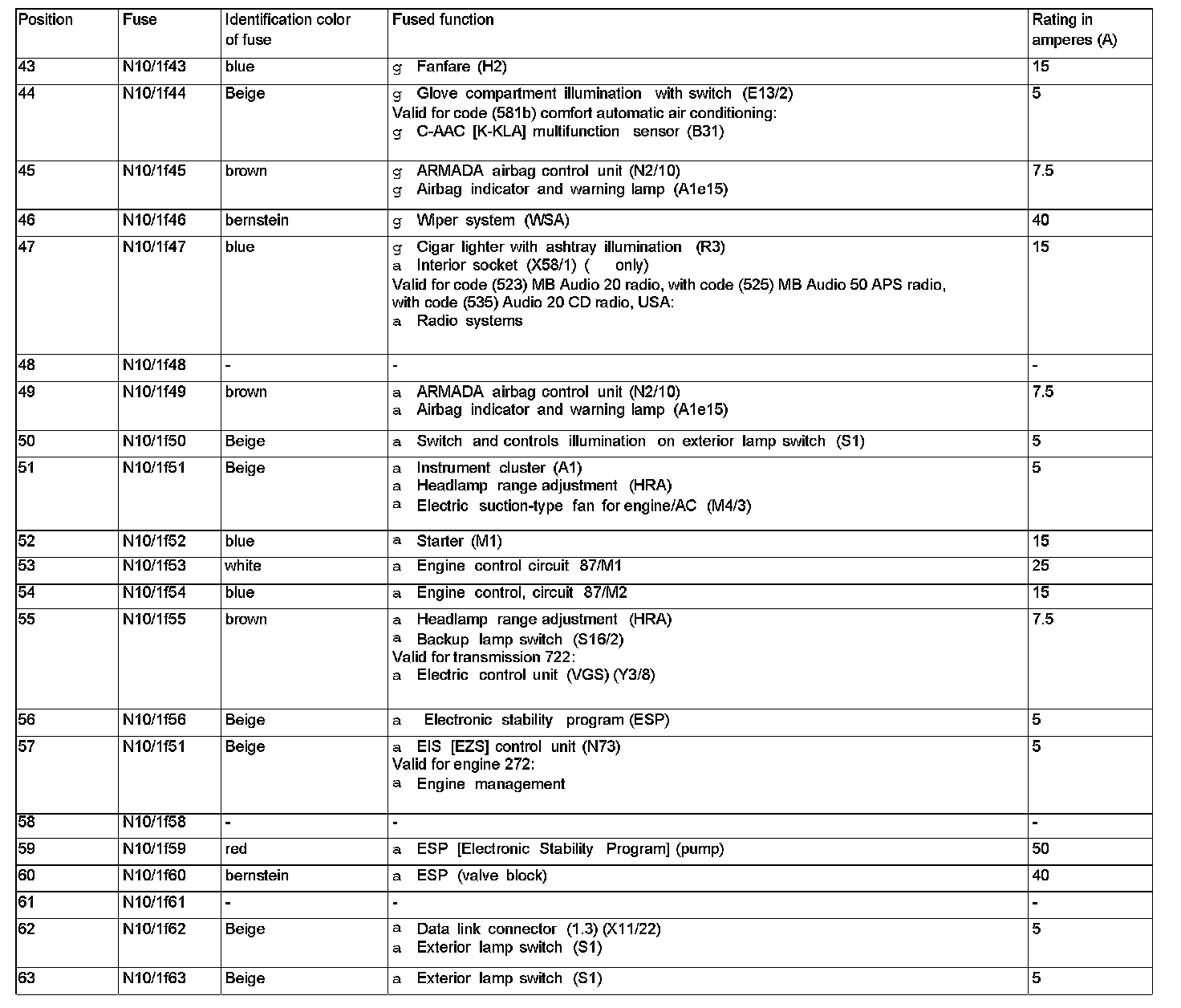

Fuse N10/1f43 - N10/1f63:

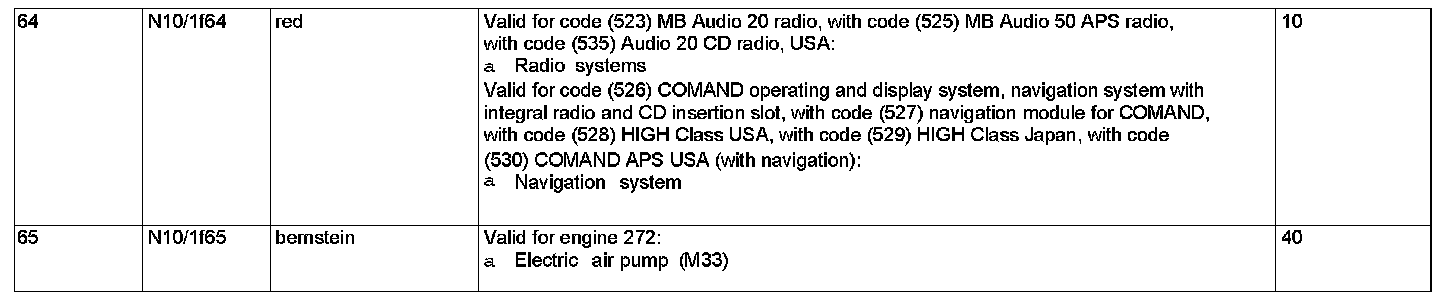

Fuse N10/1f64 - N10/1f65:
