Home >> Mercedes Benz >> 2008 >> SLK 280 (171.454) V6-3.0L (272.942) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Humidity Sensor >> Description and Operation >> GF83.30-P-2121SK Dewpoint Sensor, Location / Task / Design / Function

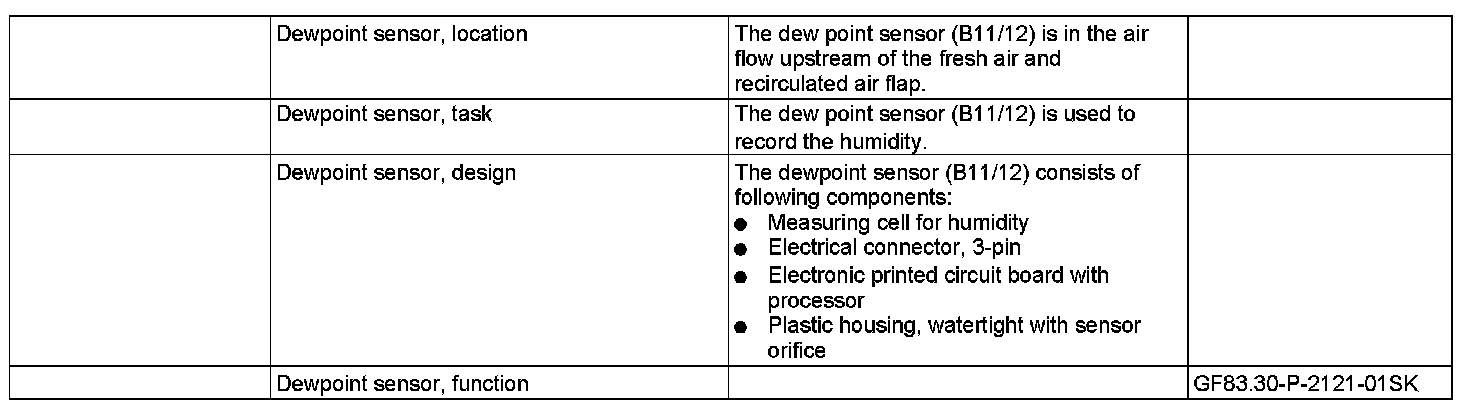

GF83.30-P-2121SK Dewpoint Sensor, Location / Task / Design / Function



GF83.30-P-2121SK Dewpoint Sensor, Location / Task / Design / Function
- with CODE (580) Automatic air conditioning

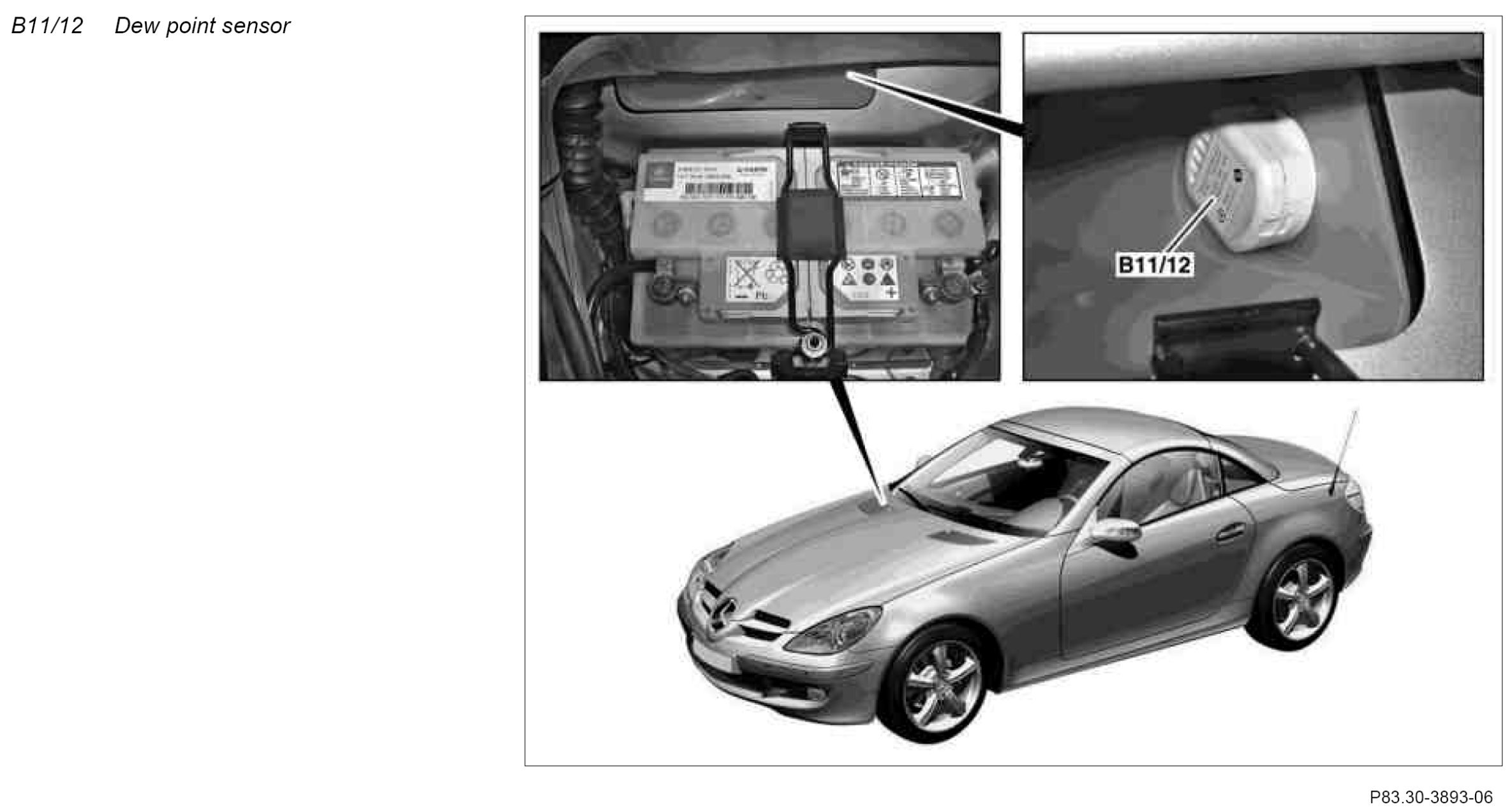

Component Identification:
