Ambient Temperature Sensor / Switch HVAC: Description and Operation

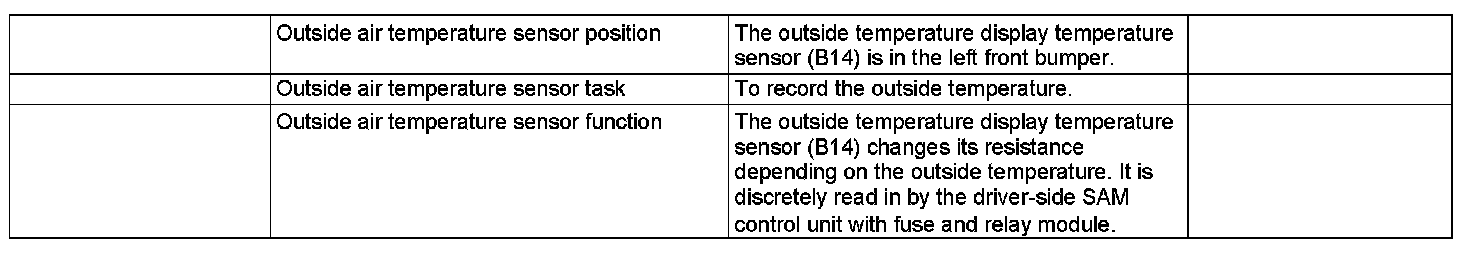

GF83.57-P-2110SK Outside Temperature Sensor, Location/task/function

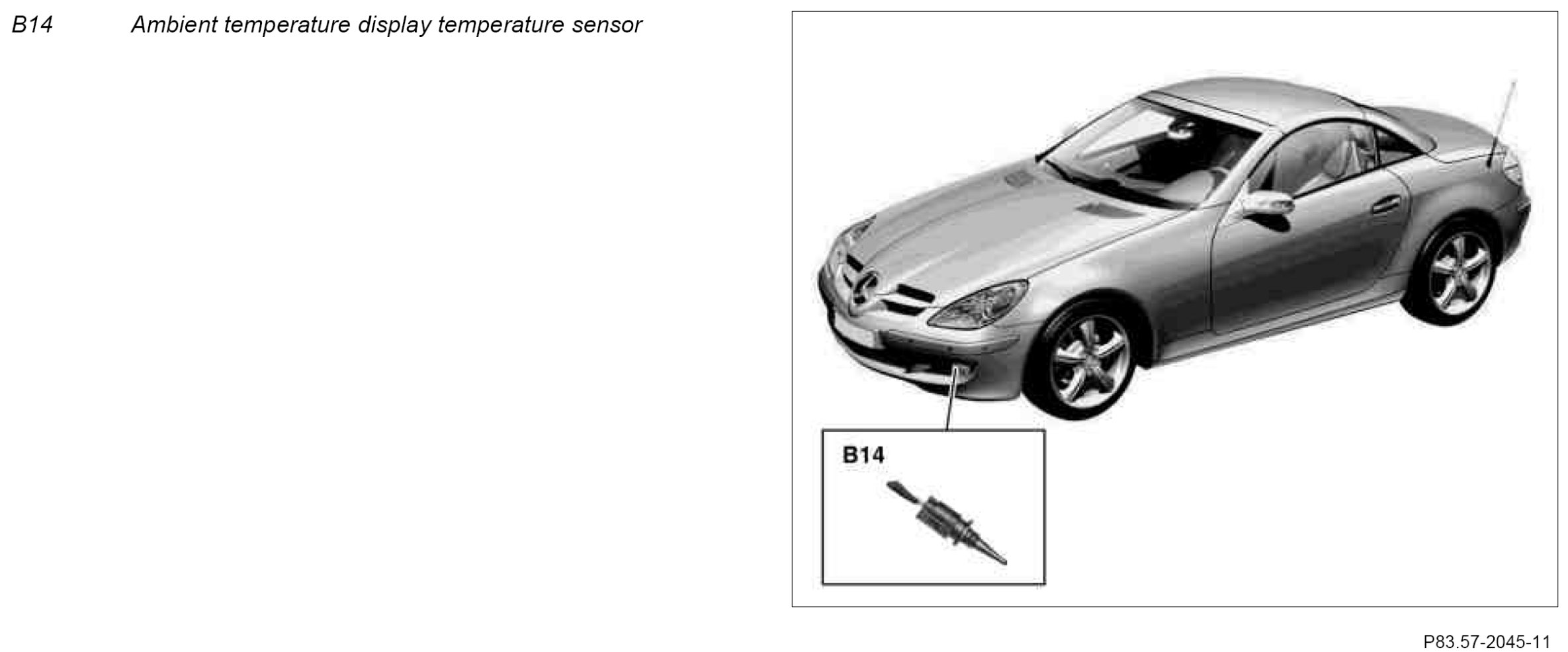

Component Identification:
