Mercedes Benz
>>
2008
>>
SLK 280 (171.454) V6-3.0L (272.942)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Body and Frame
>>
Power Mirror Switch
>>
Description and Operation
Power Mirror Switch: Description and Operation

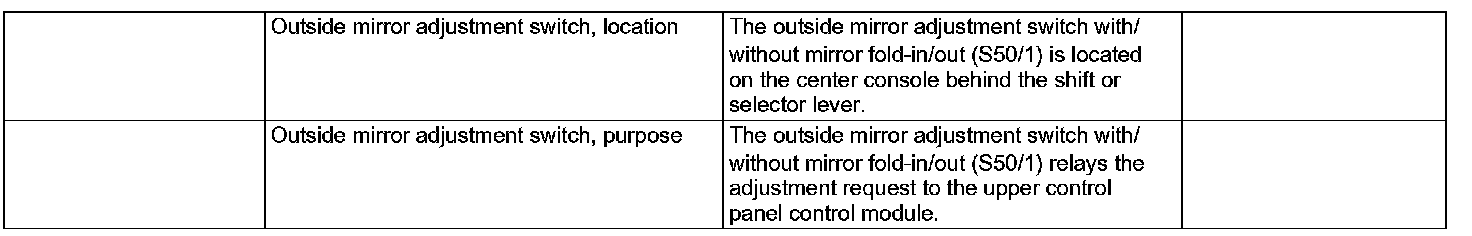

GF88.79-P-3001SK Outside Mirror Adjustment Switch, Location/Task
- up to model year 08

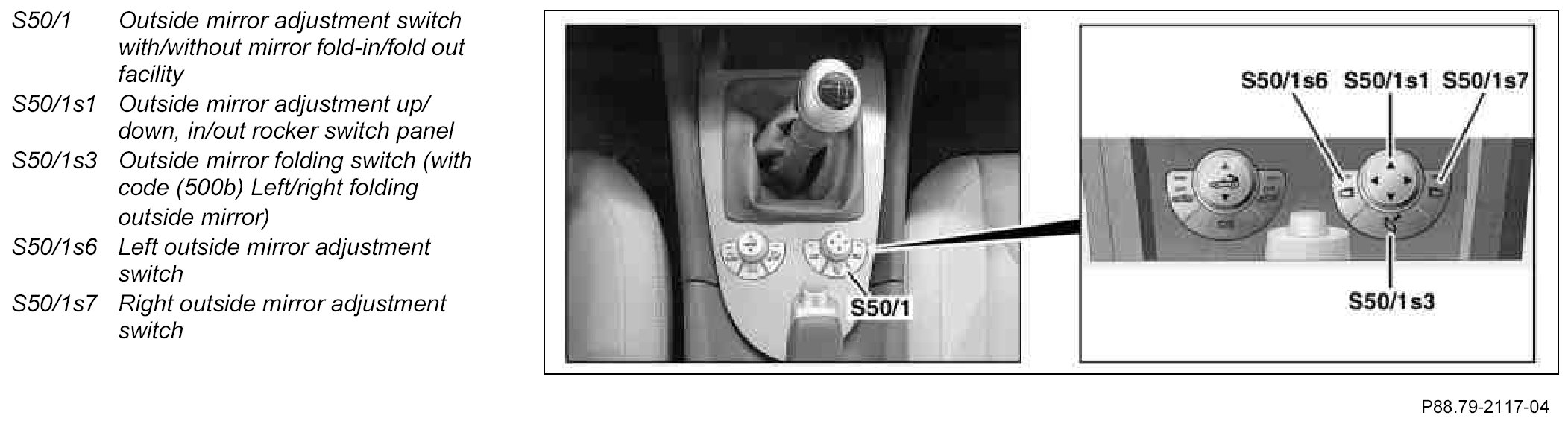

Component Identification:
