AR54.25-P-2840V Remove/Install Button Unit on Multifunction Steering Wheel



AR54.25-P-2840V Remove/Install Button Unit on Multifunction Steering Wheel

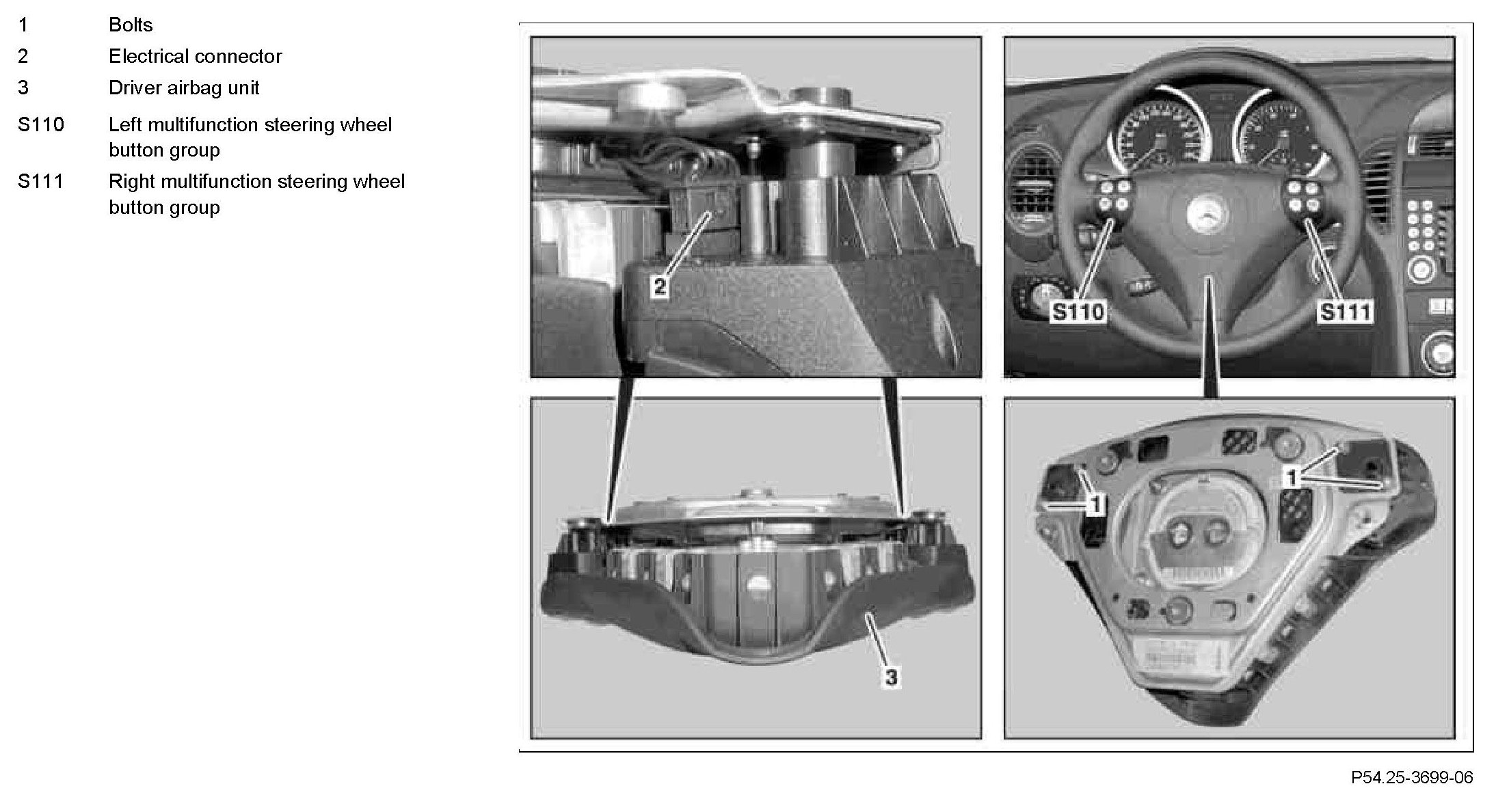

Component Identification:

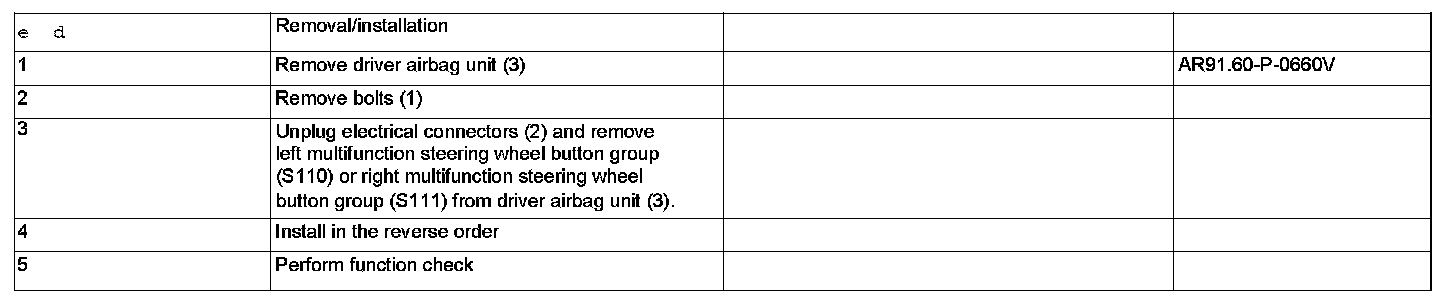

Steps 1 - 5:
