Air Injection Pump Relay: Locations



AIR Pump Relay

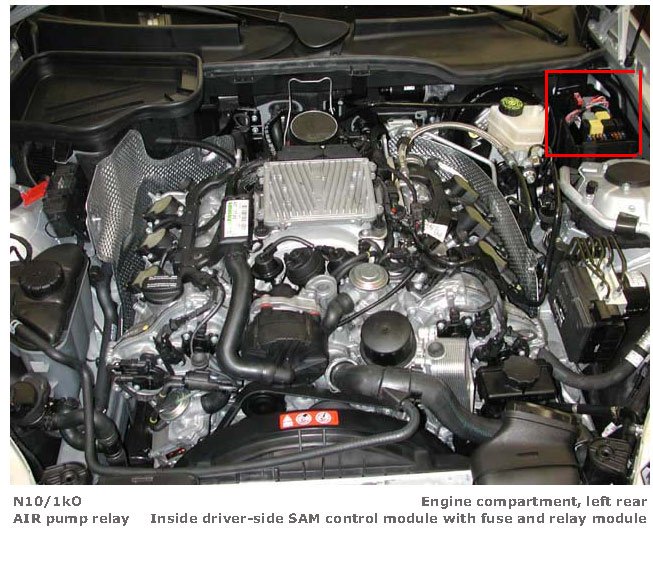

AIR Pump Relay (View 1):

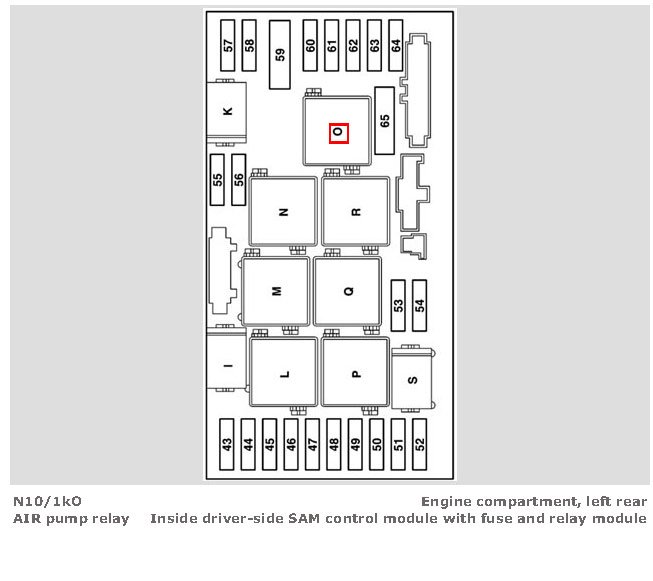

AIR Pump Relay (View 2):
