AR49.10-P-5500VA Remove/Install Right Catalytic Converter

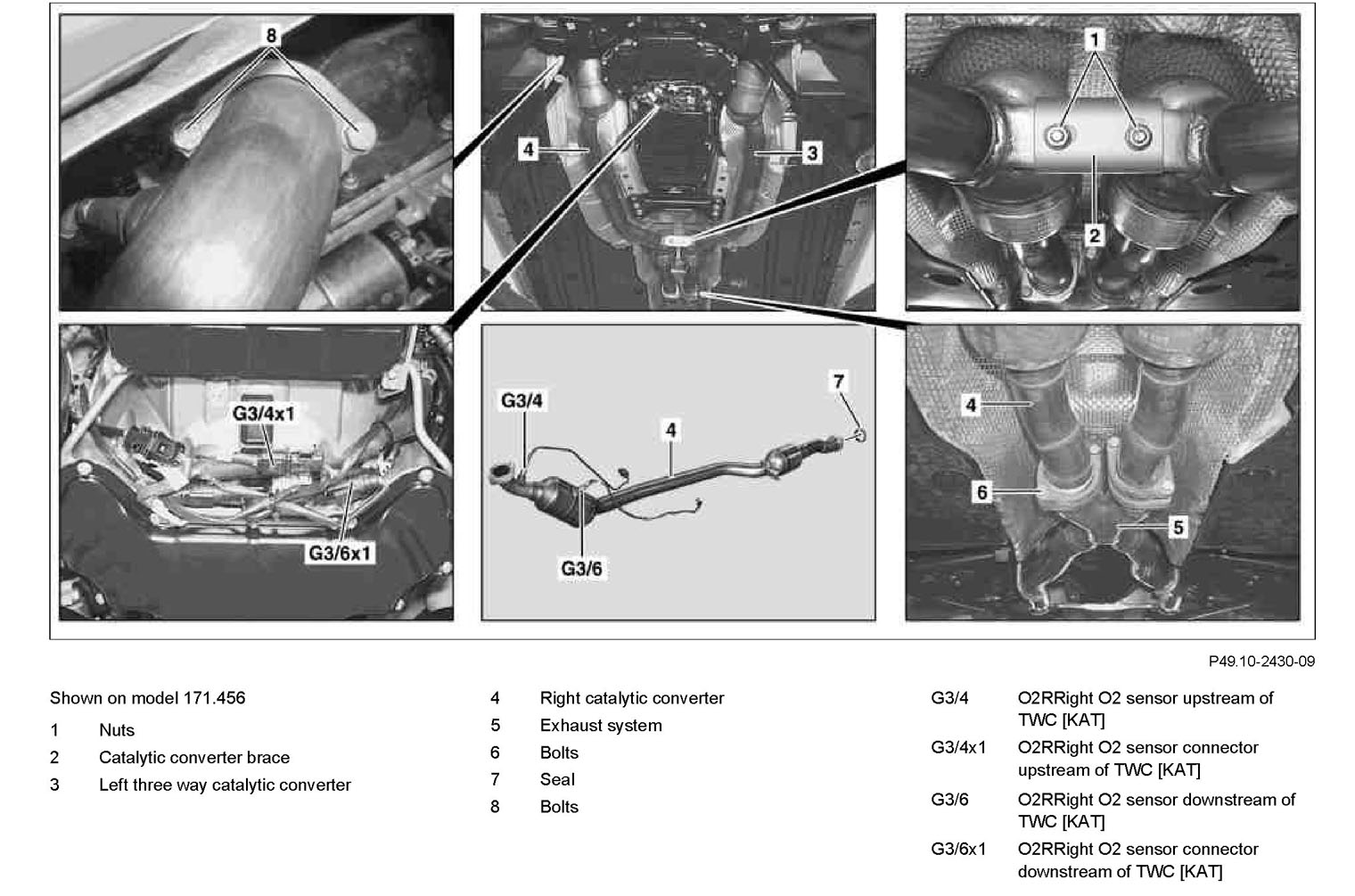

Component Identification:

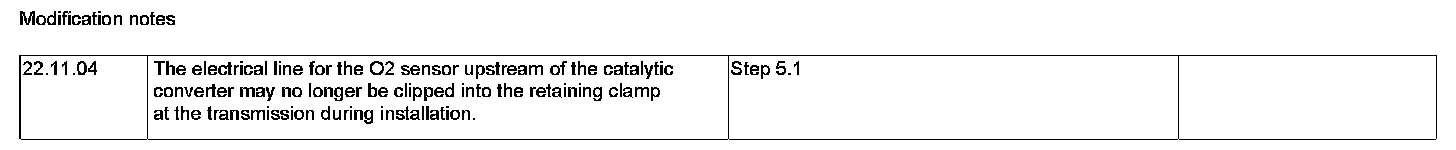

Modification Notes:

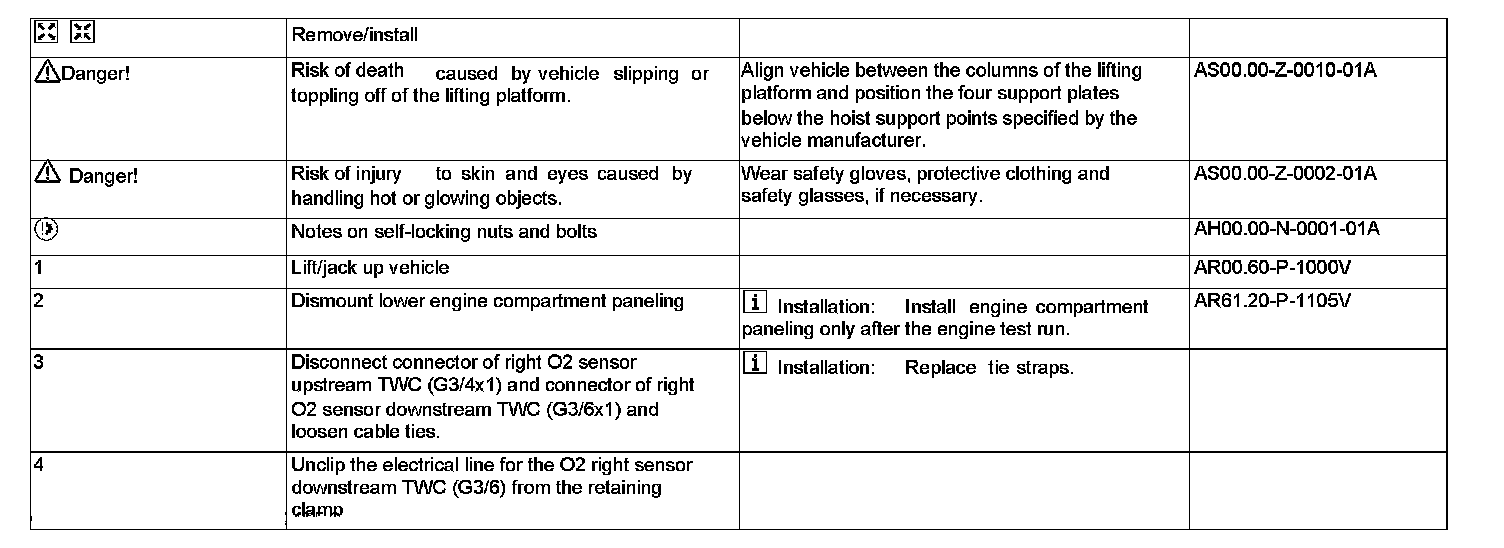

Steps 1-4:

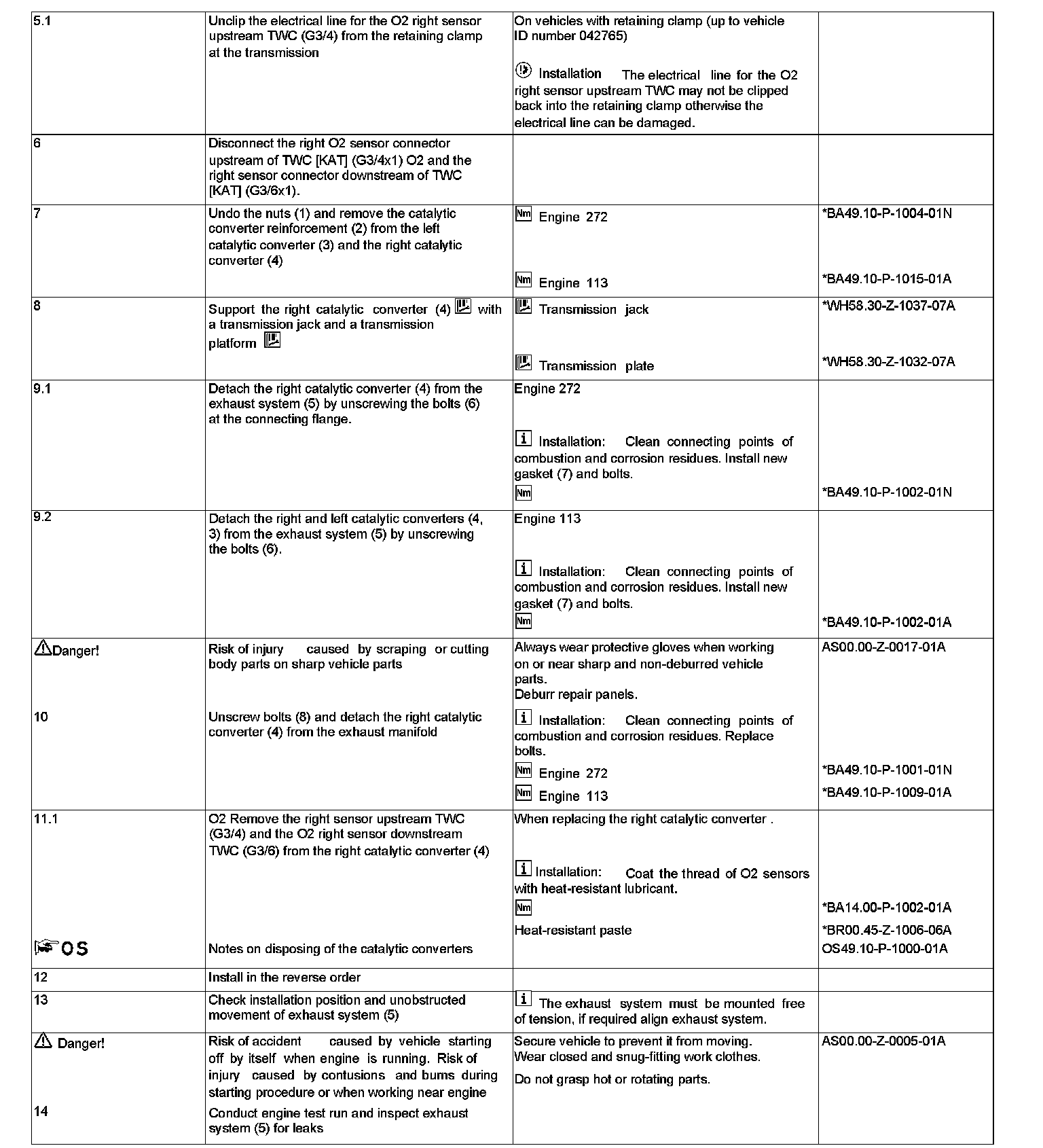

Steps 5.1-14:

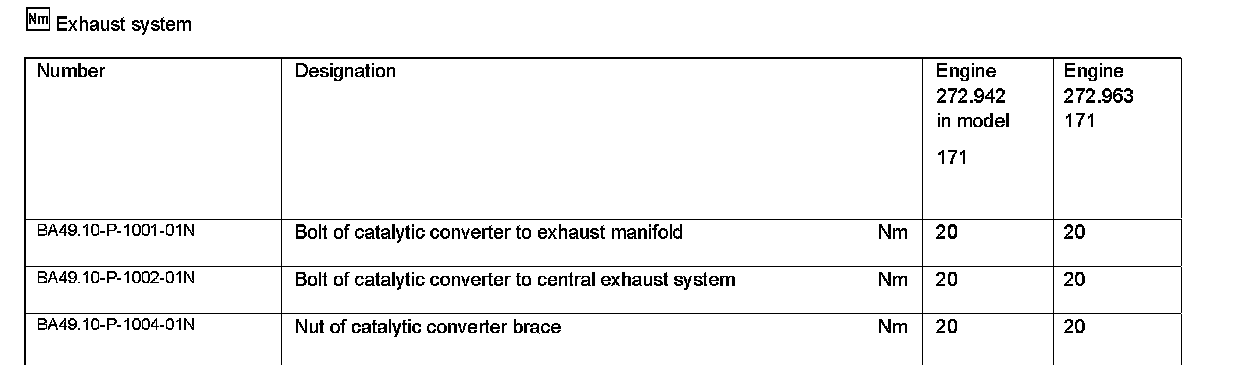

Exhaust System:

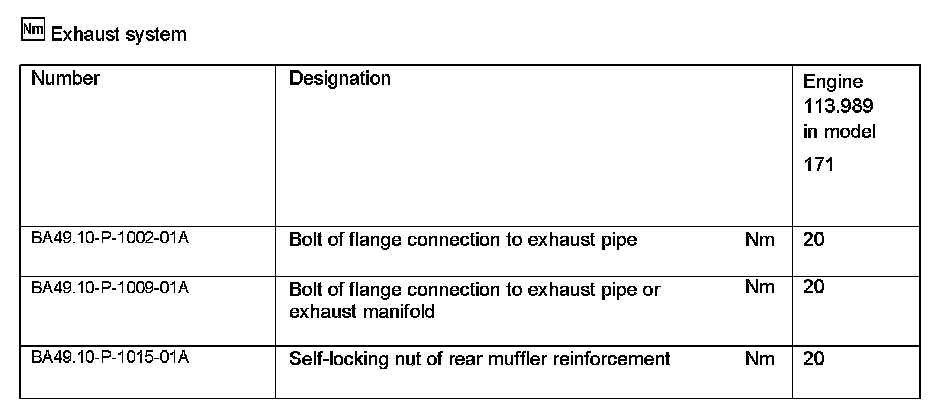

Exhaust System:

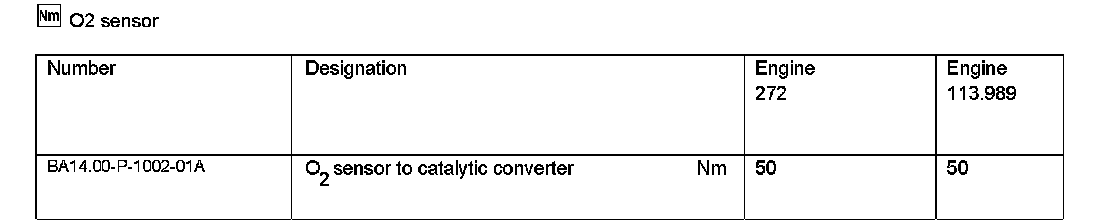

O2 Sensor:

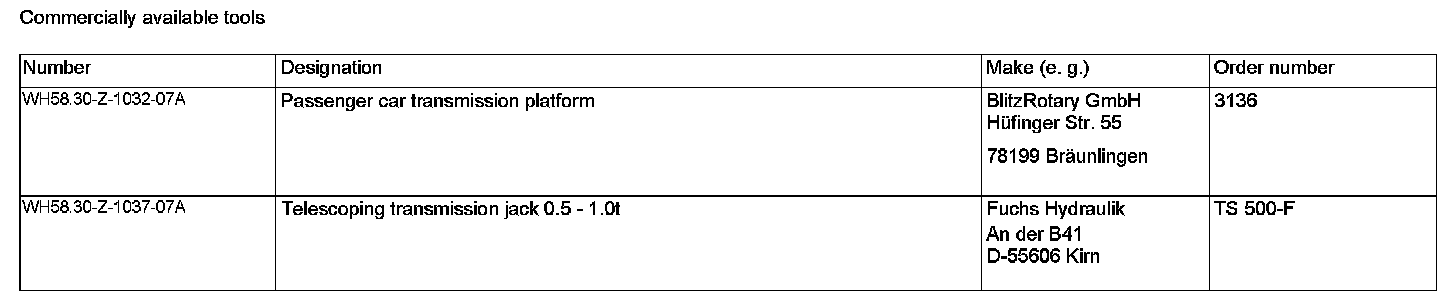

Commercially Available Tools:

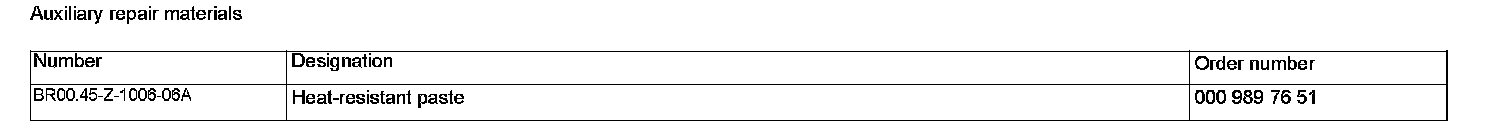

Uxiliary Repair Materials:
