GF00.19-P-0001-02SK Overall Network (GVN), Networking of Components

GF00.19-P-0001-02SK Overall Network (GVN), Networking Of Components

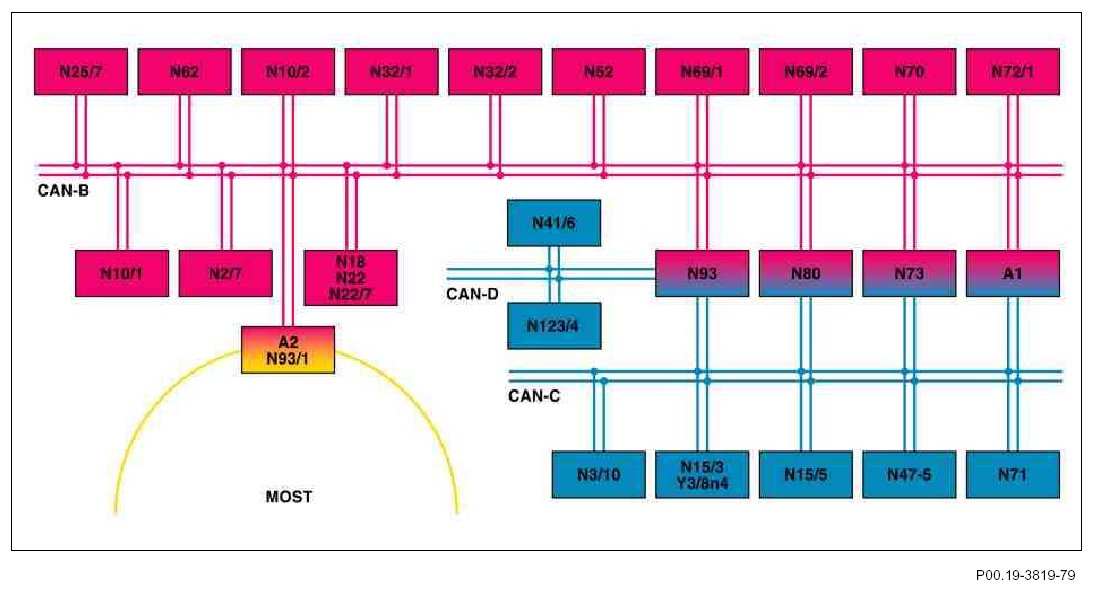

Networking of Controller Area Network (data bus/CAN bus) (CAN)







A1 Instrument cluster
A2 Radio (with code (523) MB Audio 20 radio or code (535) Audio 20 CD radio, USA)
N2/7 Restraint systems control unit
N3/10 ME control unit
N10/1 Driver-side SAM control unit with fuse and relay module
N10/2 Rear SAM control unit with fuse and relay module
N15/3 ETC control unit (with transmission 722.6)
N15/5 Electronic selector lever module control unit (with transmission 722)
N18 HEAT control and operating unit (without code (580) Automatic air conditioning and without code (581) Comfort automatic air conditioning)
N22 AC control and operating unit (with code (580) Automatic air conditioning)
N22/7 Comfort AC control and operating unit (with code (581) Comfort automatic air conditioning)
N25/7 Front HS [SIH], AIRSCARF and steering wheel heater control unit (with code (403) AIRSCARF system, with code (443) Steering wheel heater or with code (873) Right and left front seat heaters)
N32/1 Driver front seat adjustment control unit with memory (with code (275) Memory package (driver seat, steering column, mirrors))
N32/2 Passenger front seat adjustment control module with memory (with code (242) electrically adjustable passenger seat with memory)
N41/6 GPS box control unit (with code (529) HIGH Class Japan)
N47-5 ESP and BAS control unit
N52 Power soft top control unit
N62 PTS control unit (with code (220) Parktronic system (PTS))
N69/1 Left door control unit
N69/2 Right door control unit
N70 Overhead control panel control unit
N71 Headlamp range adjustment control unit (with code (614) Bi-xenon headlamp unit)
N72/1 Upper control panel control unit
N73 EIS [EZS] control unit
N80 Steering column module
N93 Central gateway control unit
N93/1 Audio gateway control unit (with code (525) MB Audio 50 APS radio, with code (527) COMAND APS (with navigation system), with code (529) HIGH Class Japan or with code (530) COMAND APS USA (with navigation system))
N123/4 Emergency call system control unit (with code (359) TELE AID emergency call system)
Y3/8n4 Fully integrated transmission control (VGS) control unit (with transmission 722.9)
CAN-B Controller Area Network bus class B (interior compartment) (CAN-B)
CAN-C Controller Area Network bus, class C (engine compartment) (CAN-C)
CAN-D Controller Area Network bus class D (diagnosis) (CAN-D)
MOST Media Oriented System Transport (MOST)

Networking of MOST with code (523) MB Audio 20 radio or with code (535) Audio 20 CD radio, USA







A2 Radio
A2/6 CD player with changer (in glove box) (for code (819) 6-disk CD changer)
N87/5 SDAR control unit (only with code (536) SIRIUS satellite radio)
N123/1 UPCI (Universal Portable CTEL Interface) control unit (for code (388) portable CTEL Universal Portable CTEL Interface system, for code (386) preinstallation for portable CTEL Universal Portable CTEL Interface system or for code (359) TELE AID emergency call system, low-cost)
CAN B Controller area network bus class B (interior compartment) (CAN B)
MOST Media Oriented System Transport (MOST)

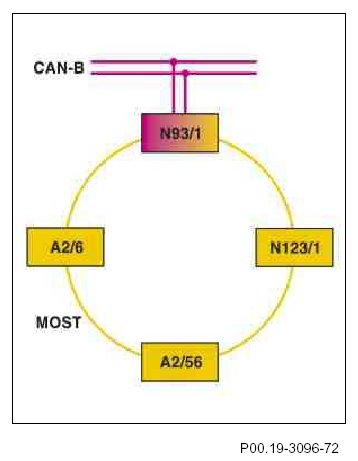

Networking of MOST with code (525) MB Audio 50 APS radio







A2/6 CD player with changer (in glove box) (for code (819) 6-disk CD changer)
A2/56 Radio and navigation unit
N93/1 Audio gateway control unit
N123/1 UPCI (Universal Portable CTEL Interface) control unit (for code (388) portable CTEL Universal Portable CTEL Interface system, for code (386) preinstallation for portable CTEL Universal Portable CTEL Interface system or for code (359) TELE AID emergency call system, low-cost)
CAN B Controller area network bus class B (interior compartment) (CAN B)
MOST Media Oriented System Transport (MOST)

Networking of MOST
with code (527) COMAND APS (with navigation system), with code (529) HIGH Class Japan or with code (530) COMAND APS USA (with navigation system))







A2/6 CD player with changer (in glove box) (for code (819) 6-disk CD changer)
A35/1 Hands-free system control unit (with (J))
A35/11 Voice control system control unit (not (J))
A40/3 COMAND operating, display and controller unit
N41/1 Navigation processor (except (J))
N87/5 SDAR control unit (with code (536) SIRIUS satellite radio)
N93/1 Audio gateway control unit
N123/1 UPCI (Universal Portable CTEL Interface) control unit(for code (388) portable CTEL Universal Portable CTEL Interface system, for code (386) preinstallation for portable CTEL Universal Portable CTEL Interface system or for code (359) TELE AID emergency call system, low-cost)
CAN-B Controller Area Network bus class B (interior compartment) (CAN-B)
MOST Media Oriented System Transport (MOST)
