AR82.10-P-4745V Remove/Install Sealing Frame of Front Lamp Unit
AR82.10-P-4745V Remove/Install Sealing Frame of Front Lamp Unit
AR82.10-P-4745V Removing And Installing Sealing Frame Of Front Lamp Unit

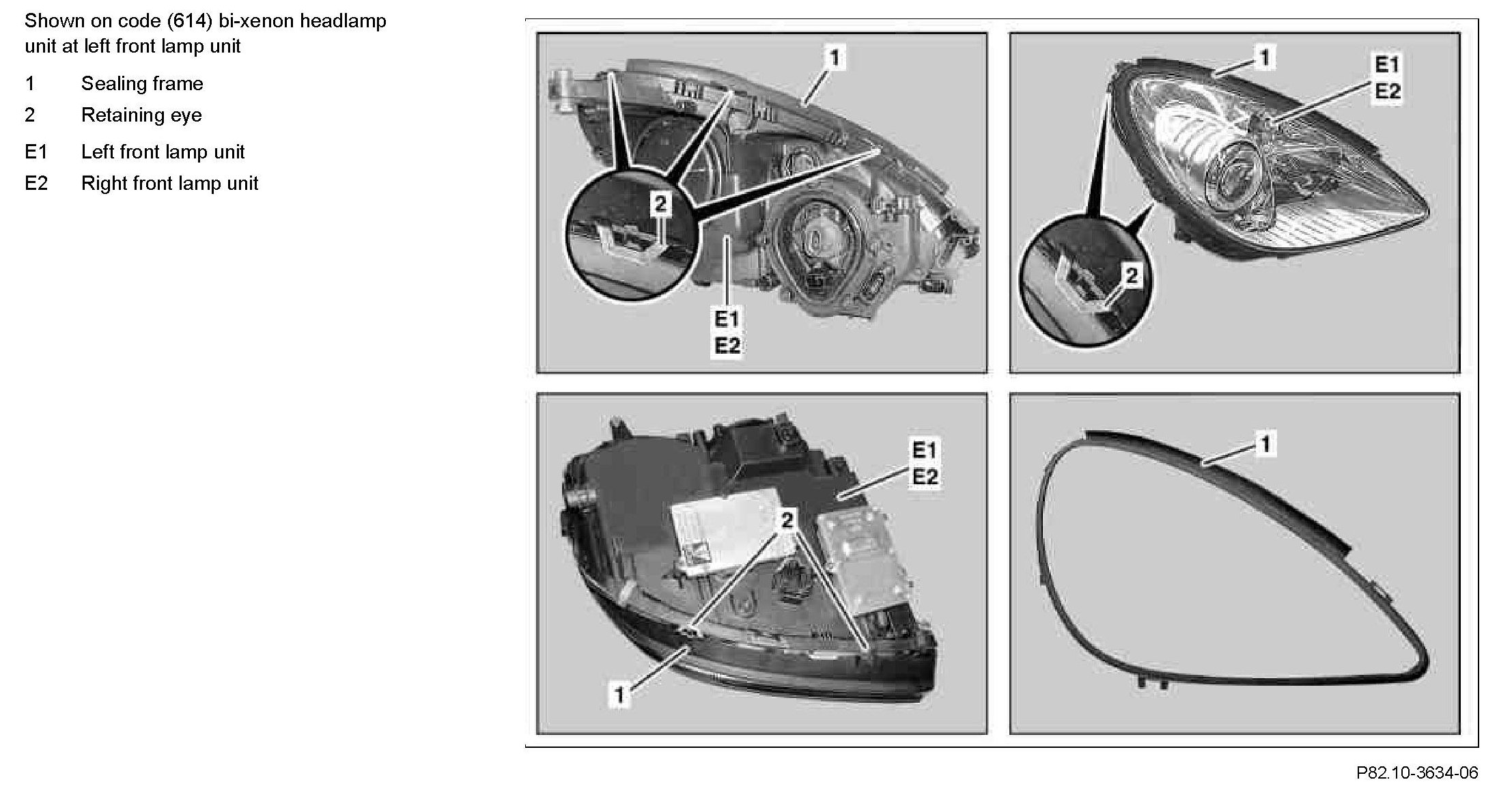

Component Identification:

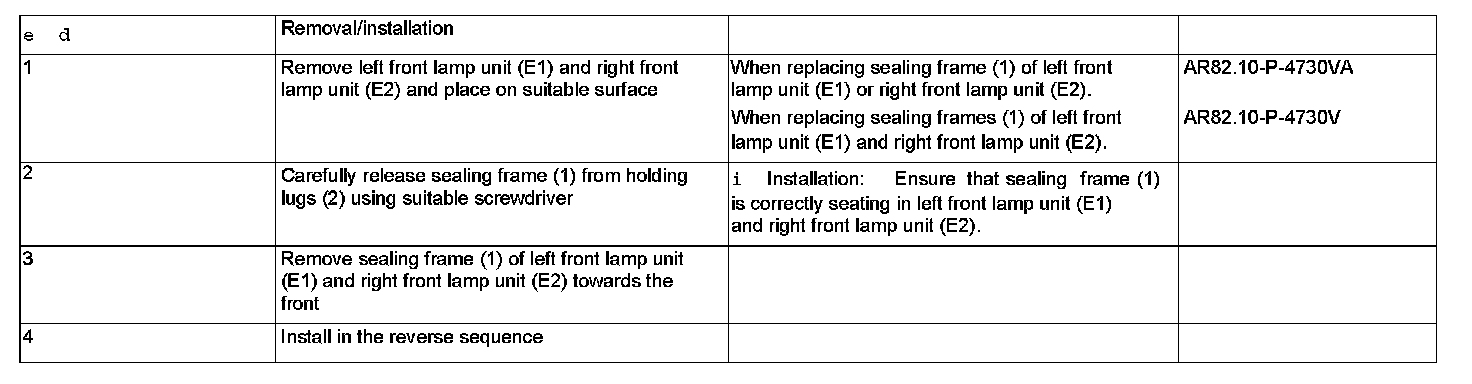

Steps 1 - 4:
