Home >> Mercedes Benz >> 2008 >> SLK 280 (171.454) V6-3.0L (272.942) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Description and Operation >> GF82.10-P-2105SKX Xenon Headlamp Ignition Module, Location/Task

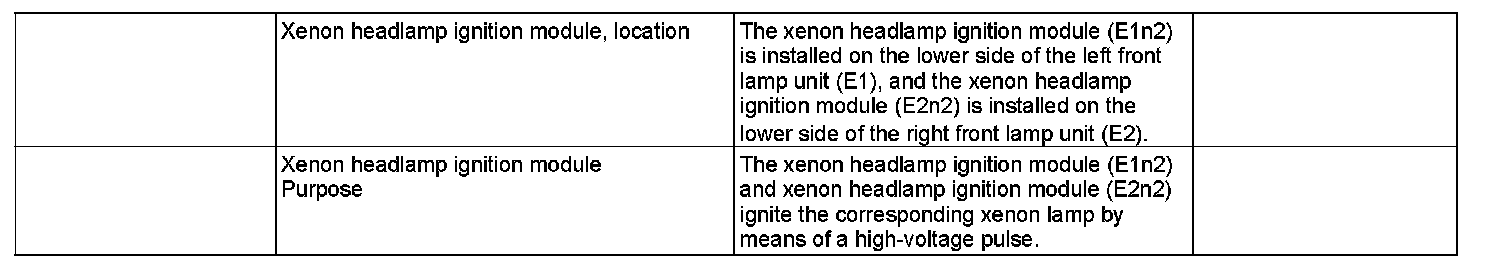

GF82.10-P-2105SKX Xenon Headlamp Ignition Module, Location/Task



GF82.10-P-2105SKX Xenon Headlamp Ignition Module, Location/Task
- with CODE (614) Bi-xenon headlamp unit

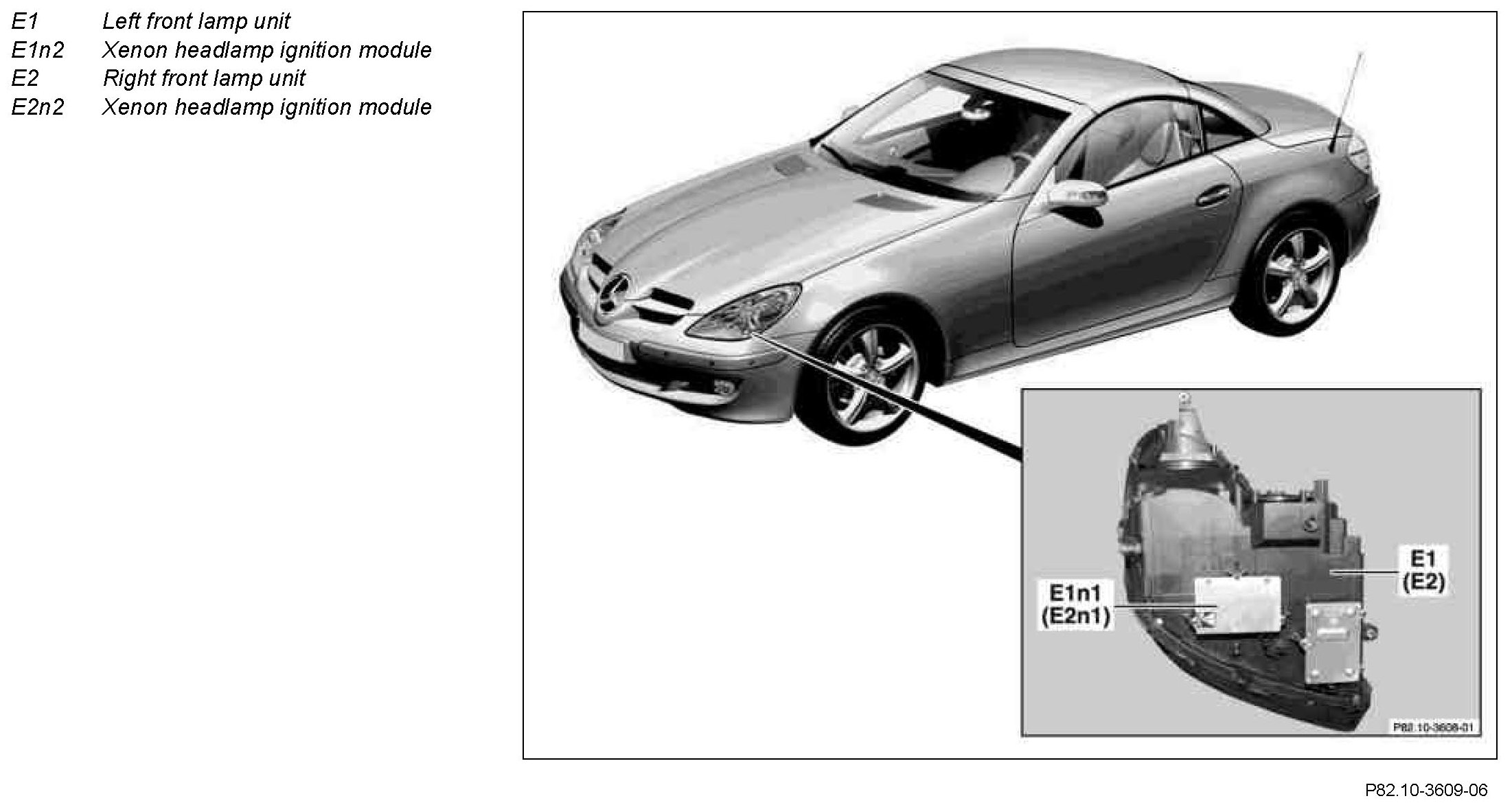

Component Identification:
