AR03.20-P-1000VA Remove/Install the Balancing Shaft



AR03.20-P-1000VA Removing/installing the balancing shaft

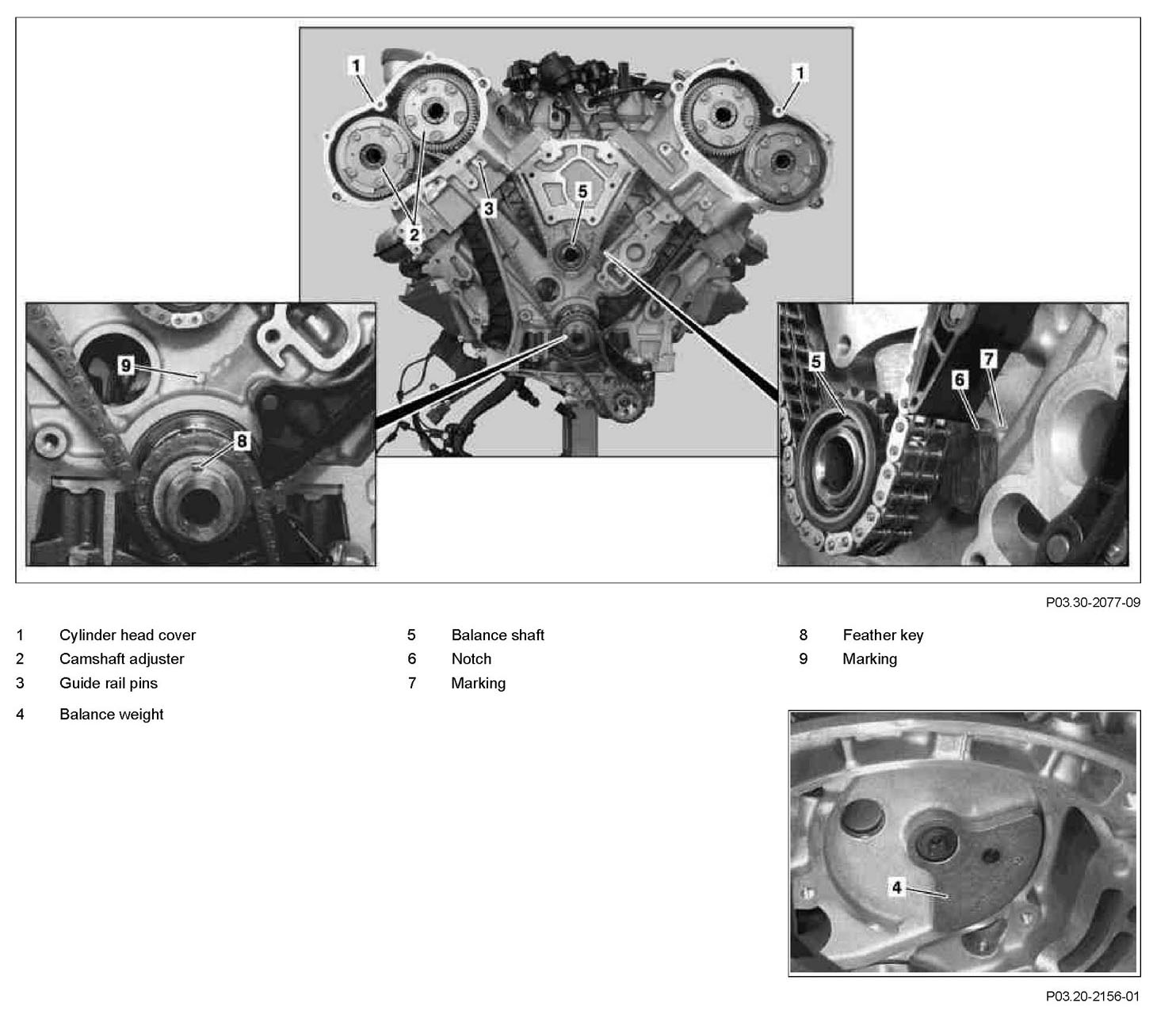

Component Identification:

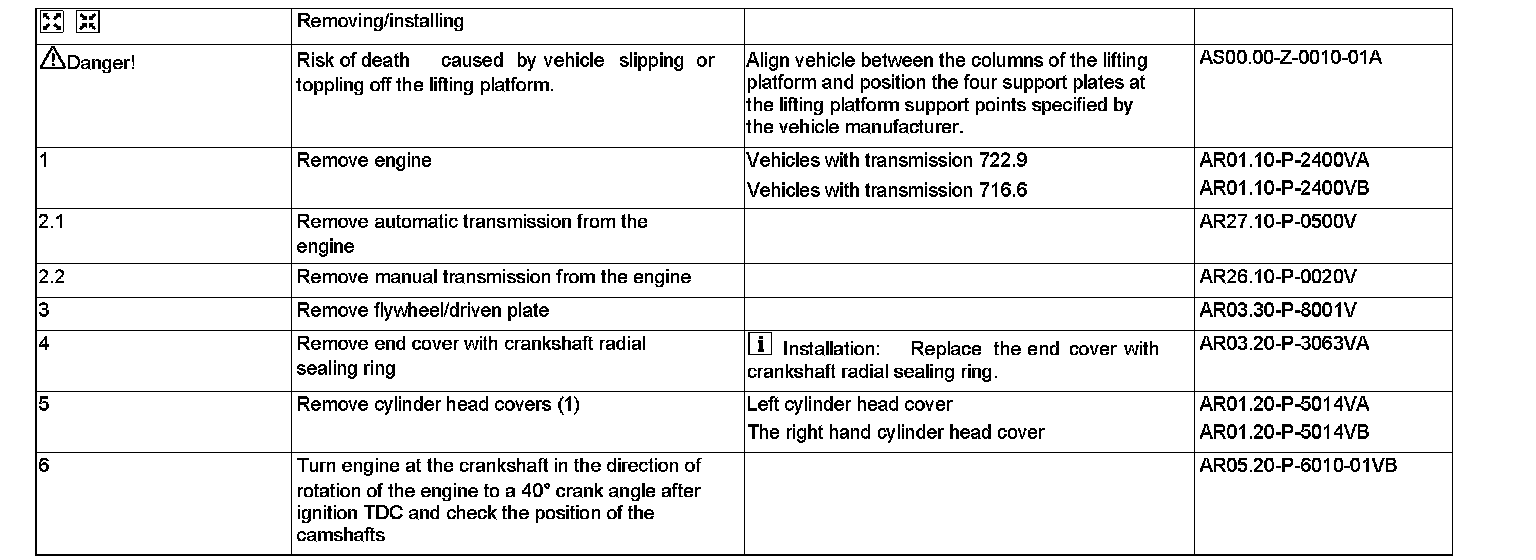

Steps 1-6:

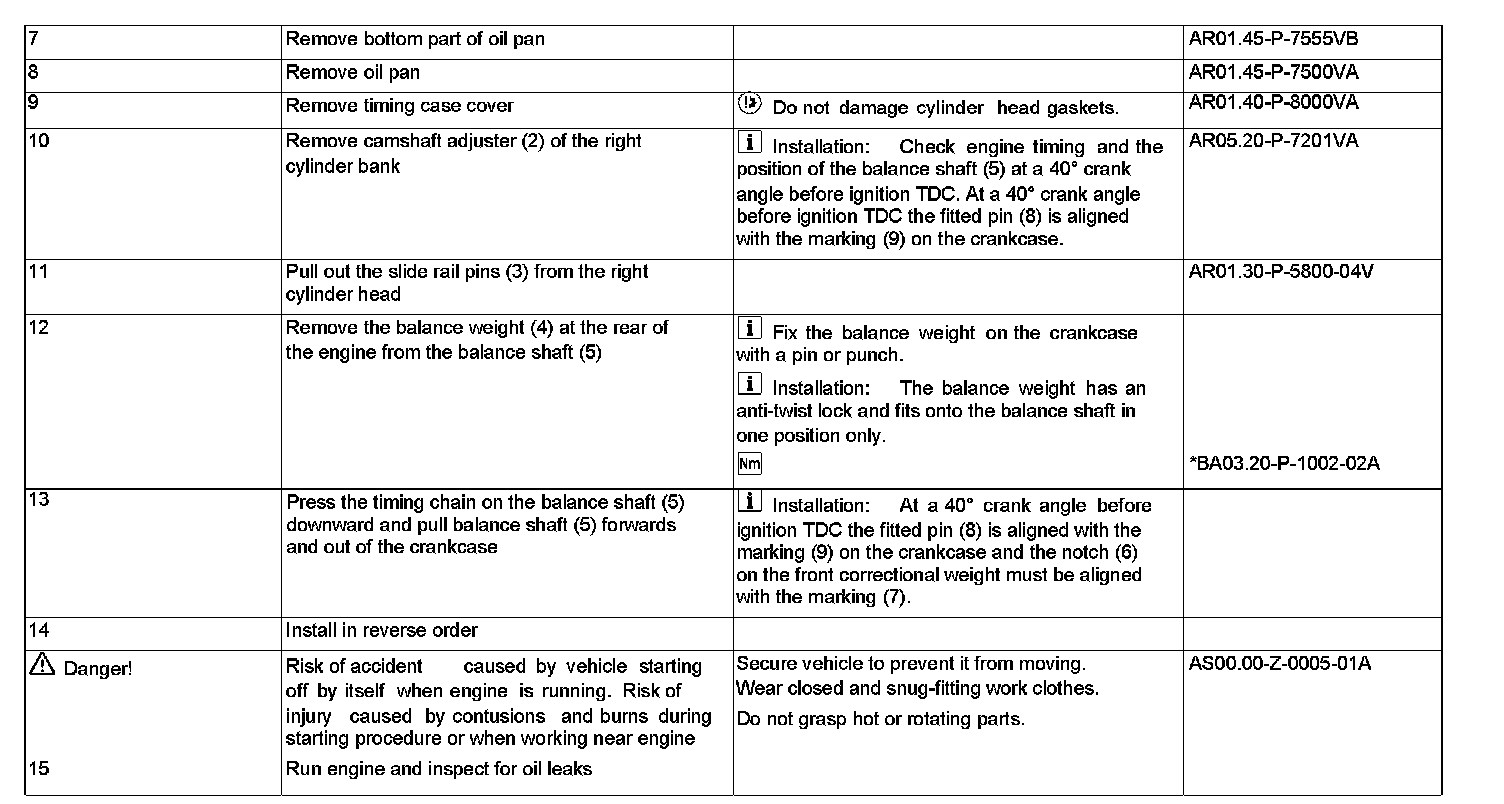

Steps 7-15:

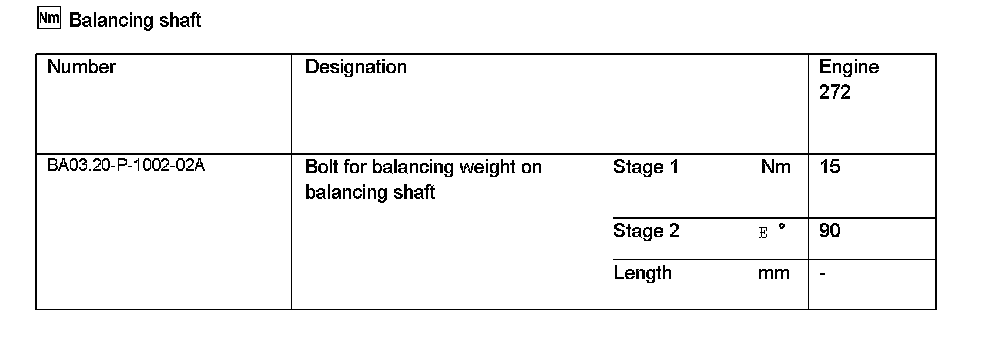

Balancing Shaft:
