Intake Manifold: Service and Repair
AR09.20-P-1961VA Removing and Installing the Resonance Intake Manifold

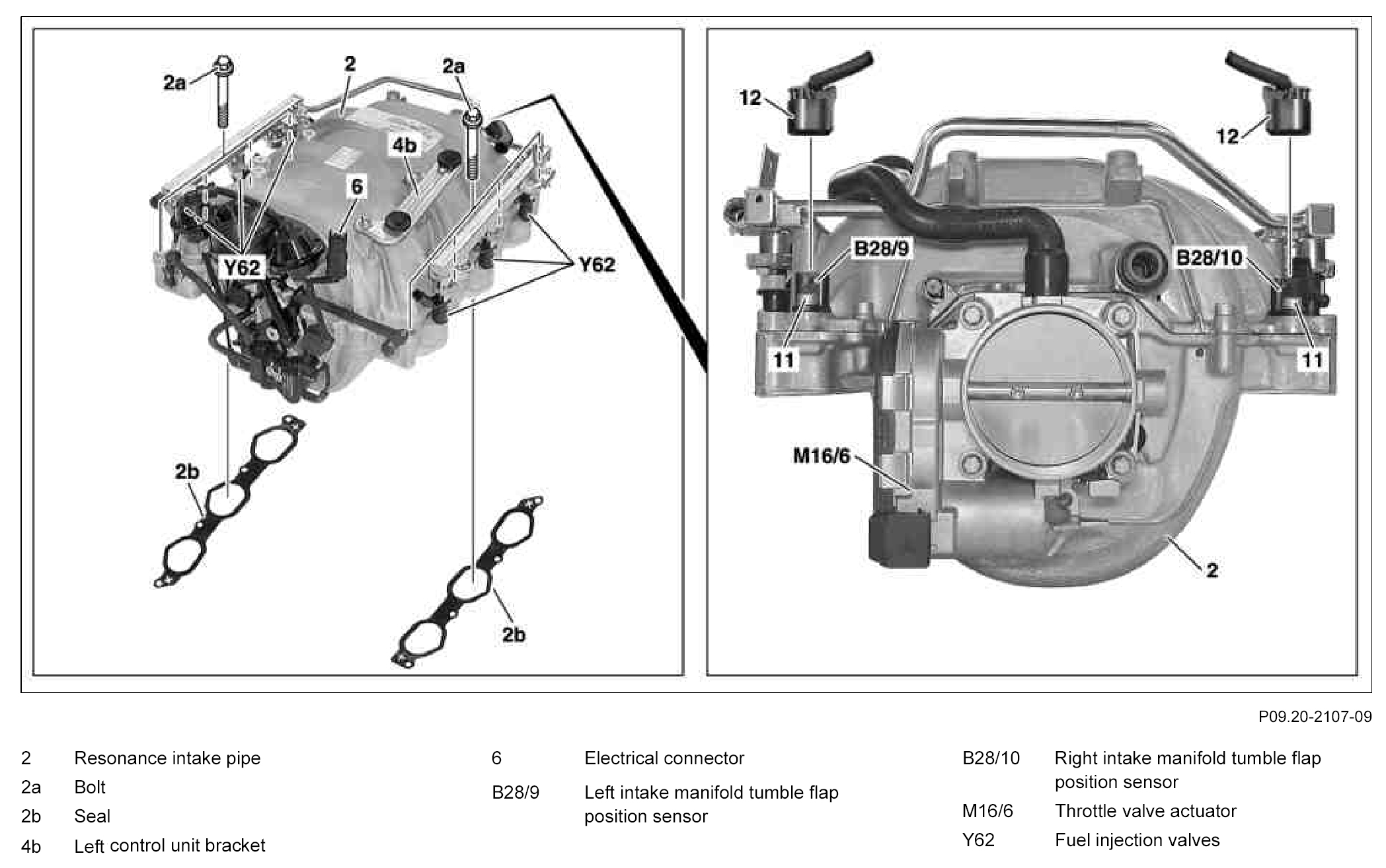

Component Identification:
Component Identification:

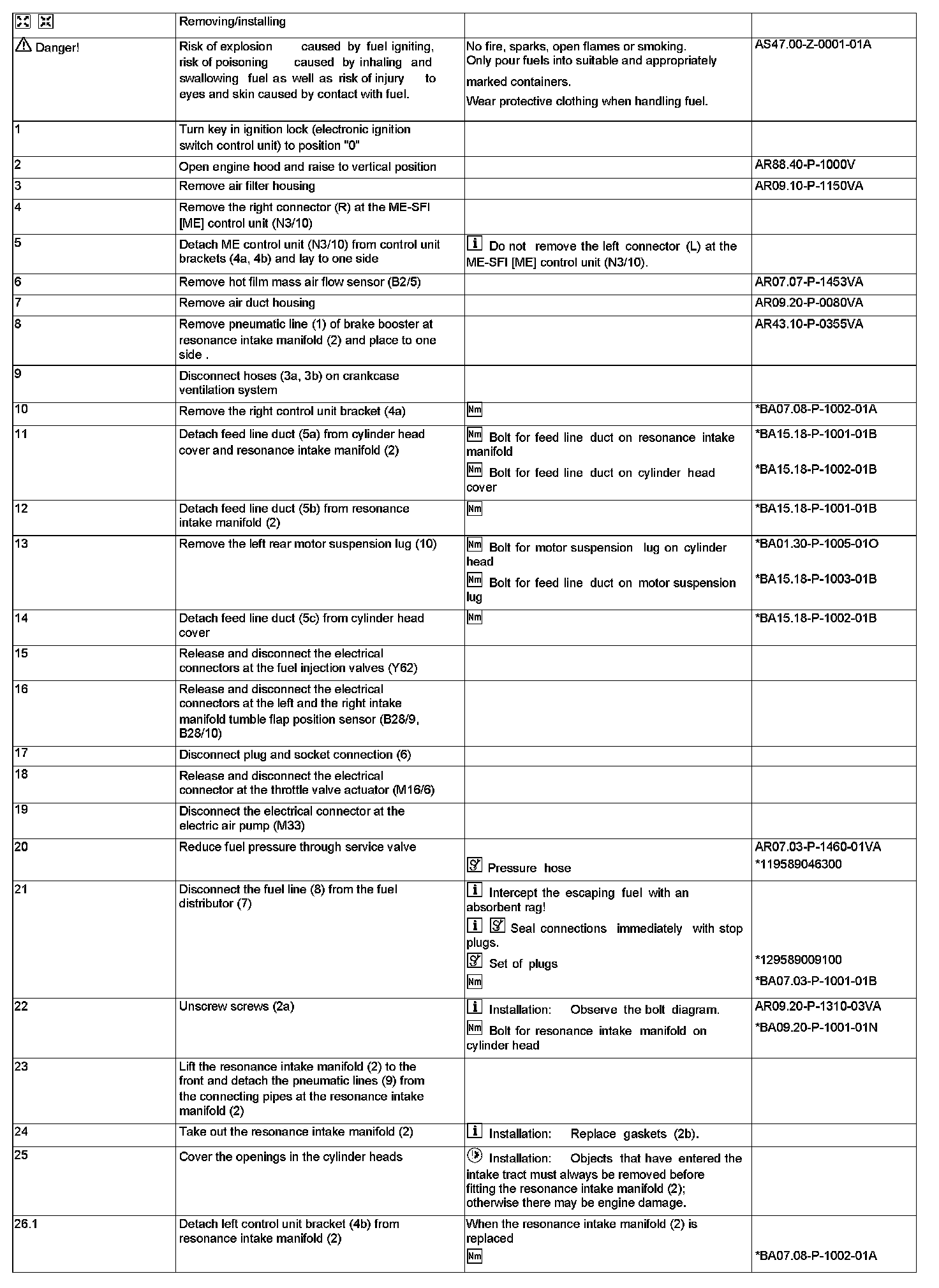

Steps 1 - 26.1:

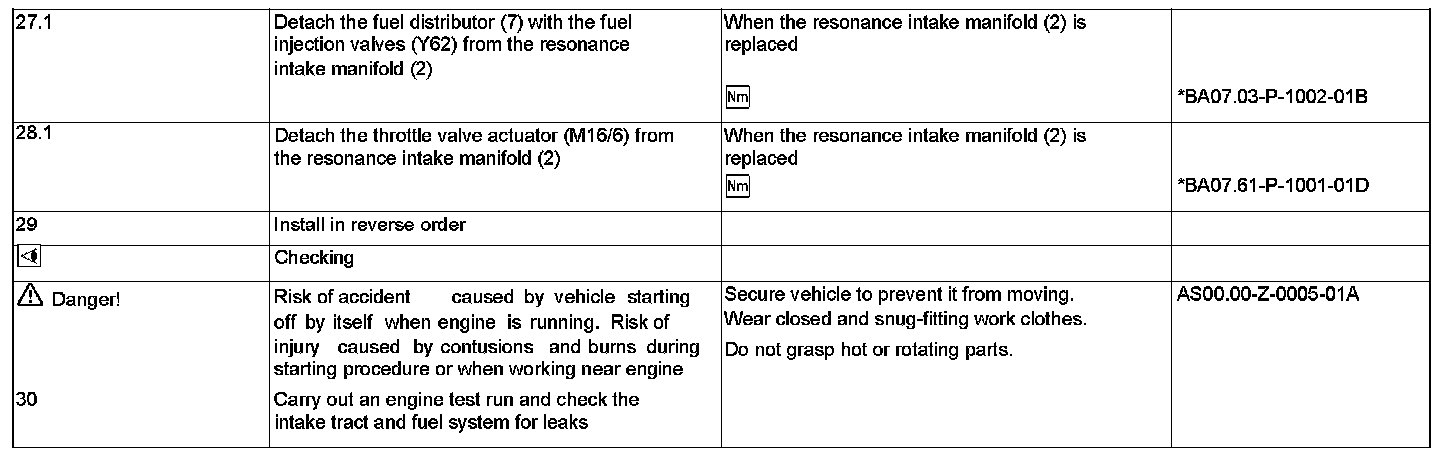

Steps 27.1 - 30:

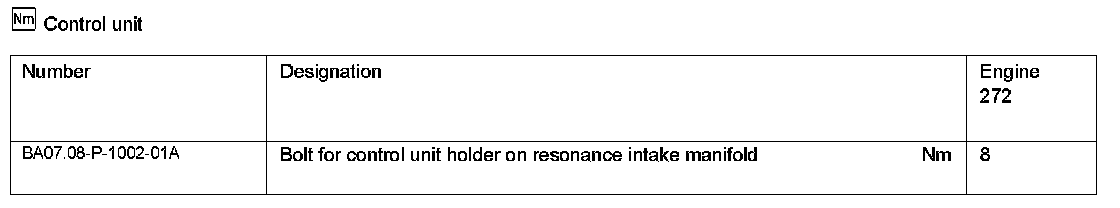

Control Unit:

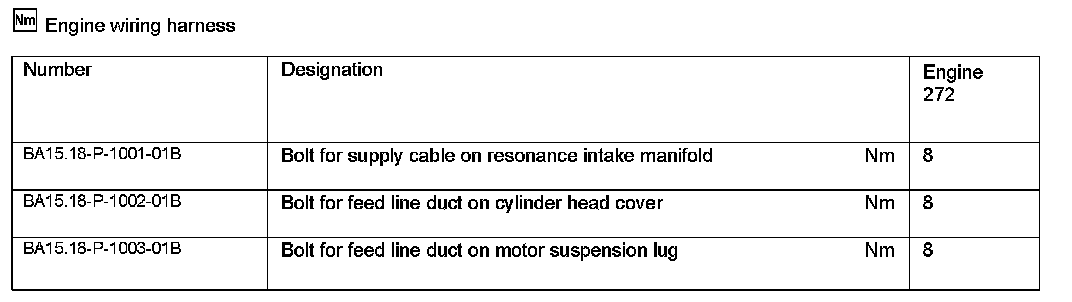

Engine Wiring Harness:
Cylinder Head:

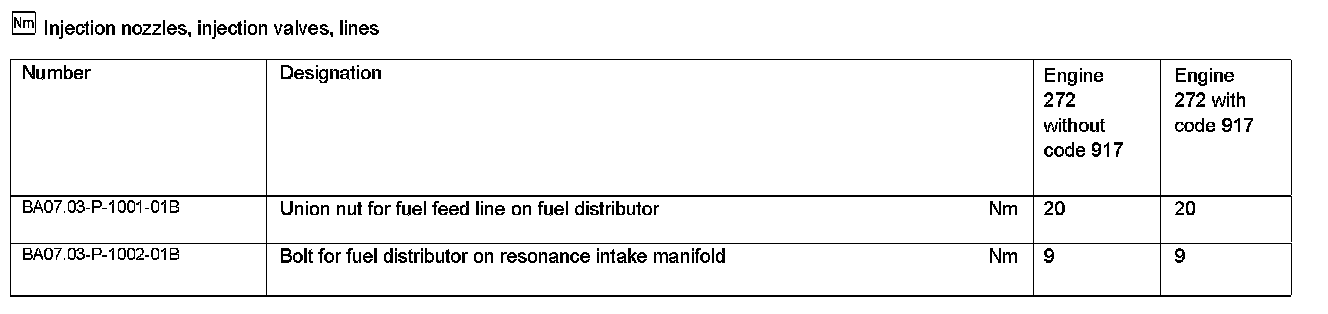

Injection Nozzles, Injection Valves, Lines:
Intake Manifold:

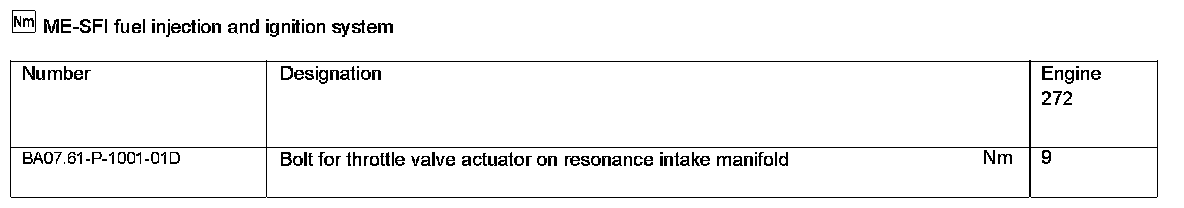

ME-SFI Fuel Injection And Ignition System:

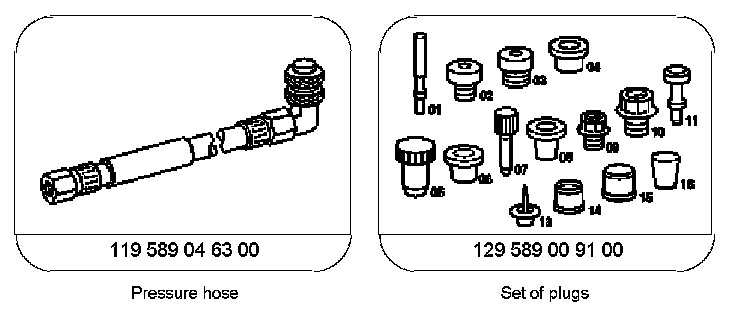

Special Tools:
