AR91.10-P-1000V Remove/Install Front Seats
AR91.10-P-1000V Remove/Install Front Seats
AR91.10-P-1000V Remove/install Front Seats

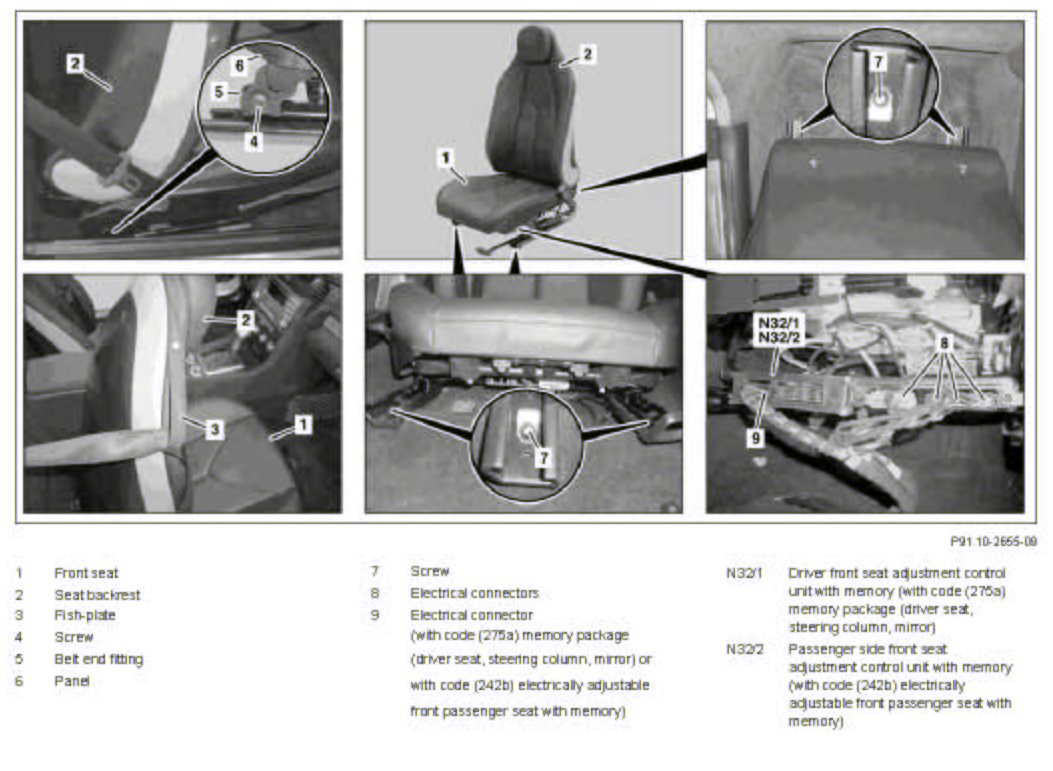

Component Identification:

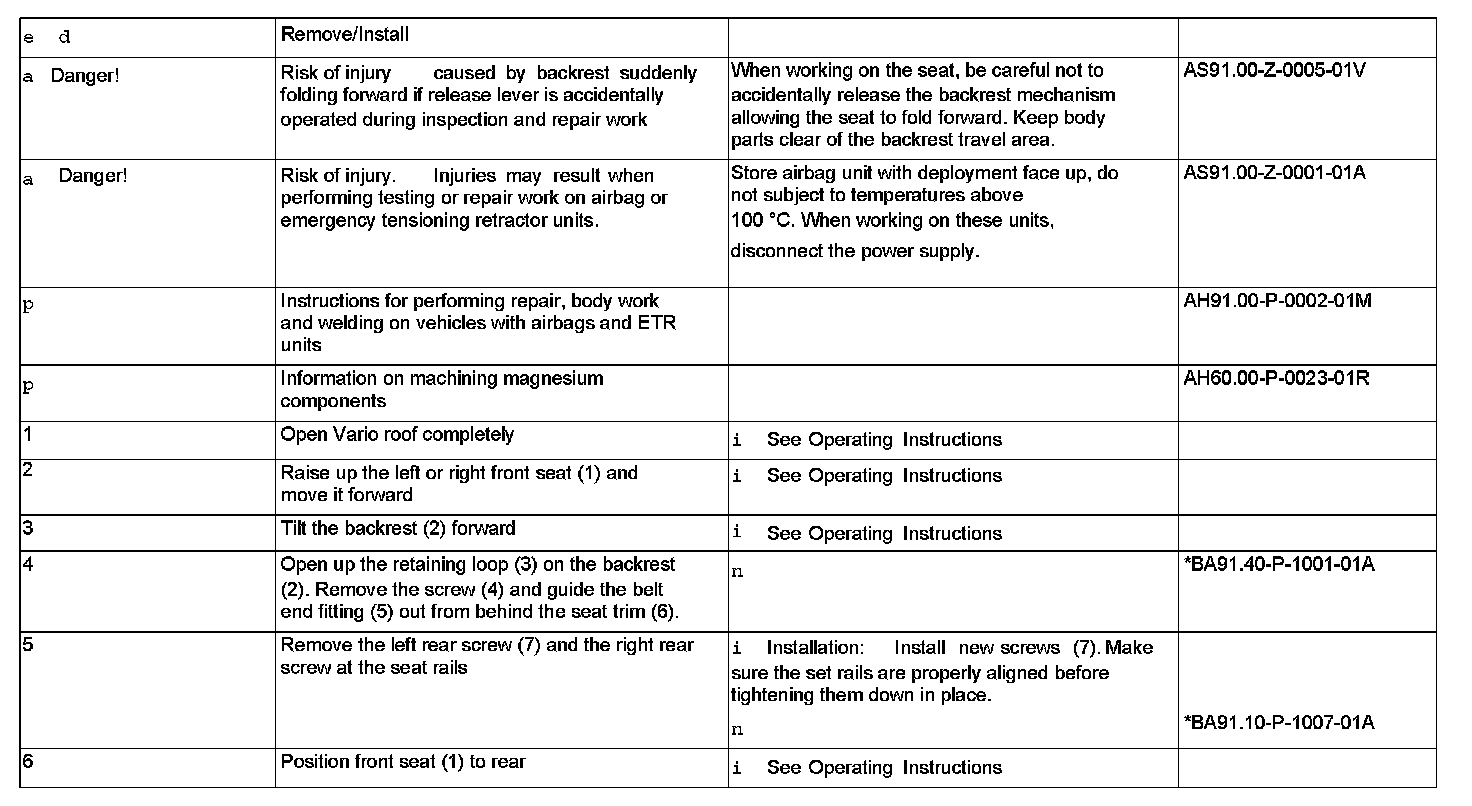

Steps 1 - 6:

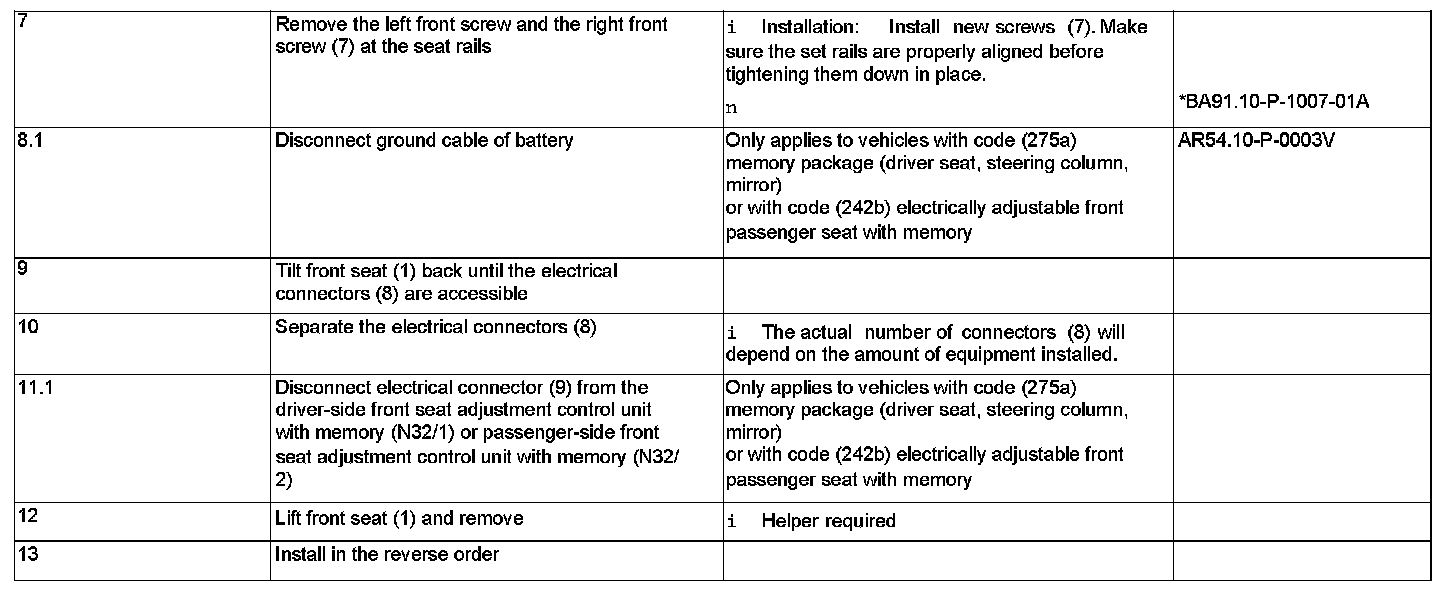

Steps 7 - 13:

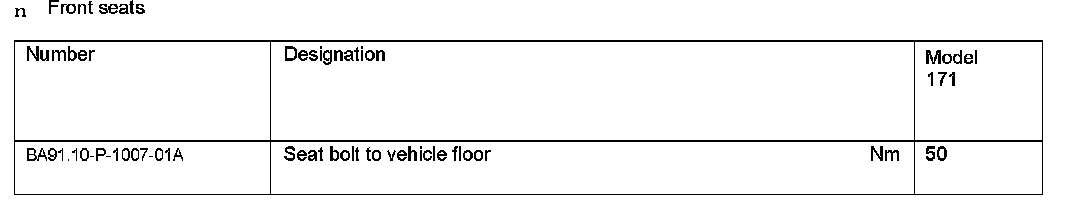

Front Seats:
Seat Belts/emergency Tensioning Refractors:
