Function Diagrams

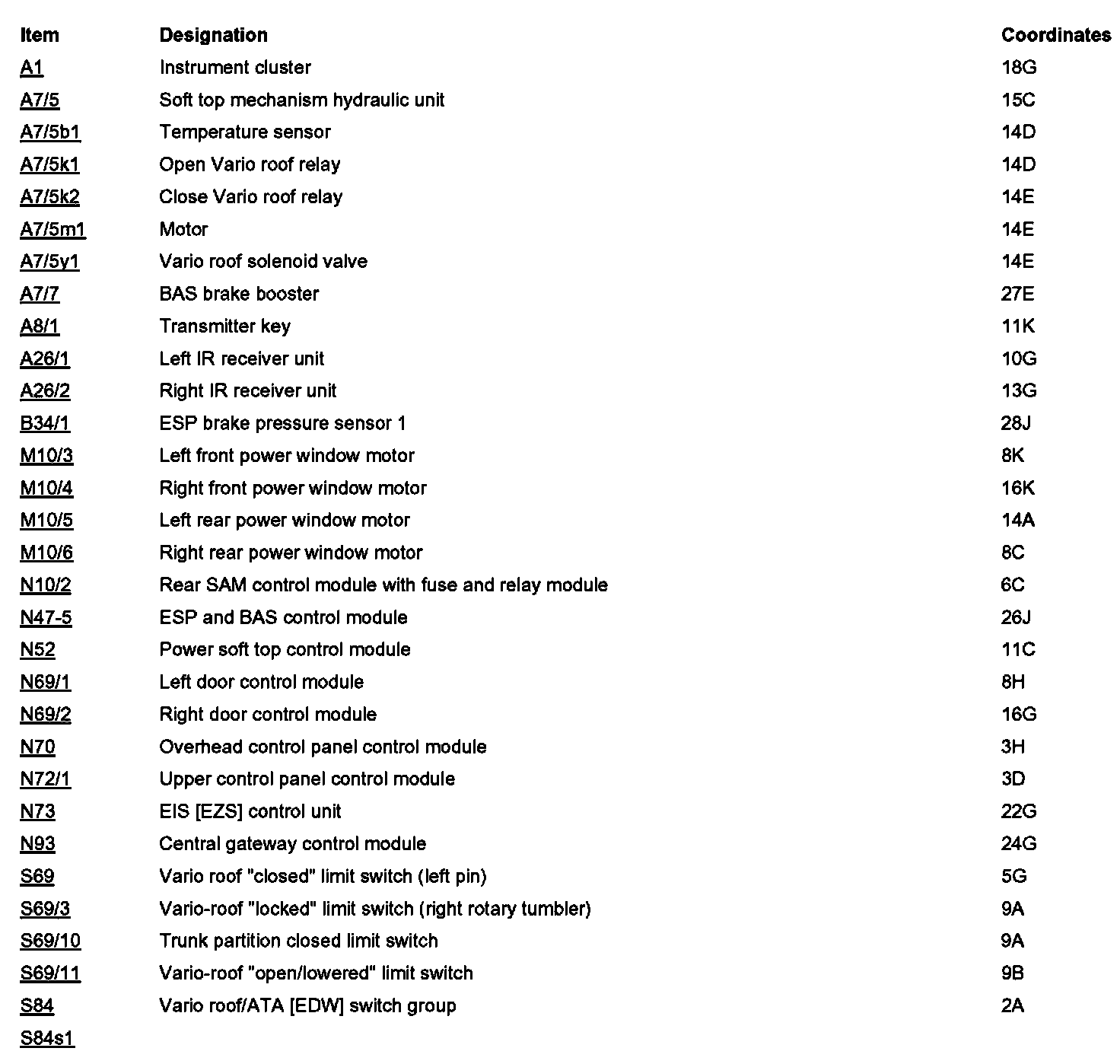

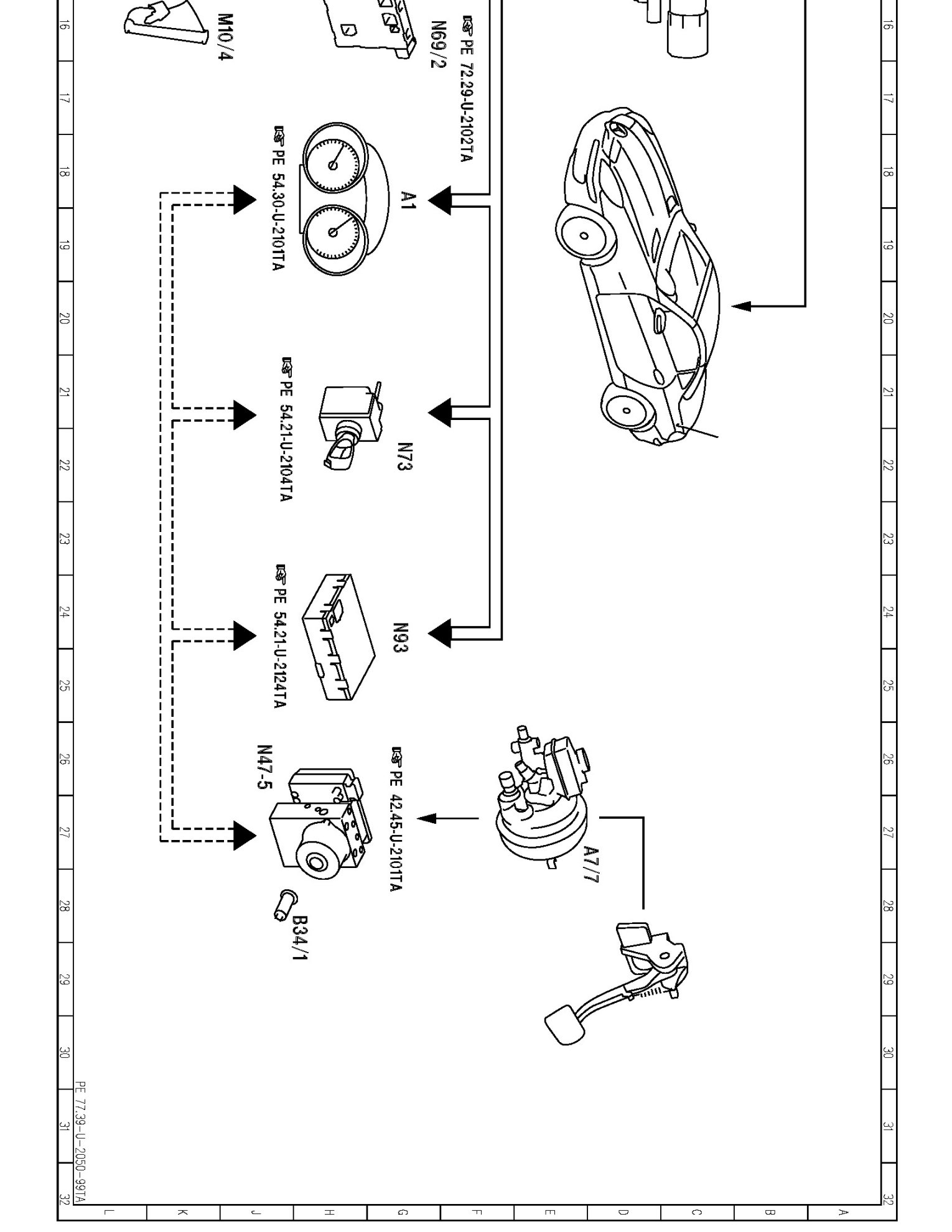

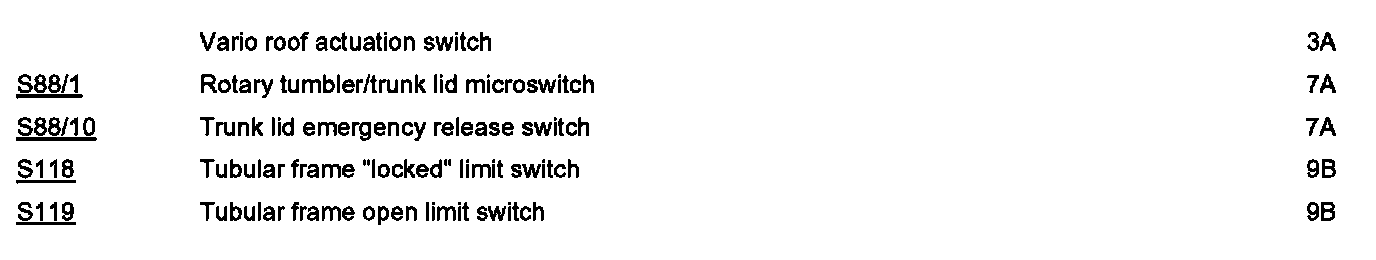

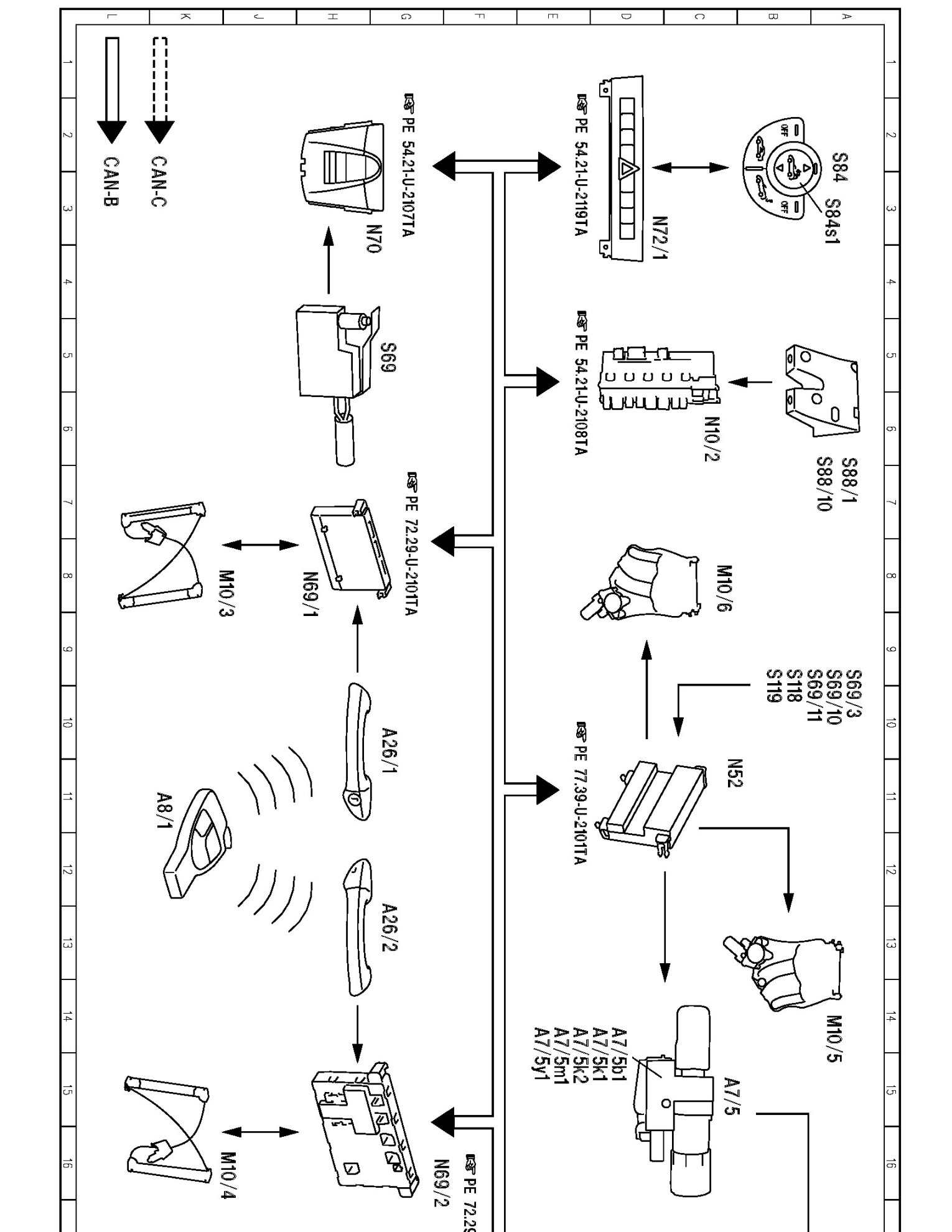

PE77.39-U-2050TA Function Schematic For Vario Roof Electrical System



















Component Locations: Component Locations photographs can be found via their component names at the vehicle level. Component Locations
