Console Lock Actuator: Service and Repair
AR80.20-P-3650V Remove/install Center Console Compartment CL Element

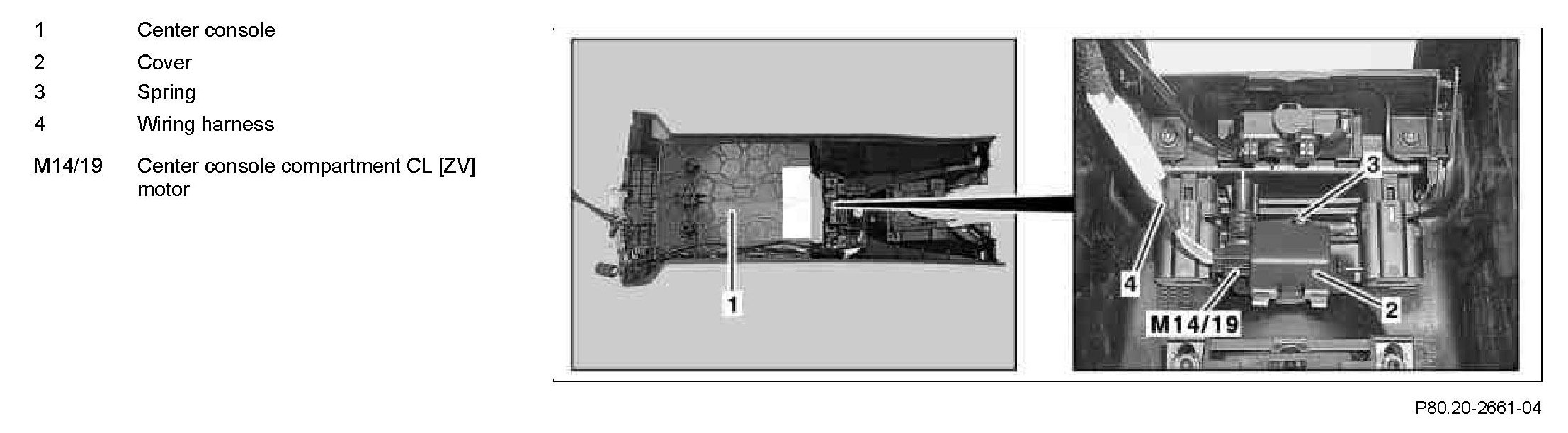

Component Identification:

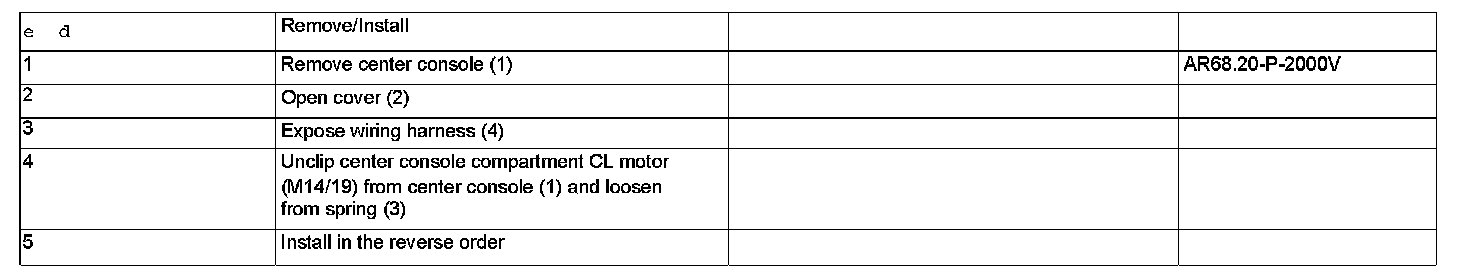

Steps 1 - 5:
