Hood Latch: Testing and Inspection
AP88.40-P-8851V Inspect Lock And Locking Hook Of
Hood
Component Identification:

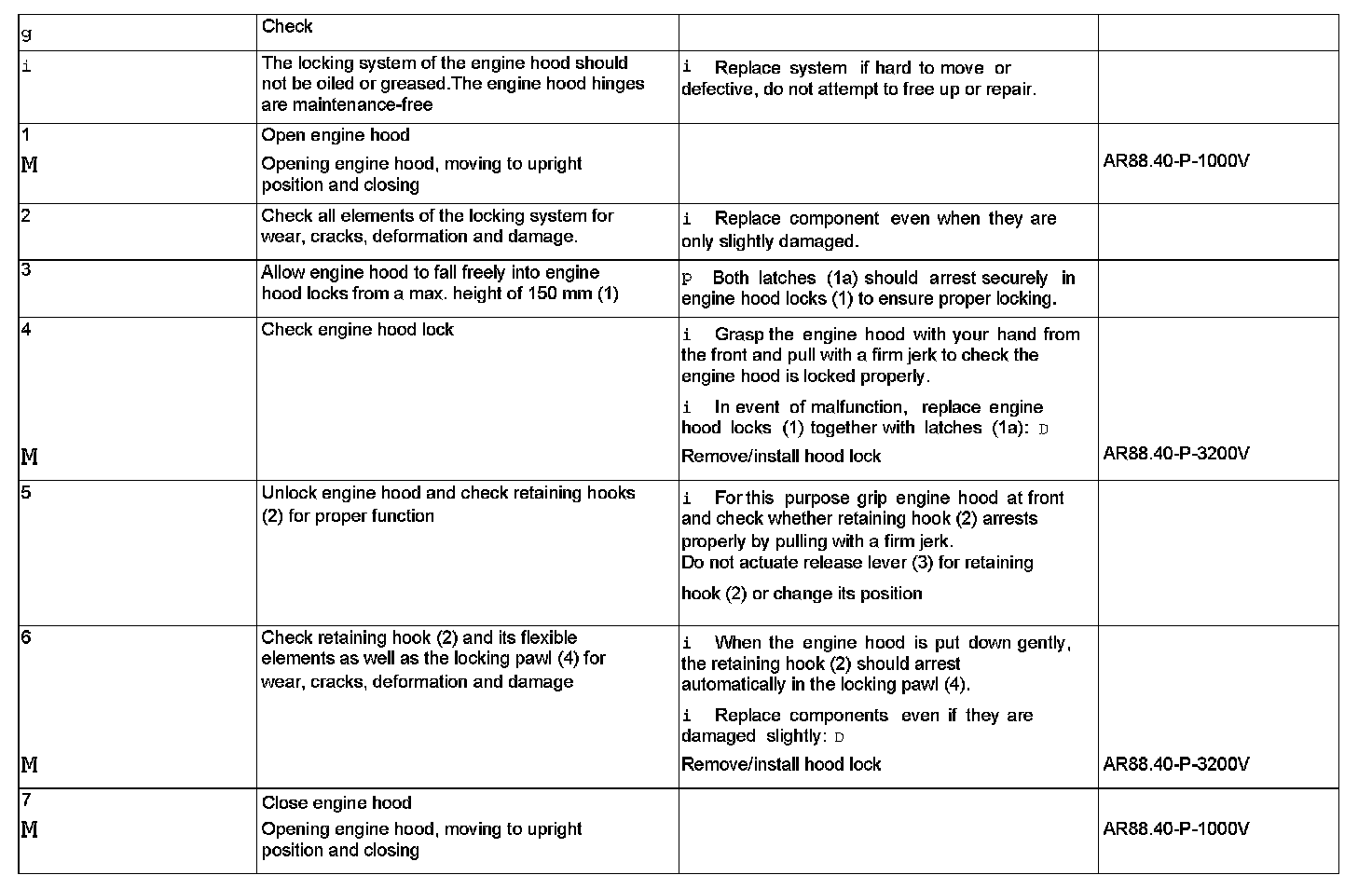

Steps 1 - 7:
