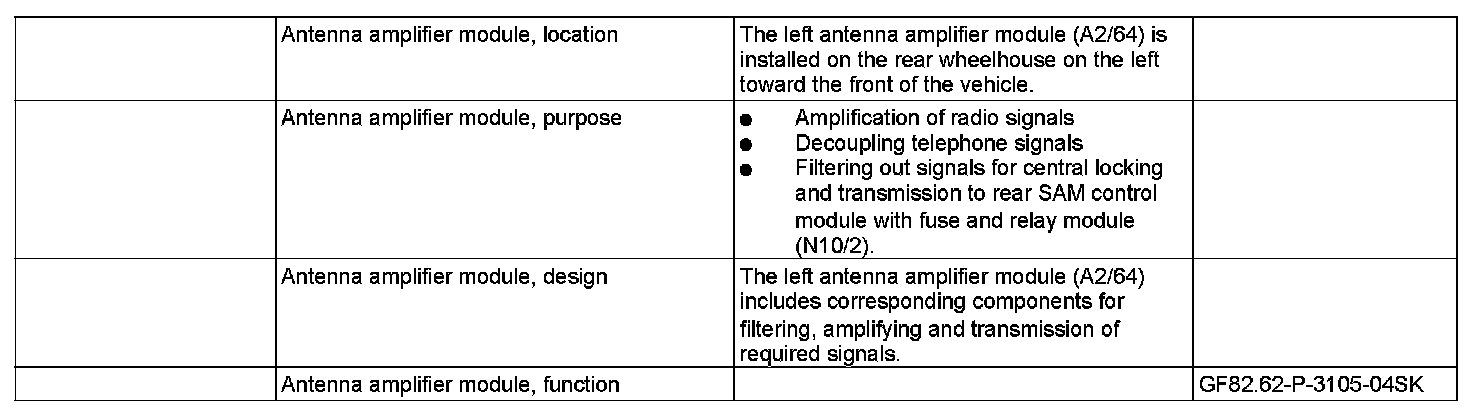

GF82.62-P-3105SK Antenna Amplifier Module, Location/Purpose/Design/Function

GF82.62-P-3105SK Antenna Amplifier Module, Location/Purpose/Design/Function

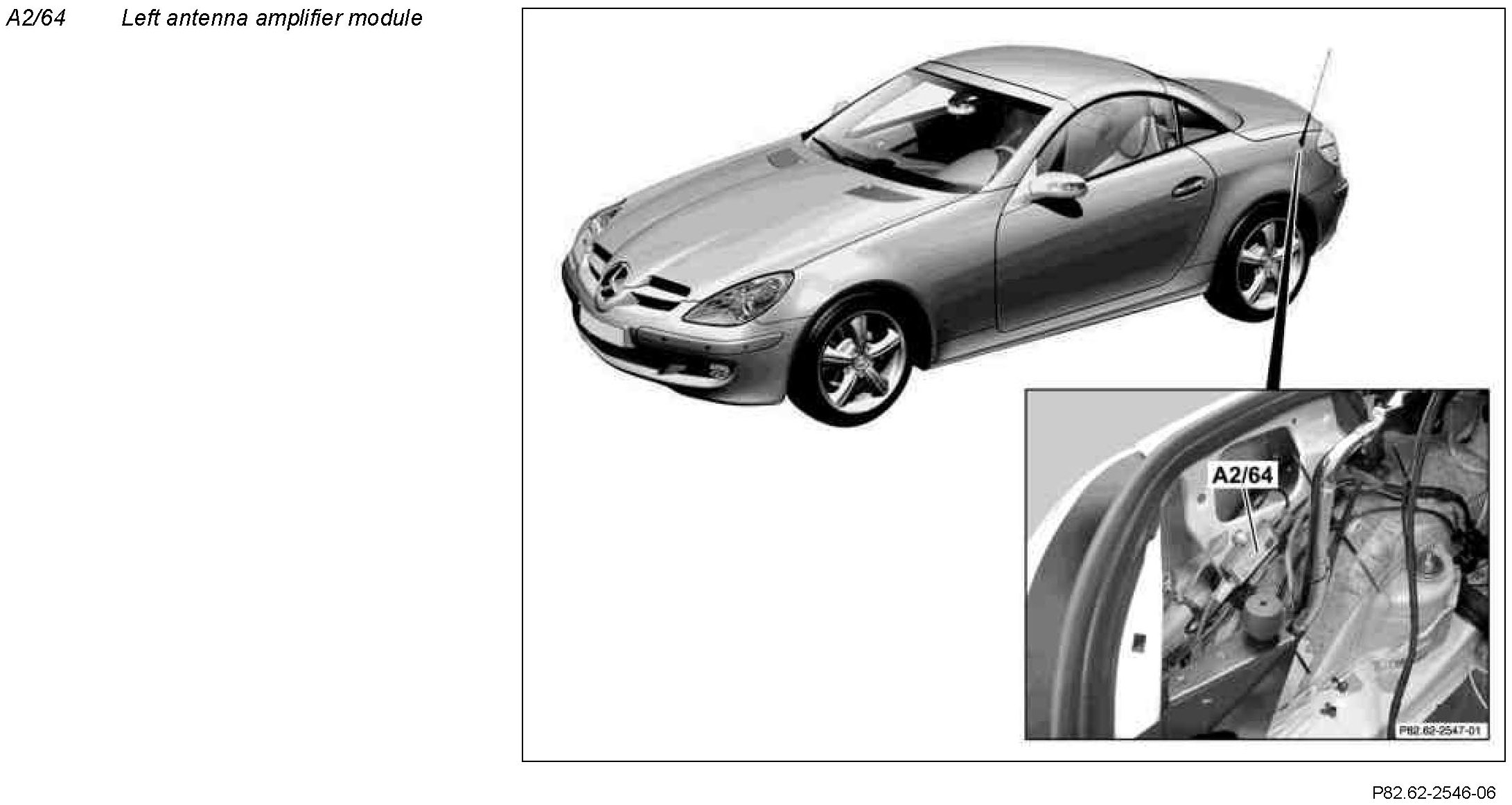

Component Identification:
