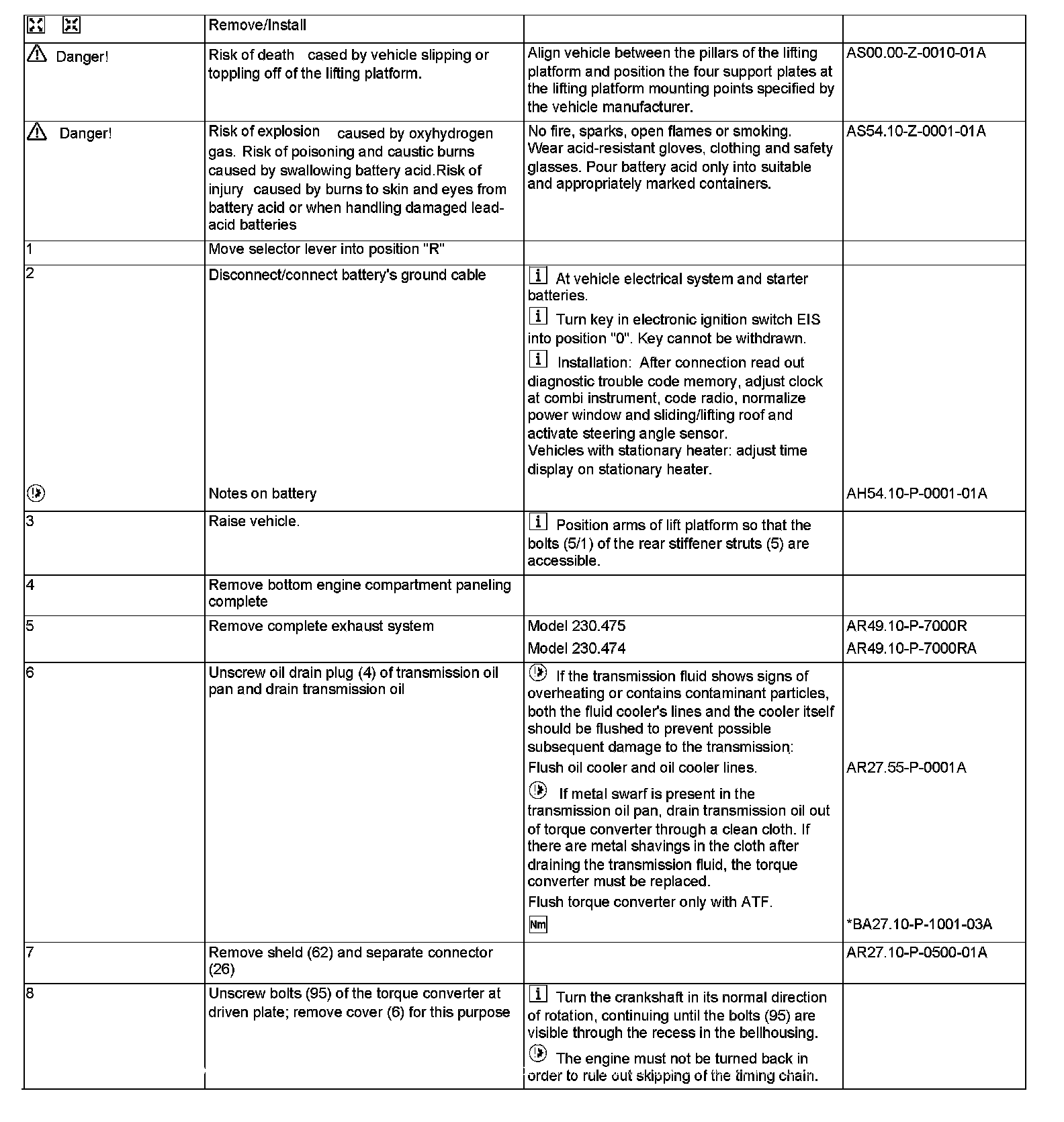

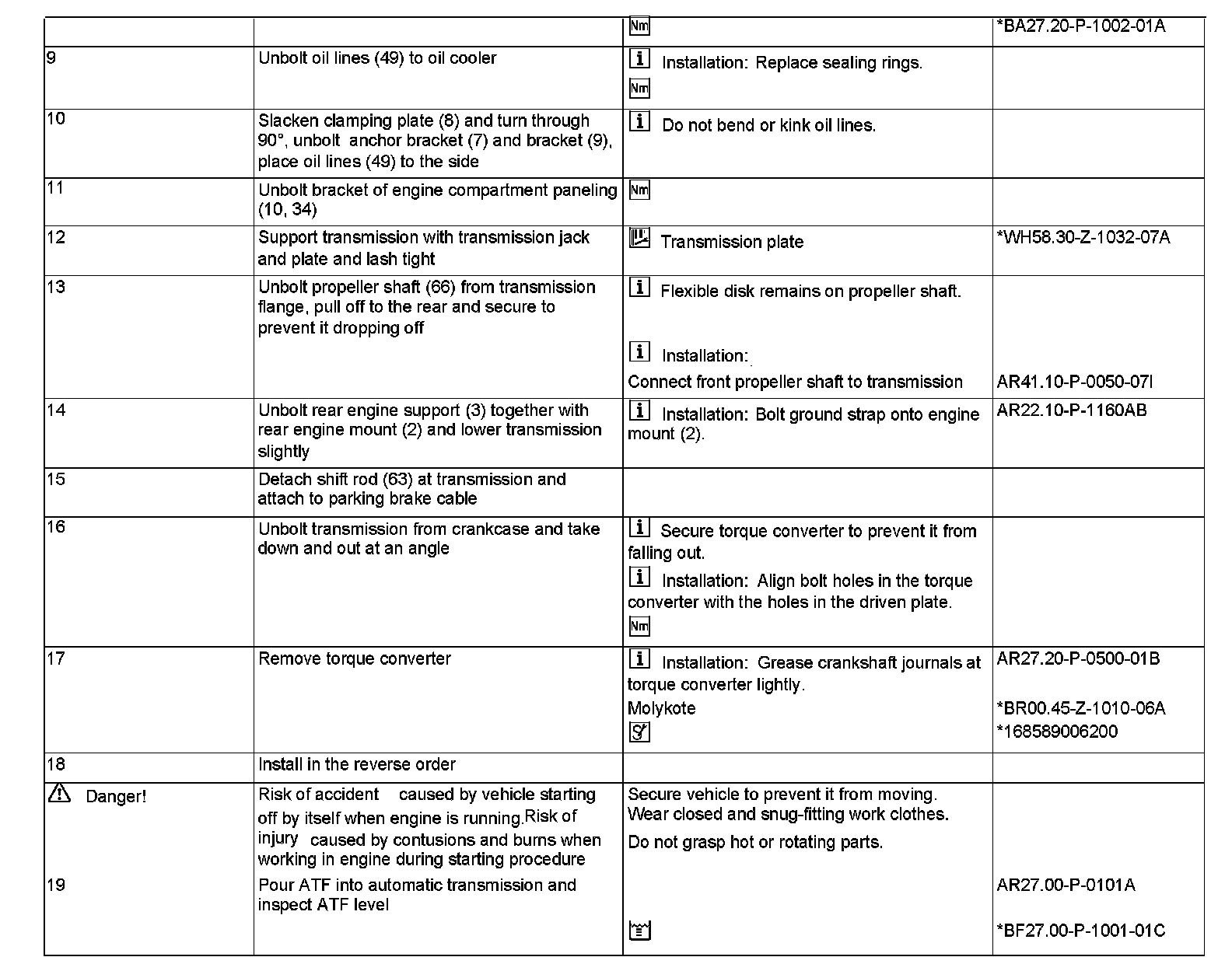

AR27.10-P-0500R Remove/Install Transmission With Torque Converter




AR27.10-P-0500R Remove/Install Transmission With Torque Converter
- Transmission 722.643/633






























Automatic transmission:
