Home >> Mercedes Benz >> 2008 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Refrigerant Pressure Sensor / Switch >> Service and Repair >> AR83.30-P-5430RBS Remove/Install Refrigerant Pressure Sensor

AR83.30-P-5430RBS Remove/Install Refrigerant Pressure Sensor



AR83.30-P-5430RBS Remove/install Refrigerant Pressure Sensor
- with CODE (P99) Special model "AMG Black Series"

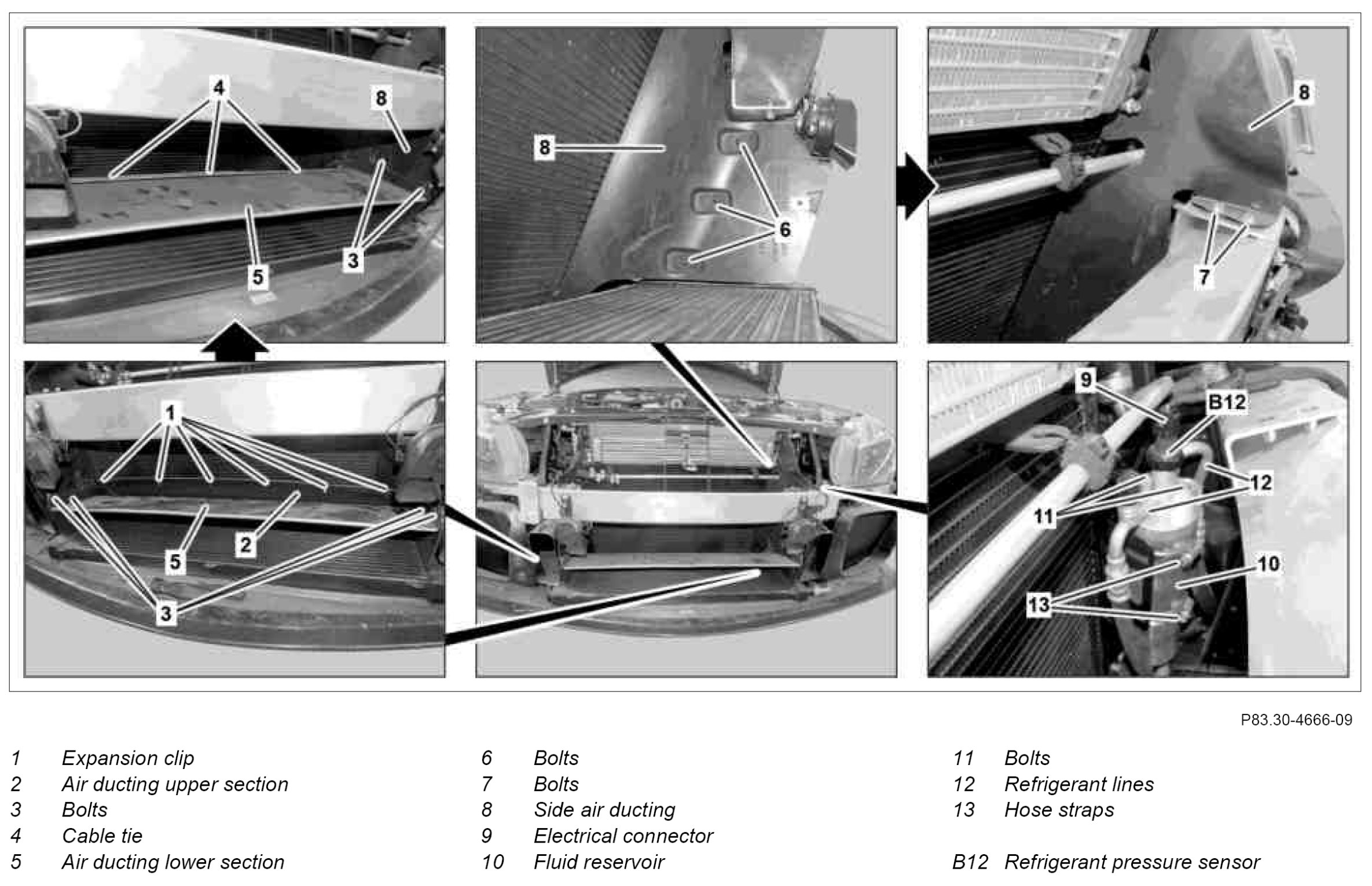

Component Identification:






Steps 1-10:

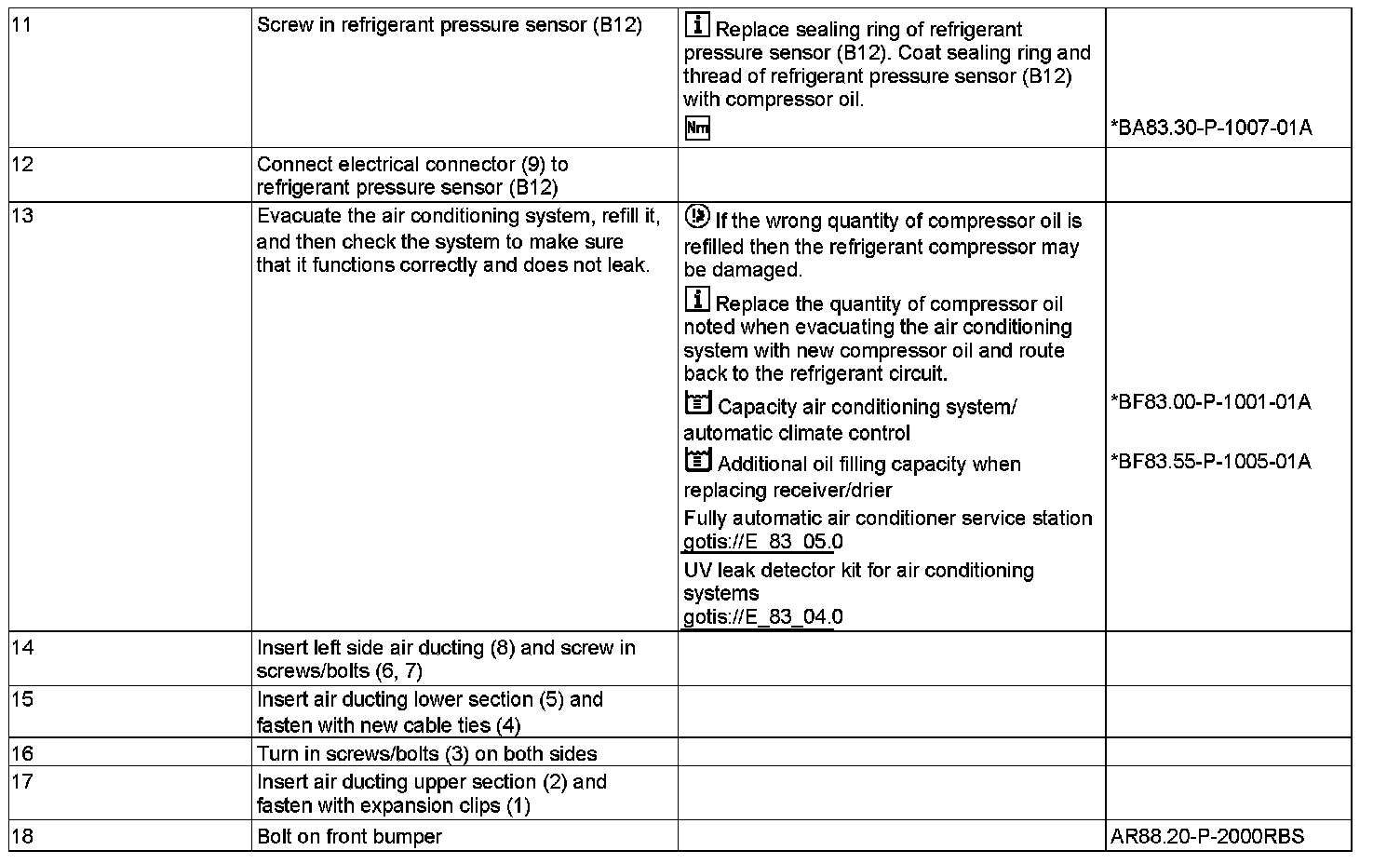

Steps 11-18:

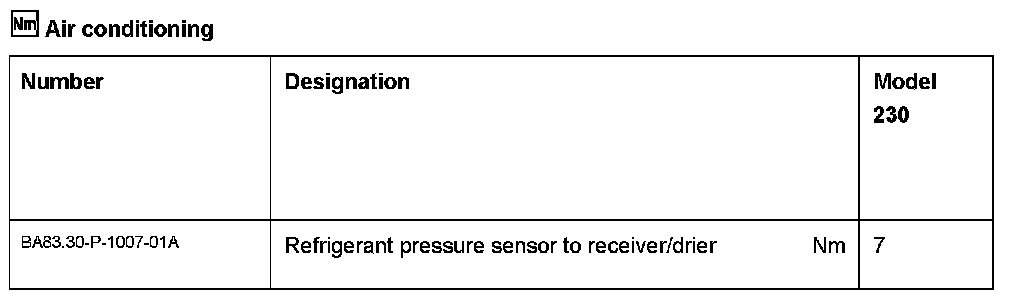

Air conditioning

Air Conditioning:

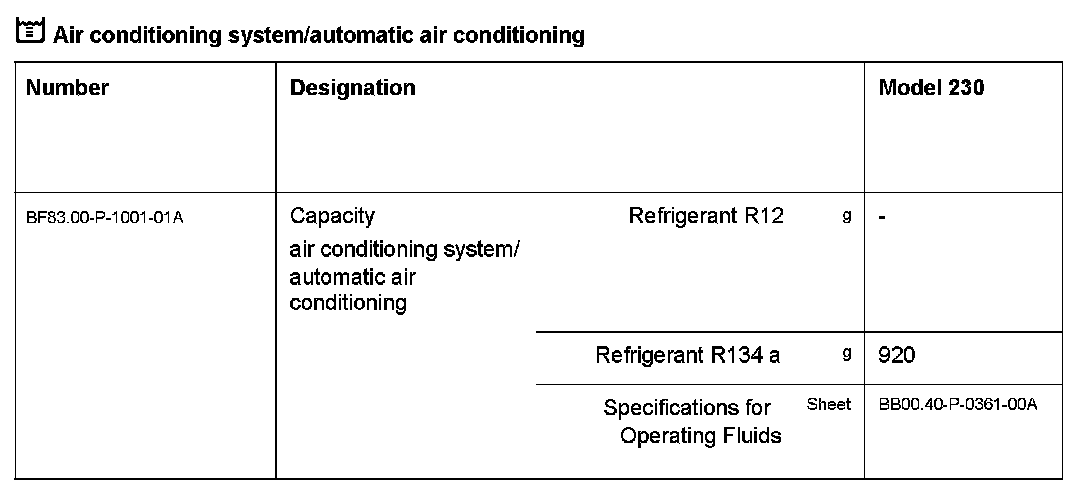

Air conditioning system/automatic air conditioning


Air Conditioning System/automatic Air Conditioning:

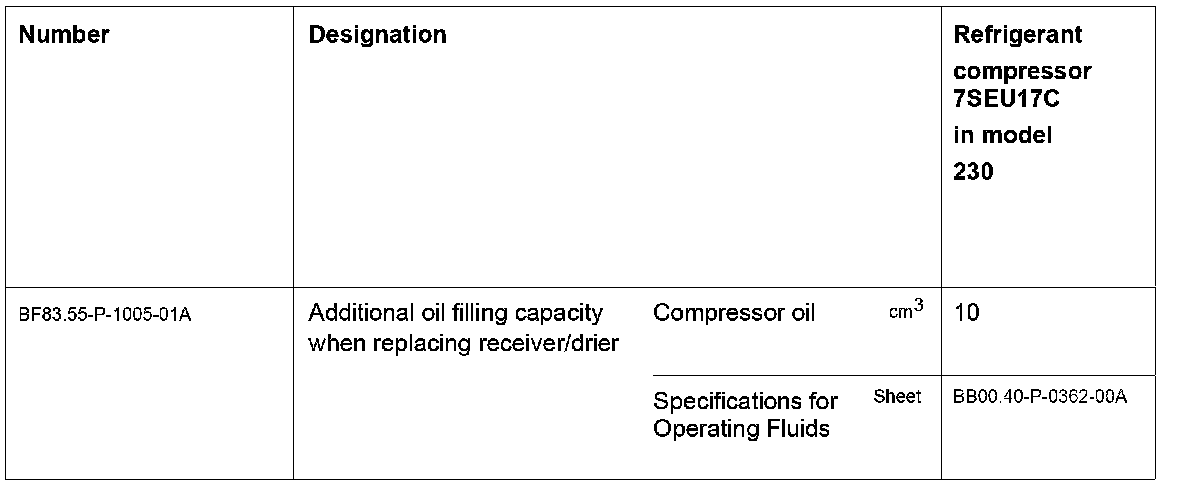

Refrigerant compressor

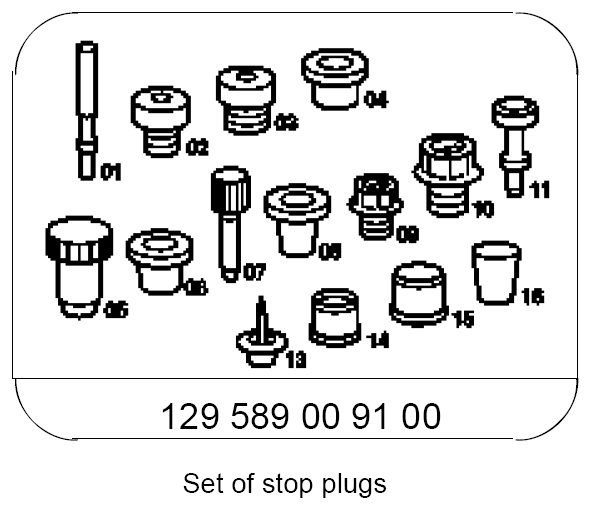

Special Tools:
