Timing Chain Guide: Service and Repair

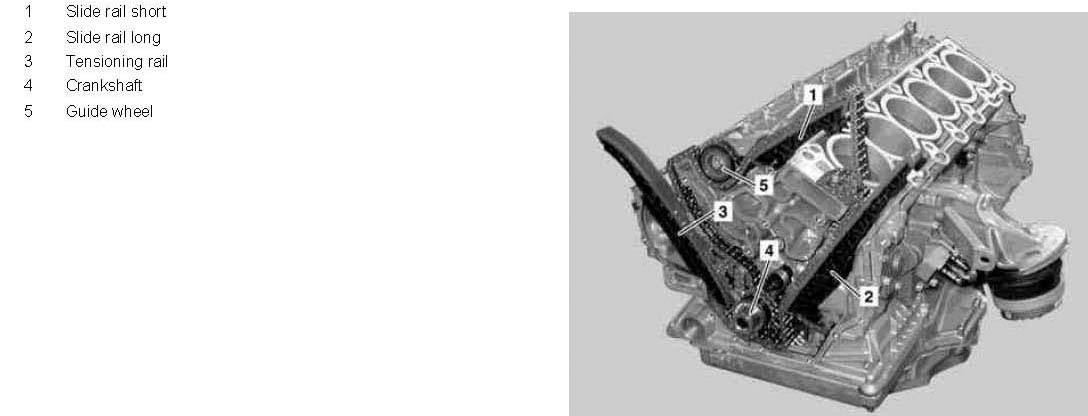

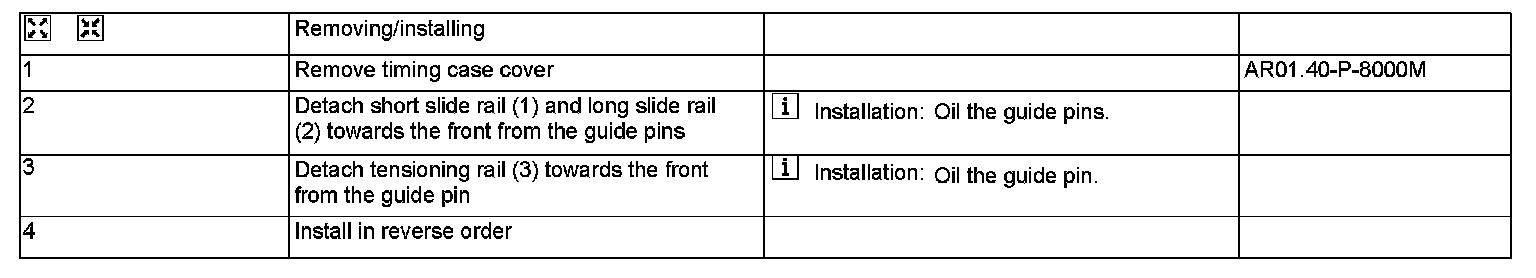

AR05.10-P-8500M Removing and installing tensioning rail and slide rail in timing case cover
