AR01.10-P-2510RX Remove/Install Engine From/Onto Front Axle Carrier



AR01.10-P-2510RX Remove/install engine from/onto front axle carrier

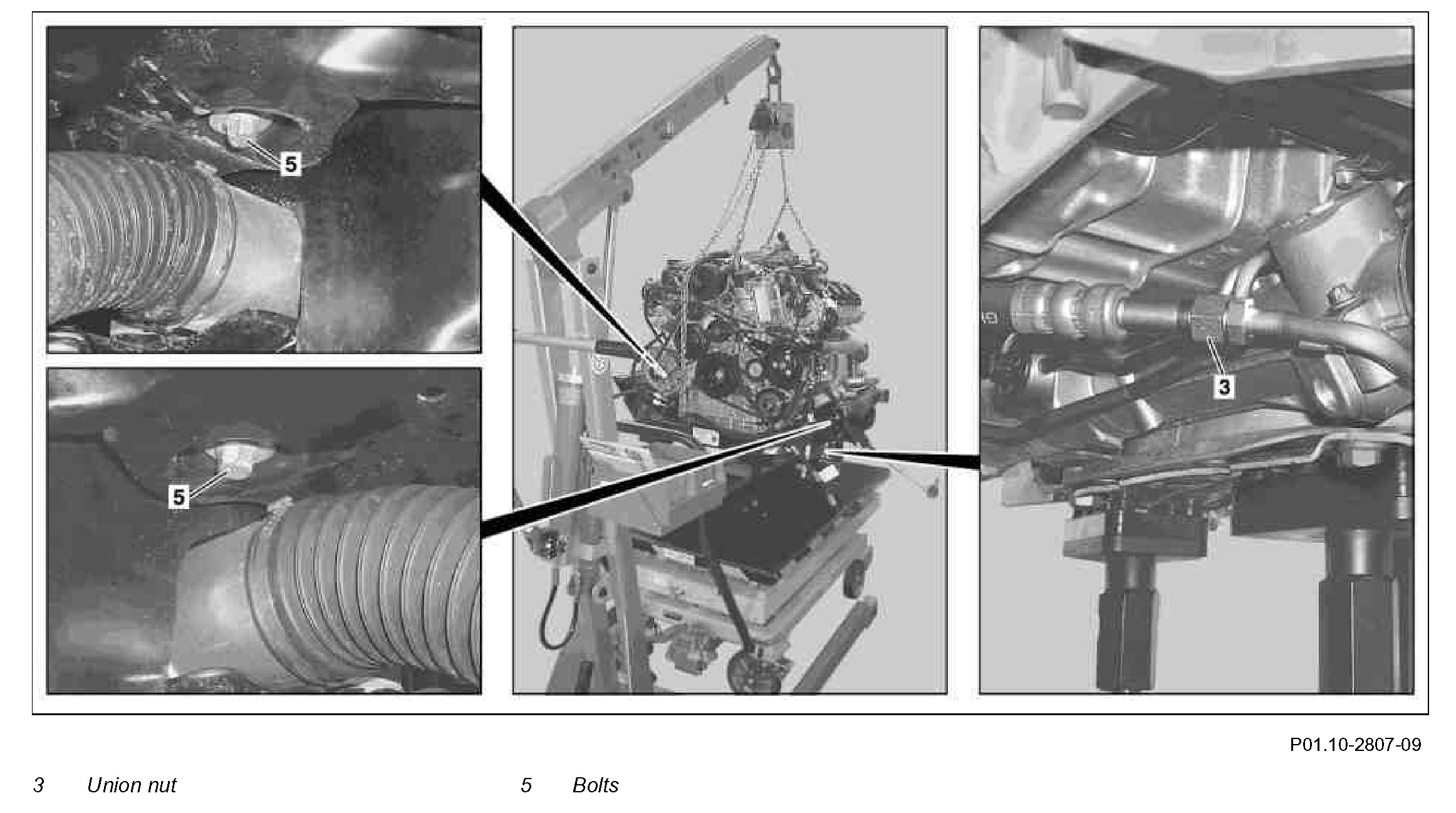

Component Identification:

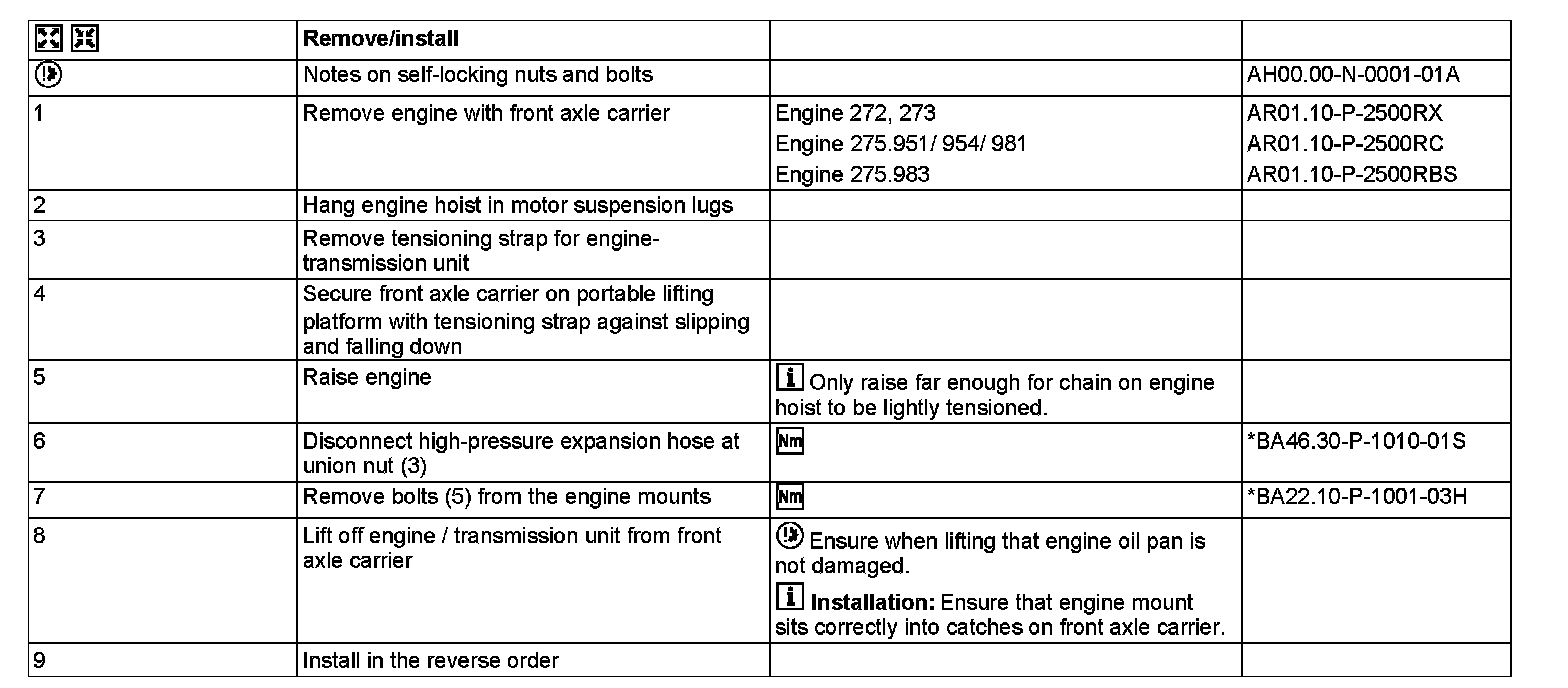

Steps 1-9:

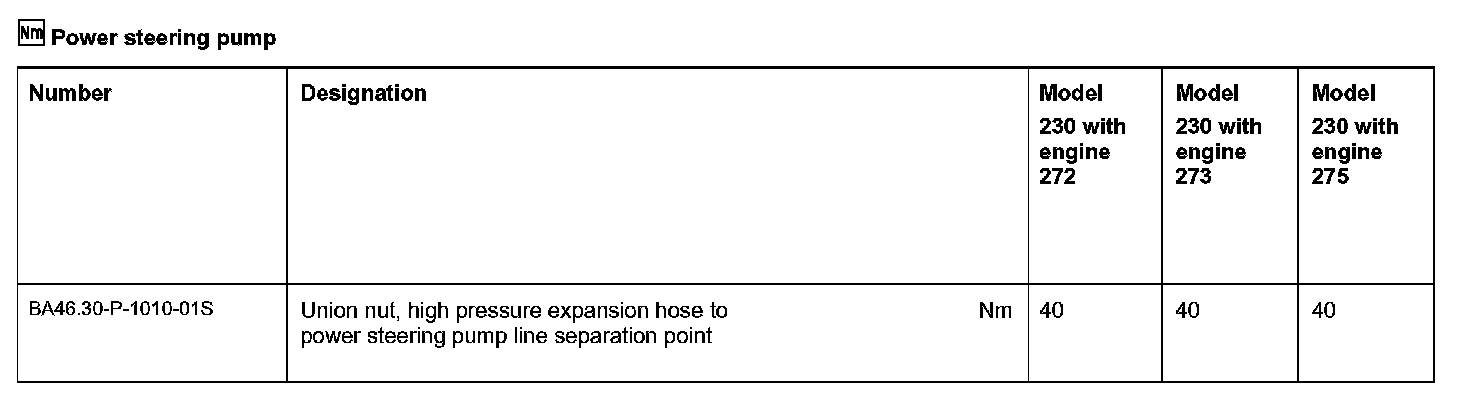

Power steering pump:

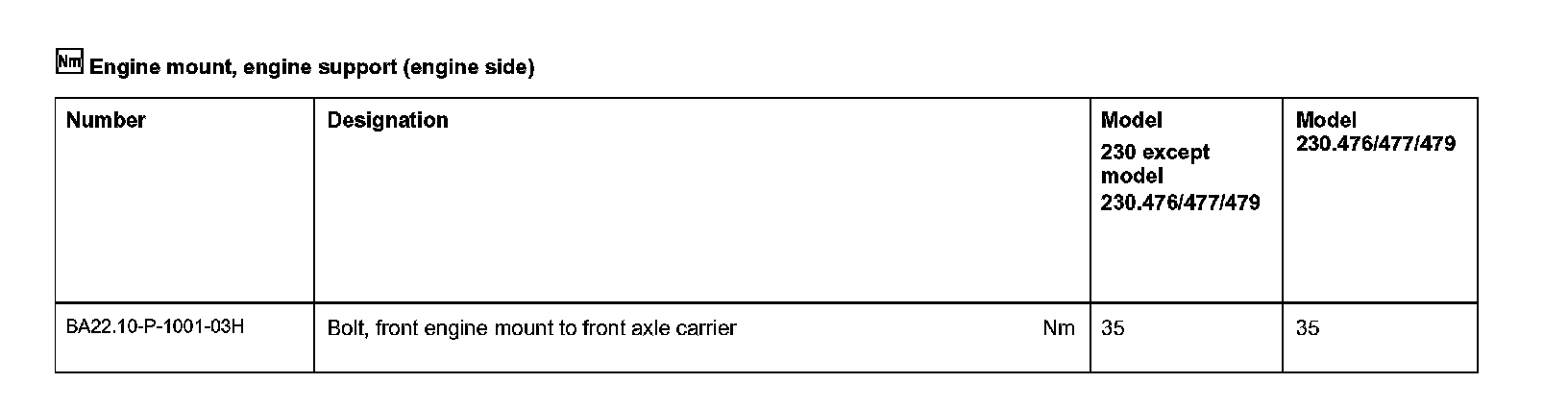

Engine mount, engine support (engine side):
