AR46.10-P-0400R Remove/Install Jacket Tube
AR46.10-P-0400R Remove/Install Jacket Tube
AR46.10-P-0400R Remove/install jacket tube

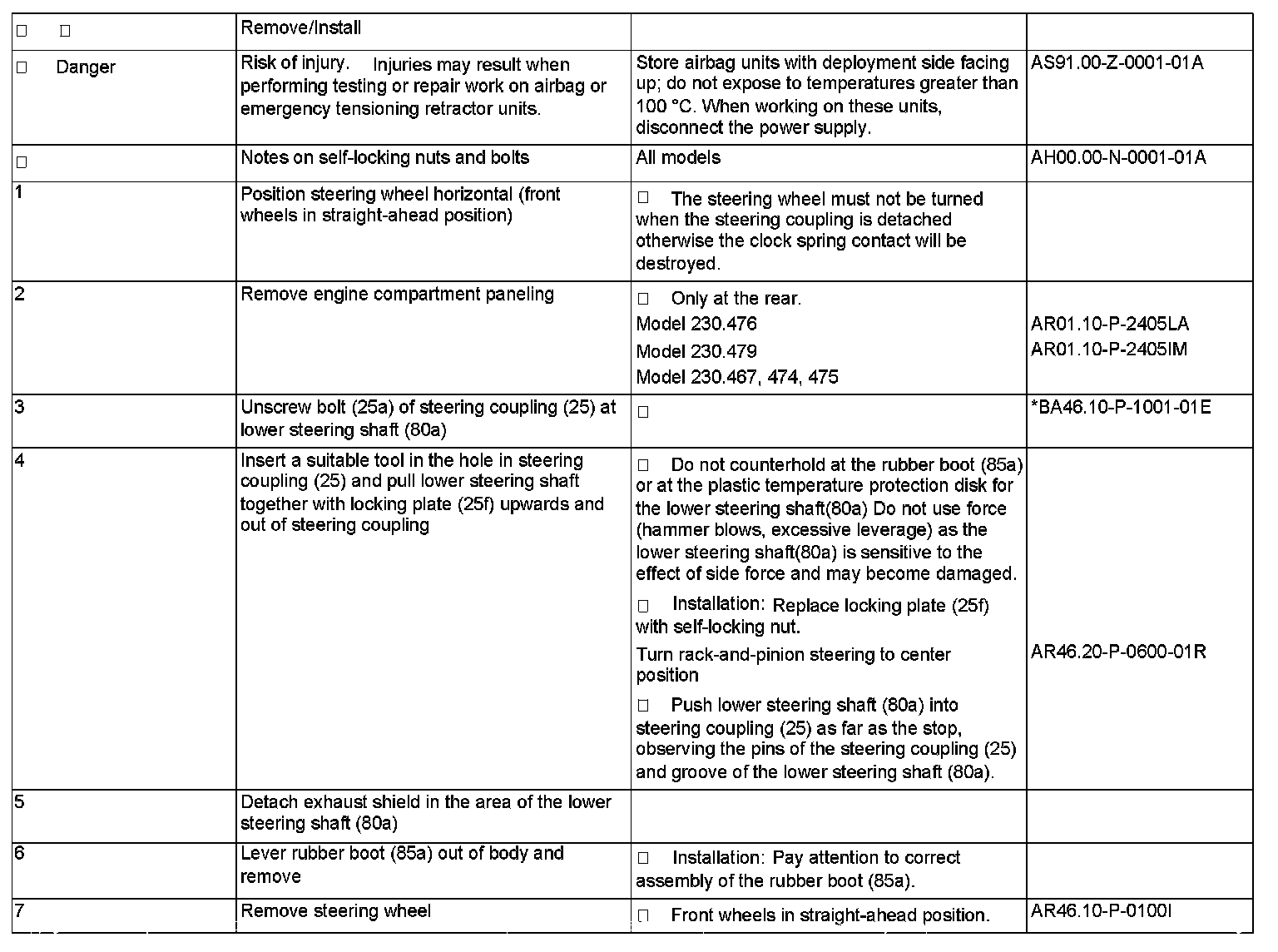

Steps 1-7:

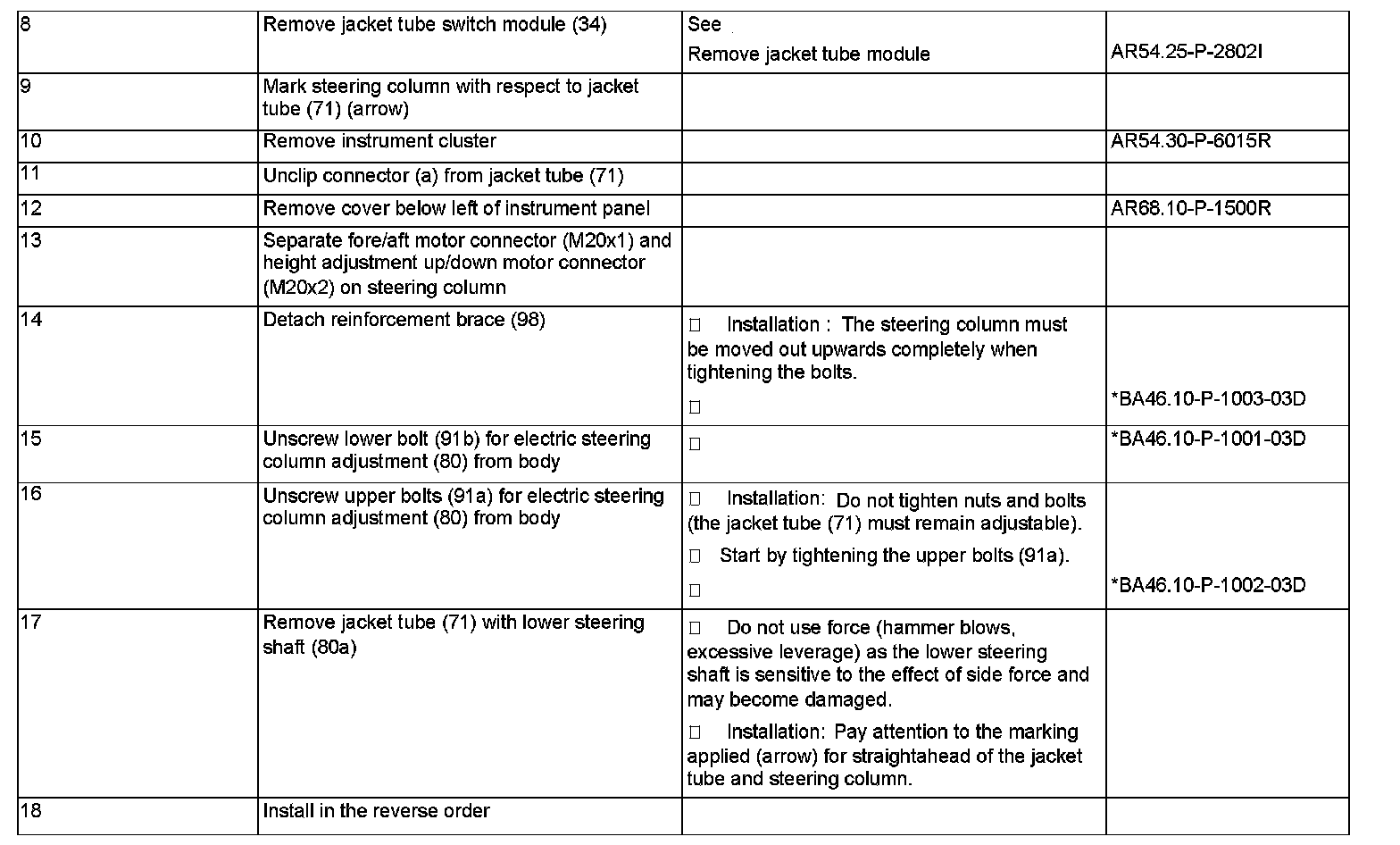

Steps 8-18:
