Solar Sensor: Service and Repair

AR83.40-P-6720R Remove/Install Sun Sensor







1.1 Switch ignition off and remove key from electronic ignition switch EIS
1.2 Switch engine off and remove Keyless Go card from vehicle

NOTE: With CODE (889) Keyless Go Keep Keyless Go card out of transmitting range.

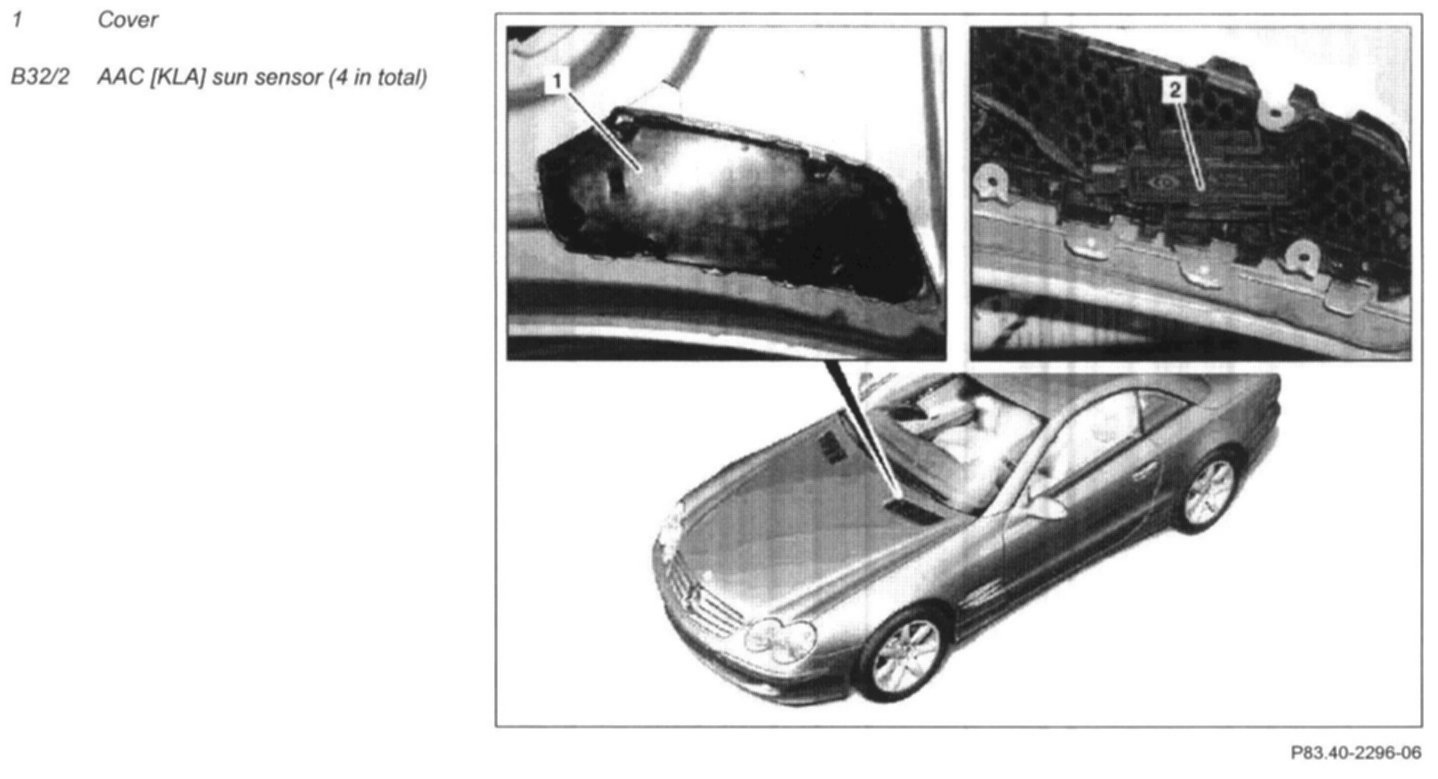

2 Remove cover (1)
3 Disconnect electrical connector from AAC [KLA] sun sensor (4 in total) (B32/2)
4 Unclip and remove AAC sun sensor (4 in total)
5 Install in the reverse order.
