Refrigerant Temperature Sensor
>>
Description and Operation
Refrigerant Temperature Sensor: Description and Operation

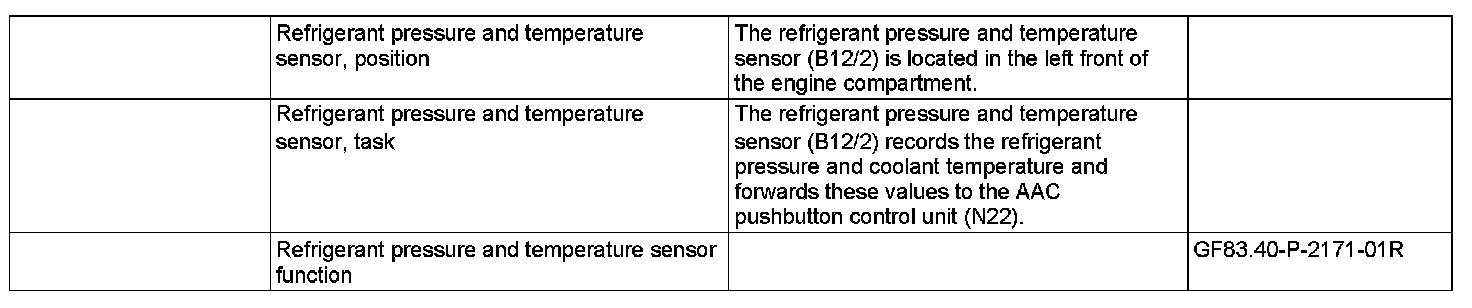

GF83.40-P-2171R Refrigerant Pressure And Temperature Sensor Location/task/function

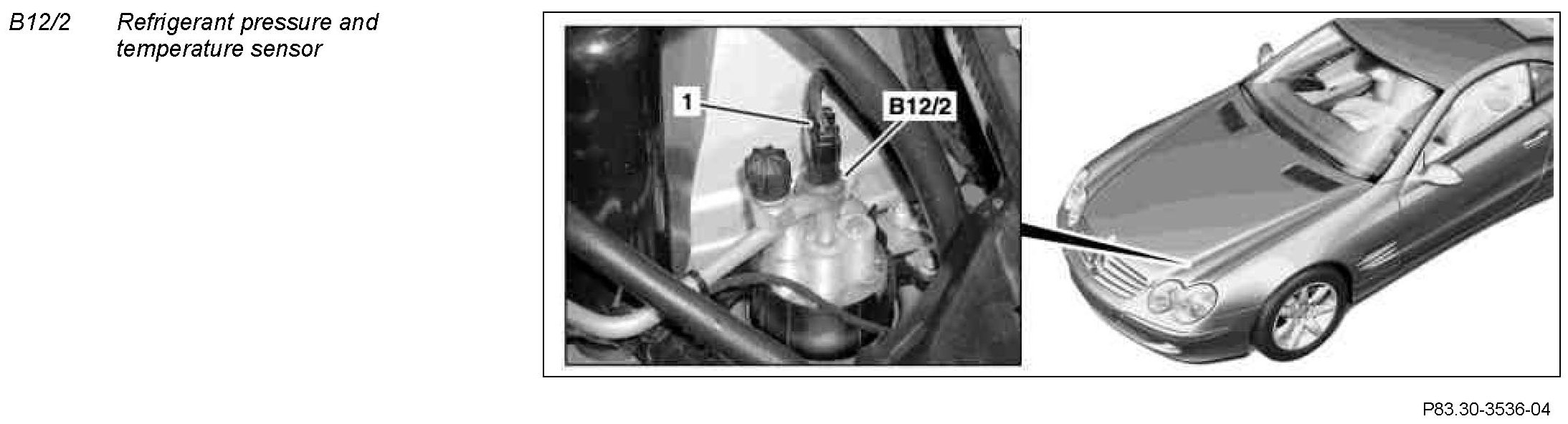

Component Identification:
