Home >> Mercedes Benz >> 2008 >> SL 55 AMG (230.472) V8-5.5L SC (113.995) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Door Lock Switch >> Service and Repair

Power Door Lock Switch: Service and Repair

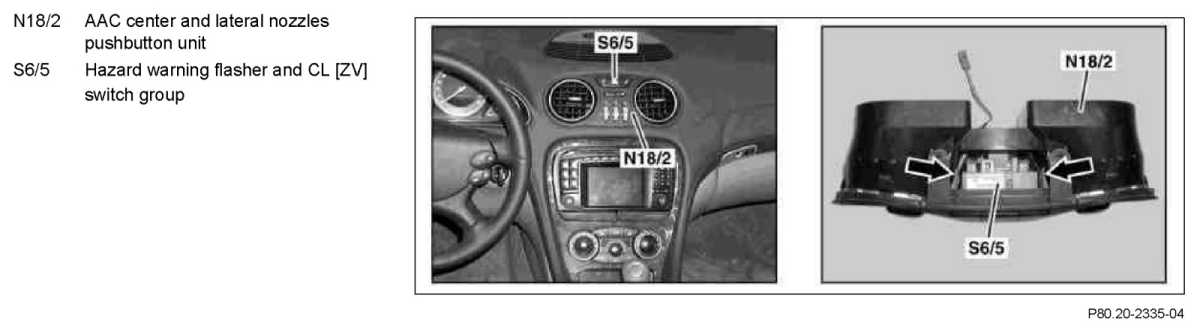

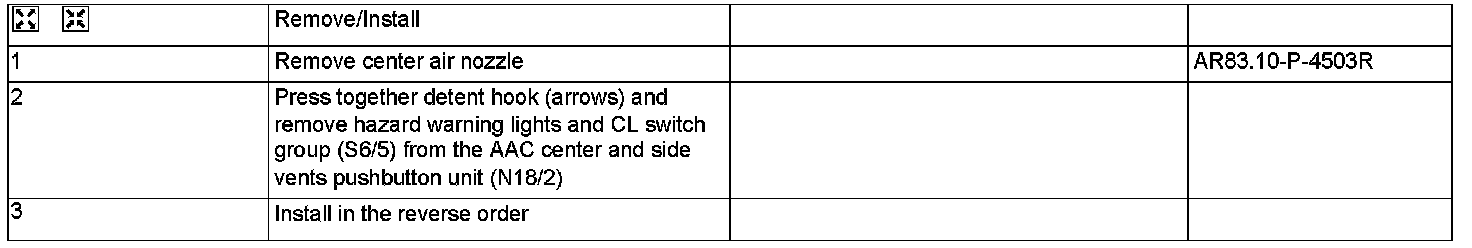

AR80.20-P-2660R Remove/Install Hazard Warning Flasher and CL Switch Group
