Mercedes Benz
>>
2008
>>
SL 55 AMG (230.472) V8-5.5L SC (113.995)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Sensors and Switches - Restraints and Safety Systems
>>
Impact Sensor
>>
Service and Repair
>>

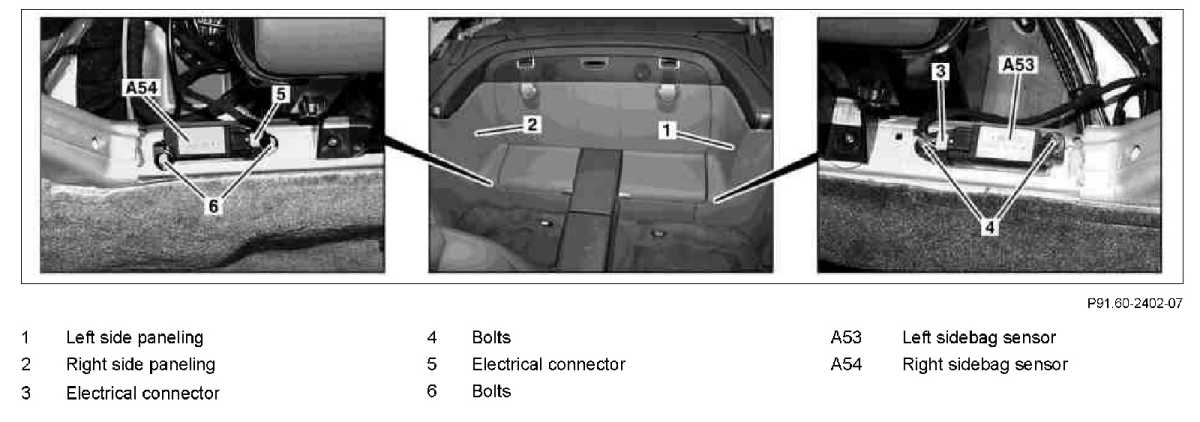

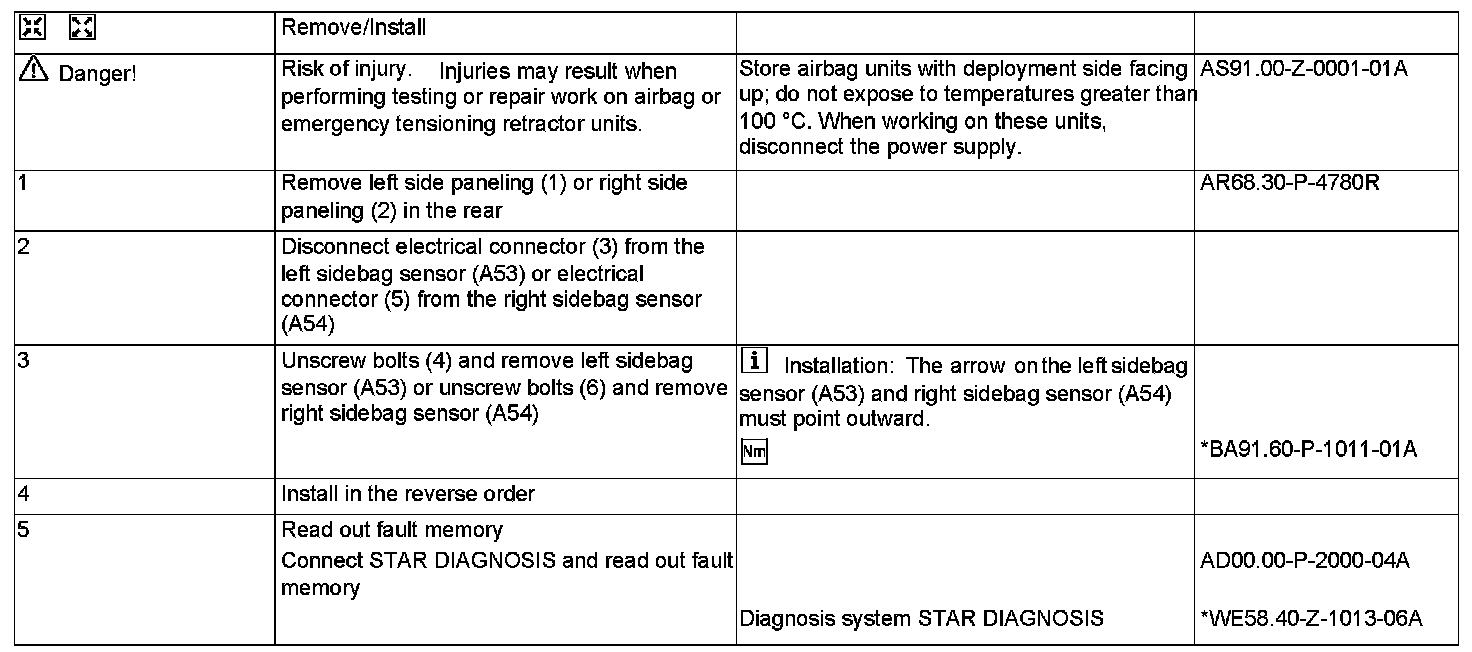

AR91.60-P-0730R Remove/Install Sensor For Sidebag/Windowbag
AR91.60-P-0730R Remove/Install Sensor For Sidebag/Windowbag
AR91.60-P-0730R Remove/Install Sensor For Sidebag/Windowbag

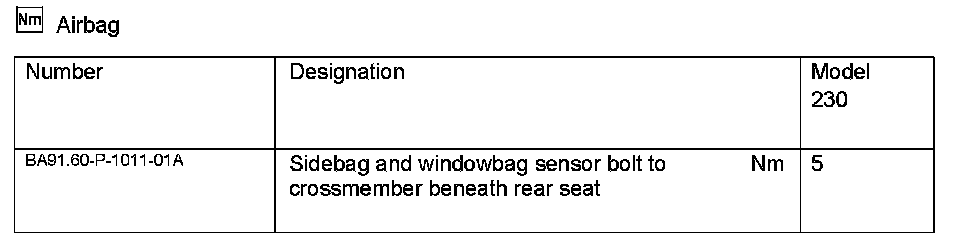

Airbag:
