Air Bag Control Module: Service and Repair

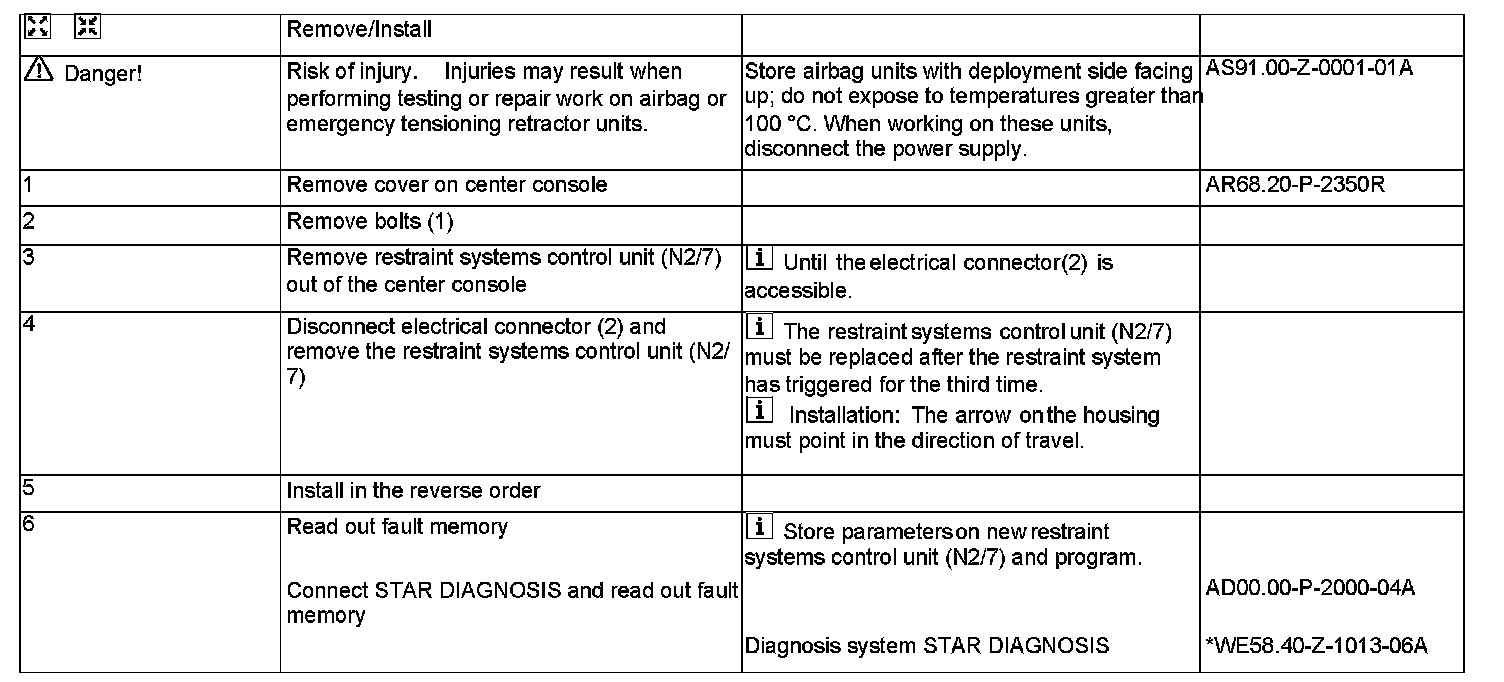

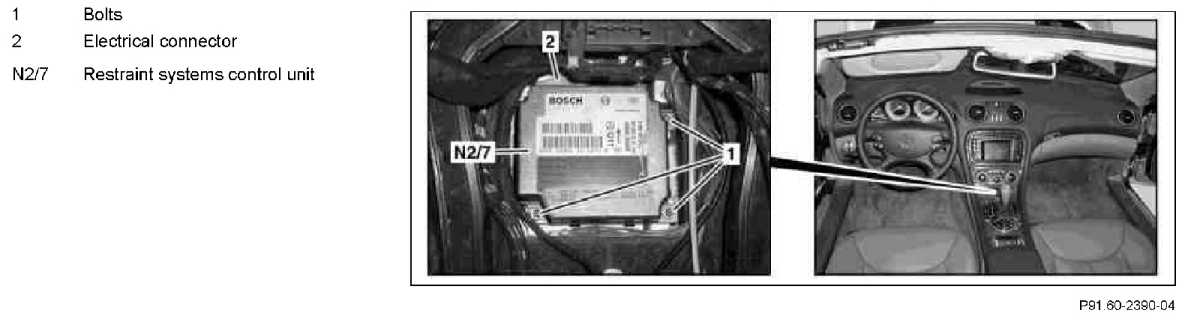

AR91.60-P-0623R Remove/Install Airbag, Sidebag and Belt Tensioner Control Unit
