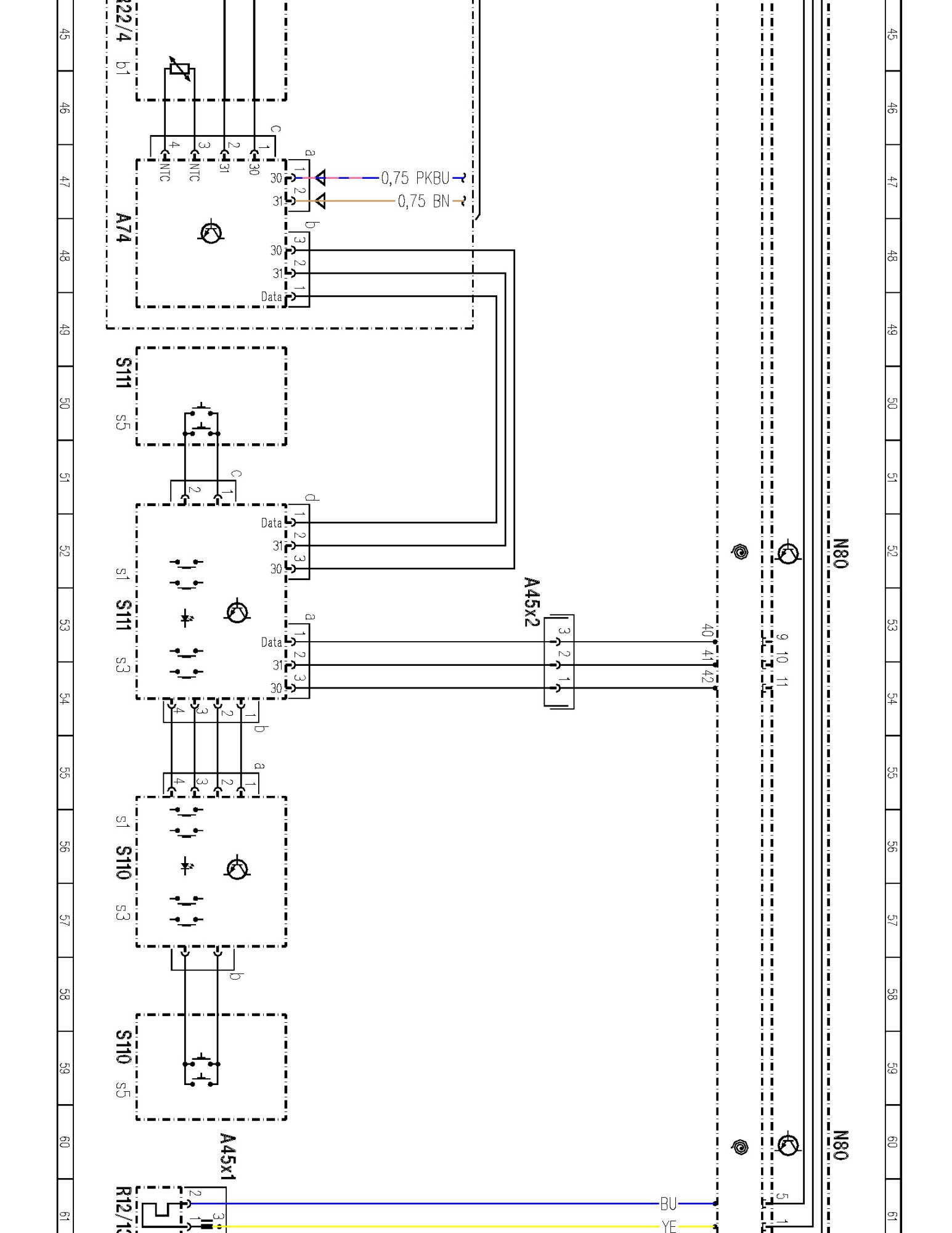

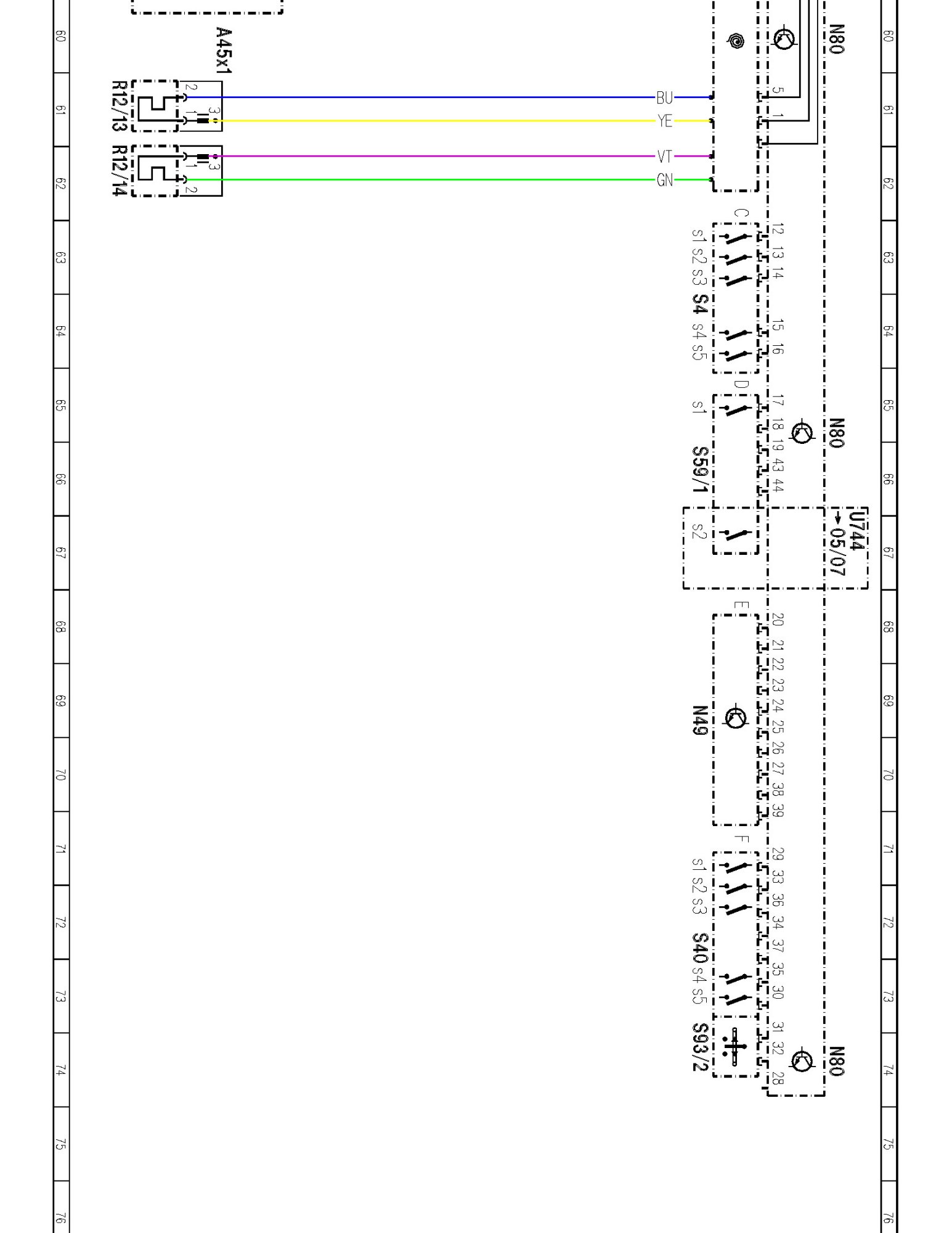

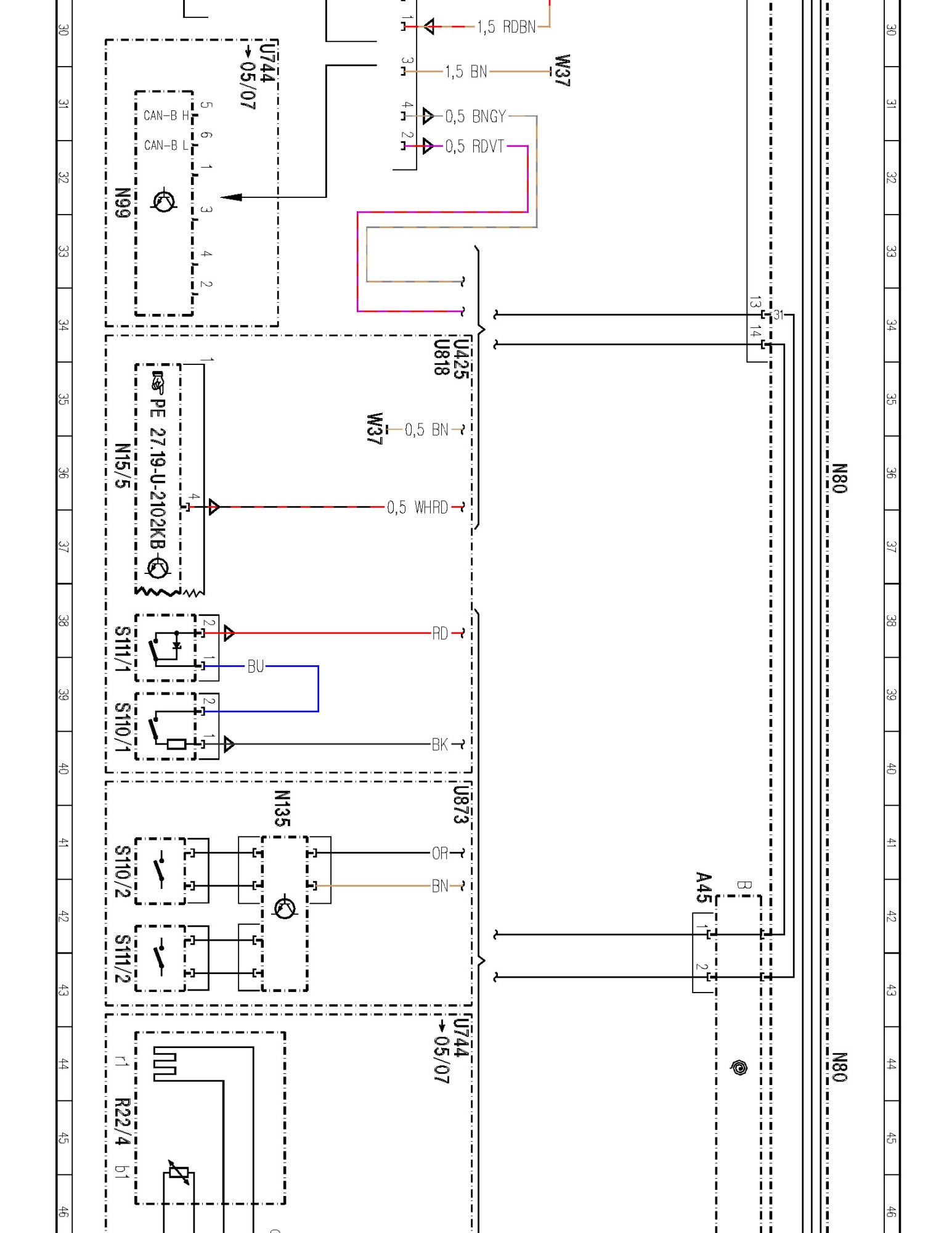

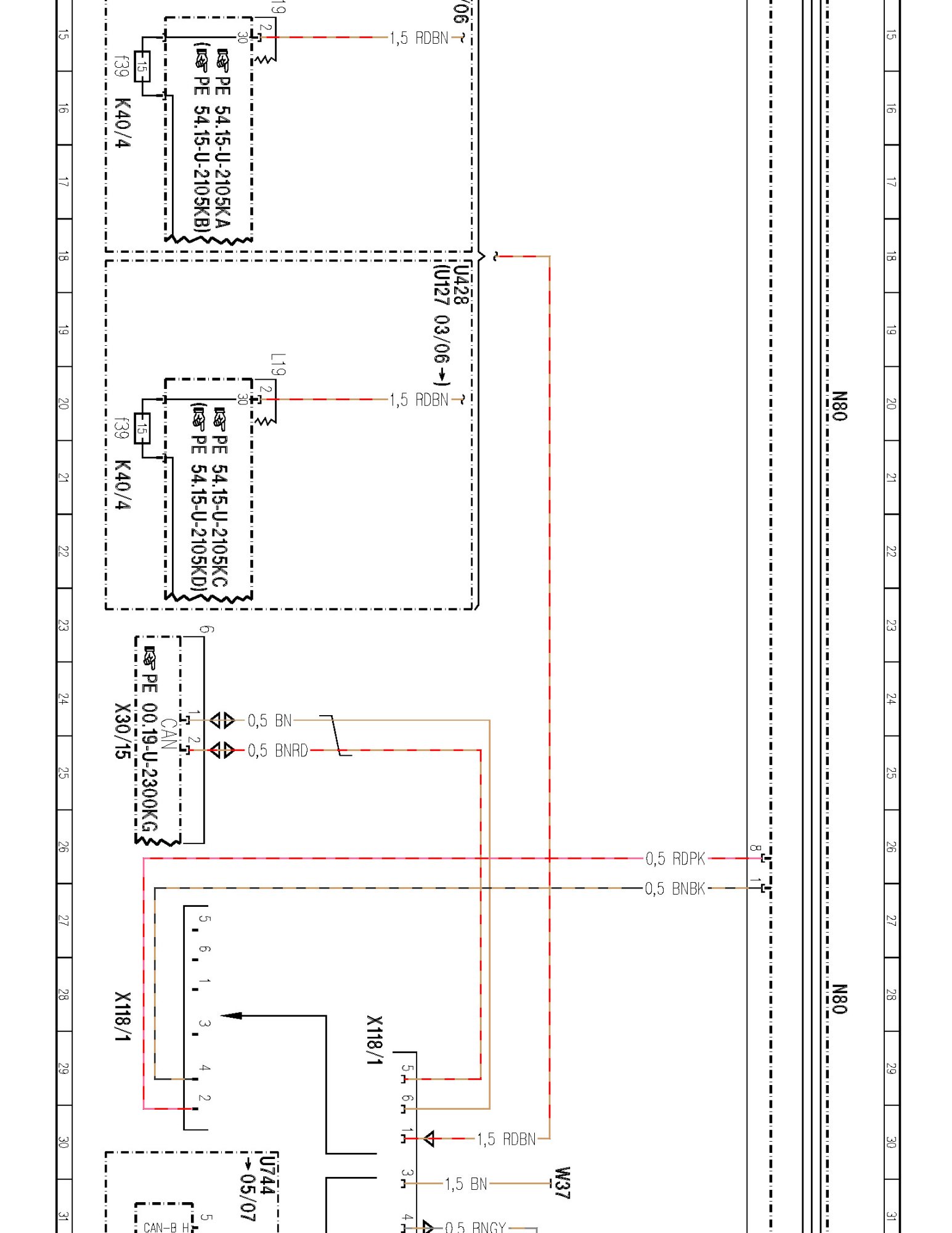

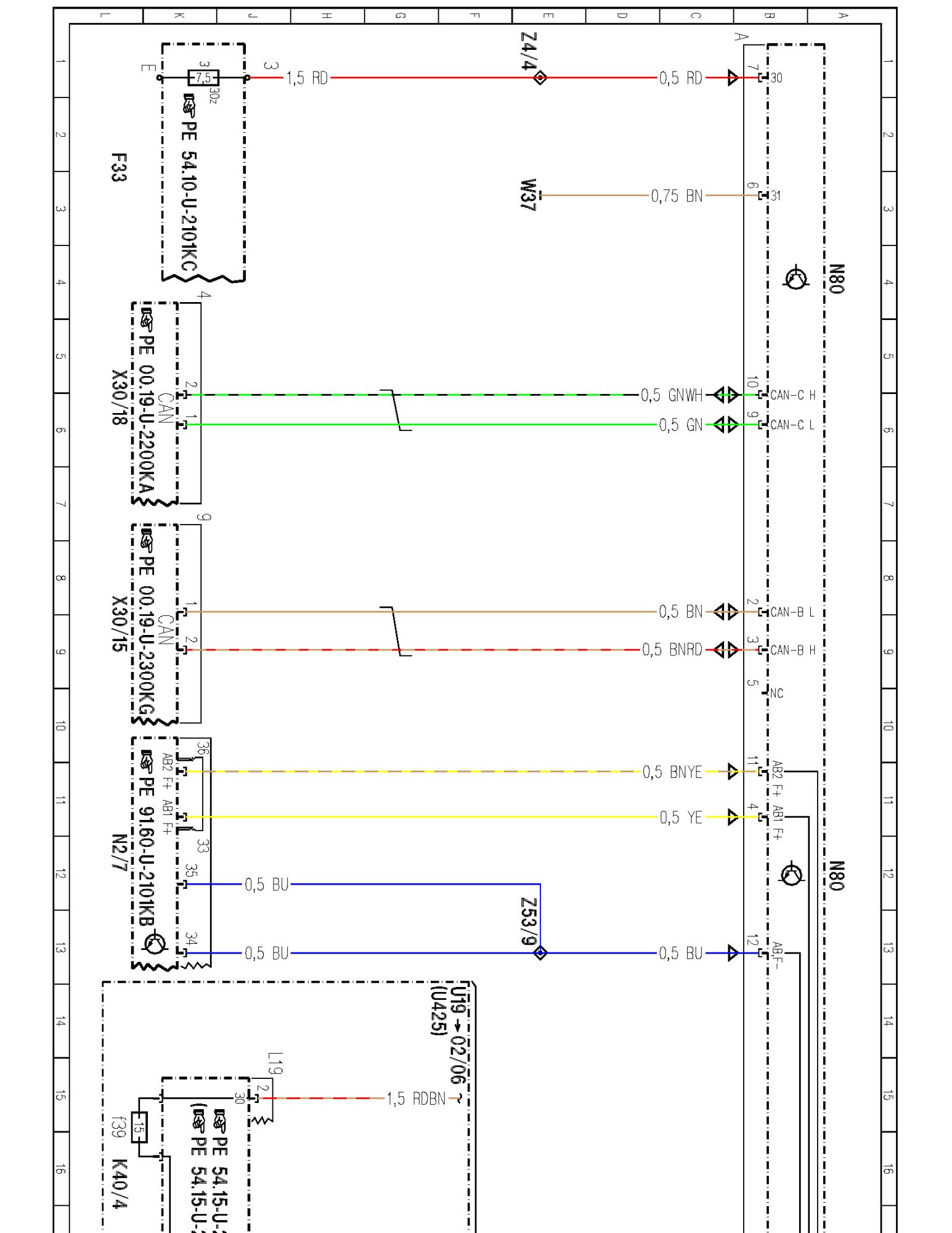

Steering Column Control Module: Diagrams

PE46.10-U-2101KB Steering Column Module, Control Module
- as of 09/01/03







































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
