AP00.20-P-0042RMG Reset Service Indicator [Serv. A - H]

AP00.20-P-0042RMG Reset service indicator

Important: Close trunk lid, engine hood and doors.

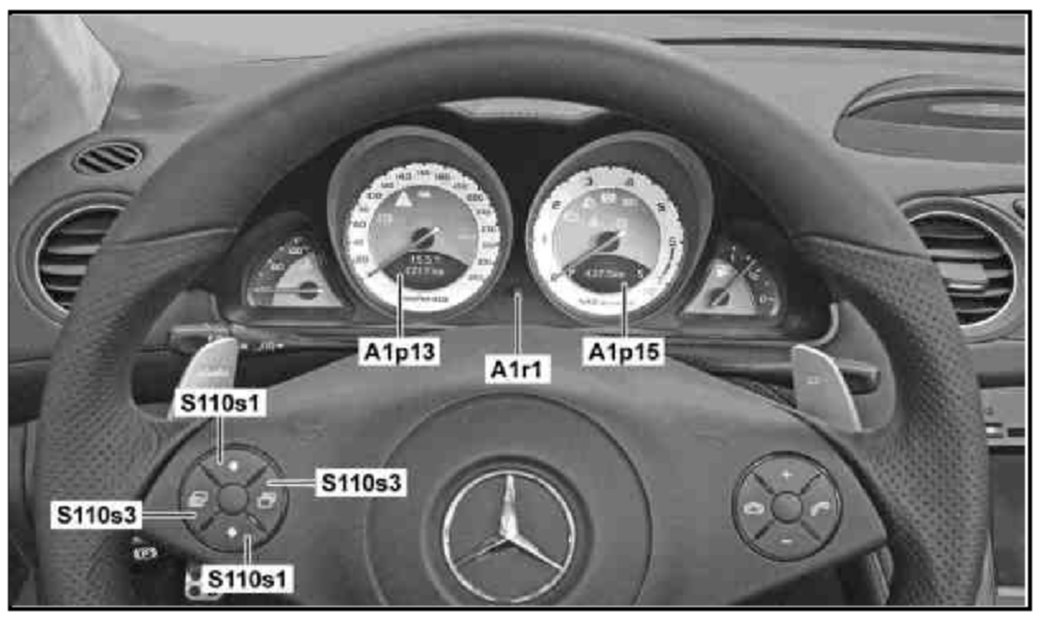

A1p13 Left multifunction display
A1p15 Right multifunction display
A1r1 Instrument illumination brightness control and reset button
S110s1 Scroll forward/back button
S110s3 System selection button

Adjust

1. Switch on ignition
2. Press the system selection button (S110s3) repeatedly until the total mileage reading is shown in the left multifunction display (A1p13)
3. Press the scroll forward/back button (S110s1) repeatedly until the service symbol is shown in the left multifunction display (A1p13)
4. Press and hold brightness control for instrument illumination and reset knob (A1r1) for approximately 5 seconds
In the right, left multifunction displays (A1p13, A1p15) "SERVICE INTERVAL...Reset: Press reset button for 3 seconds"

5. Press and hold brightness control for instrument illumination and reset knob (A1r1) for approximately 3 seconds
In the right, left multifunction display, (A1p13, A1p15) "The service interval was reset" appears

6. Switch off ignition
