FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2008
>>
SL 55 AMG (230.472) V8-5.5L SC (113.995)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Tune-up and Engine Performance Checks
>>
Compression Check
>>
Testing and Inspection
>>
AR01.00-P-1200RVK Test Compression Pressure
AR01.00-P-1200RVK Test Compression Pressure
AR01.00-P-1200RVK Test compression pressure

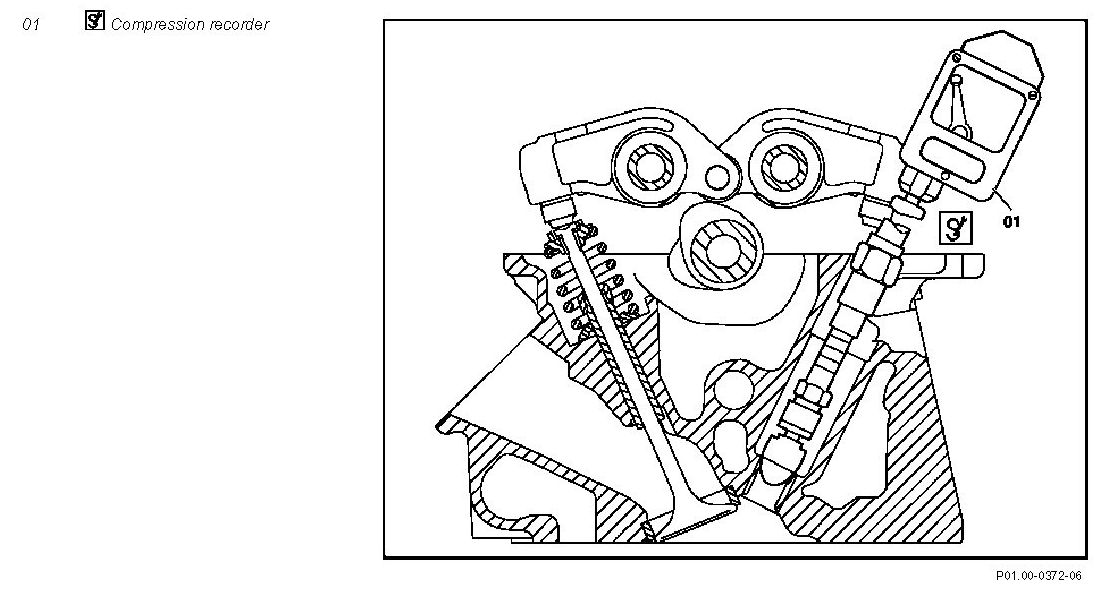

Component Identification:

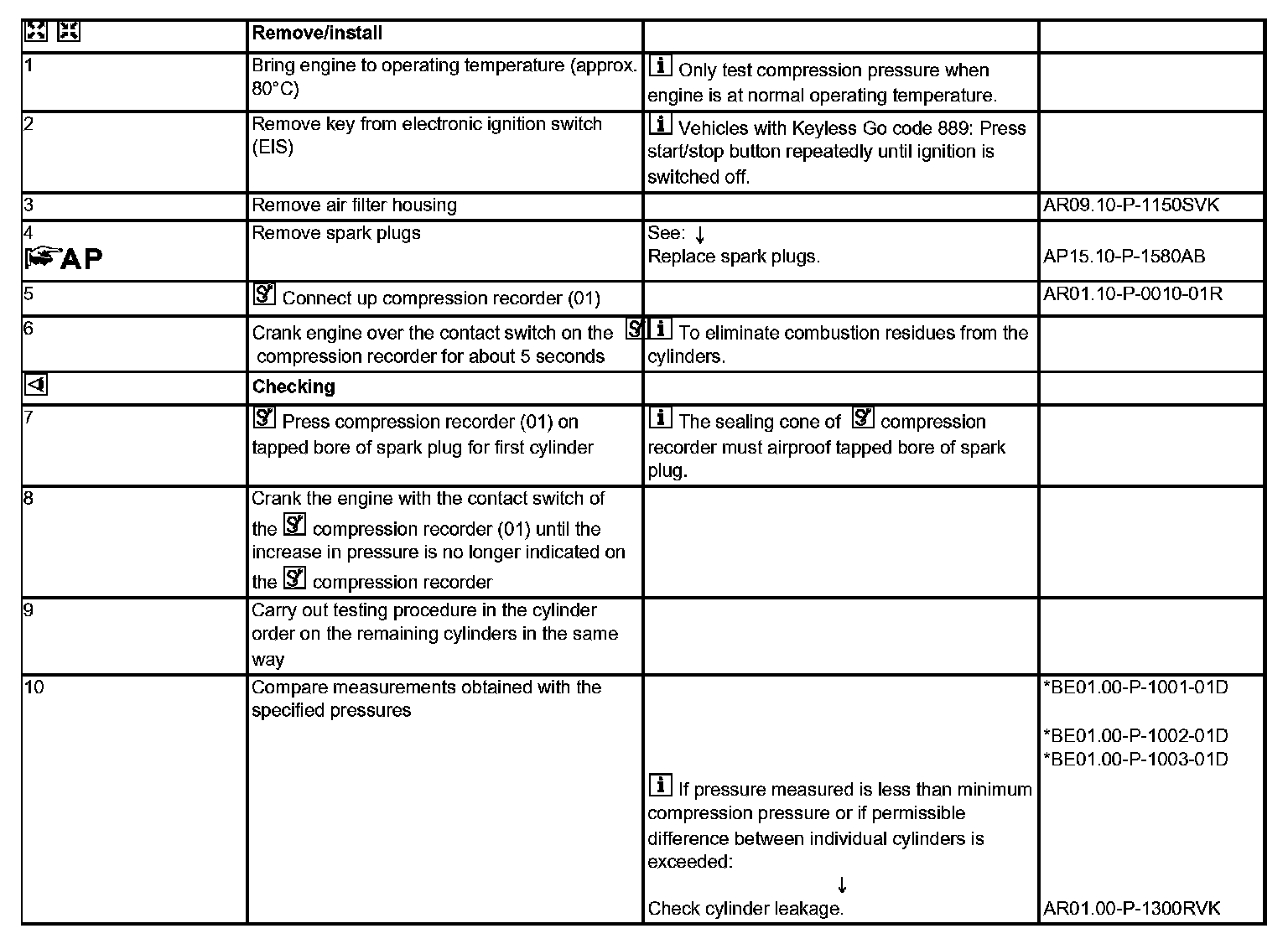

Remove/install Steps 1-10:
Remove/install Step 11:
Compression pressure:
