AR05.10-P-6858RVK Check The Engine Valve Timing



AR05.10-P-6858RVK Check the engine valve timing

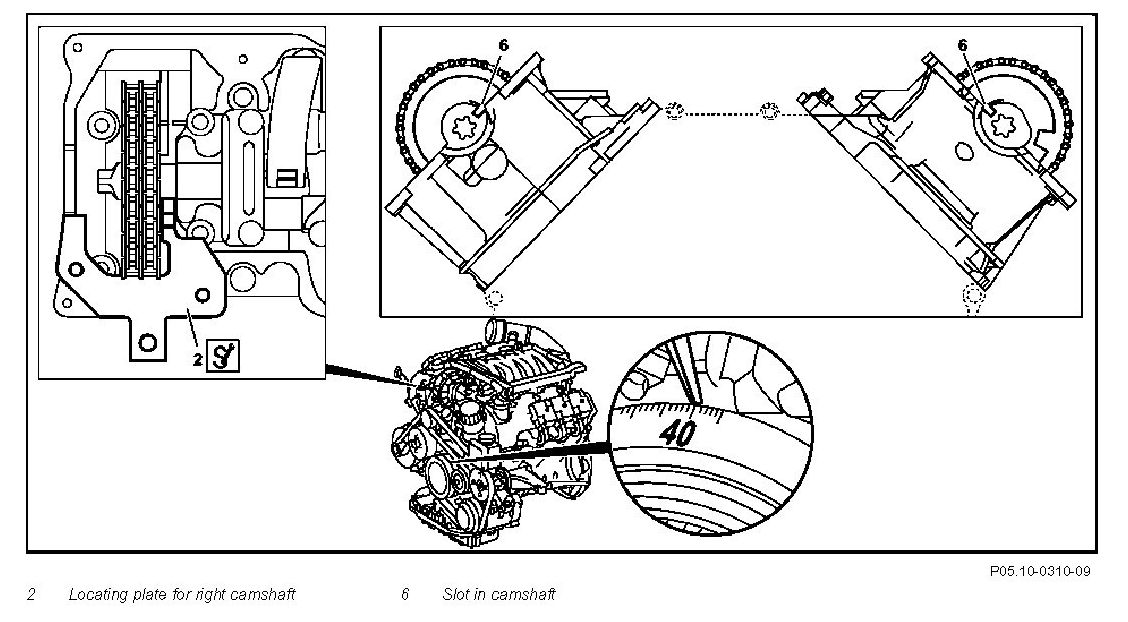

Component Identification:

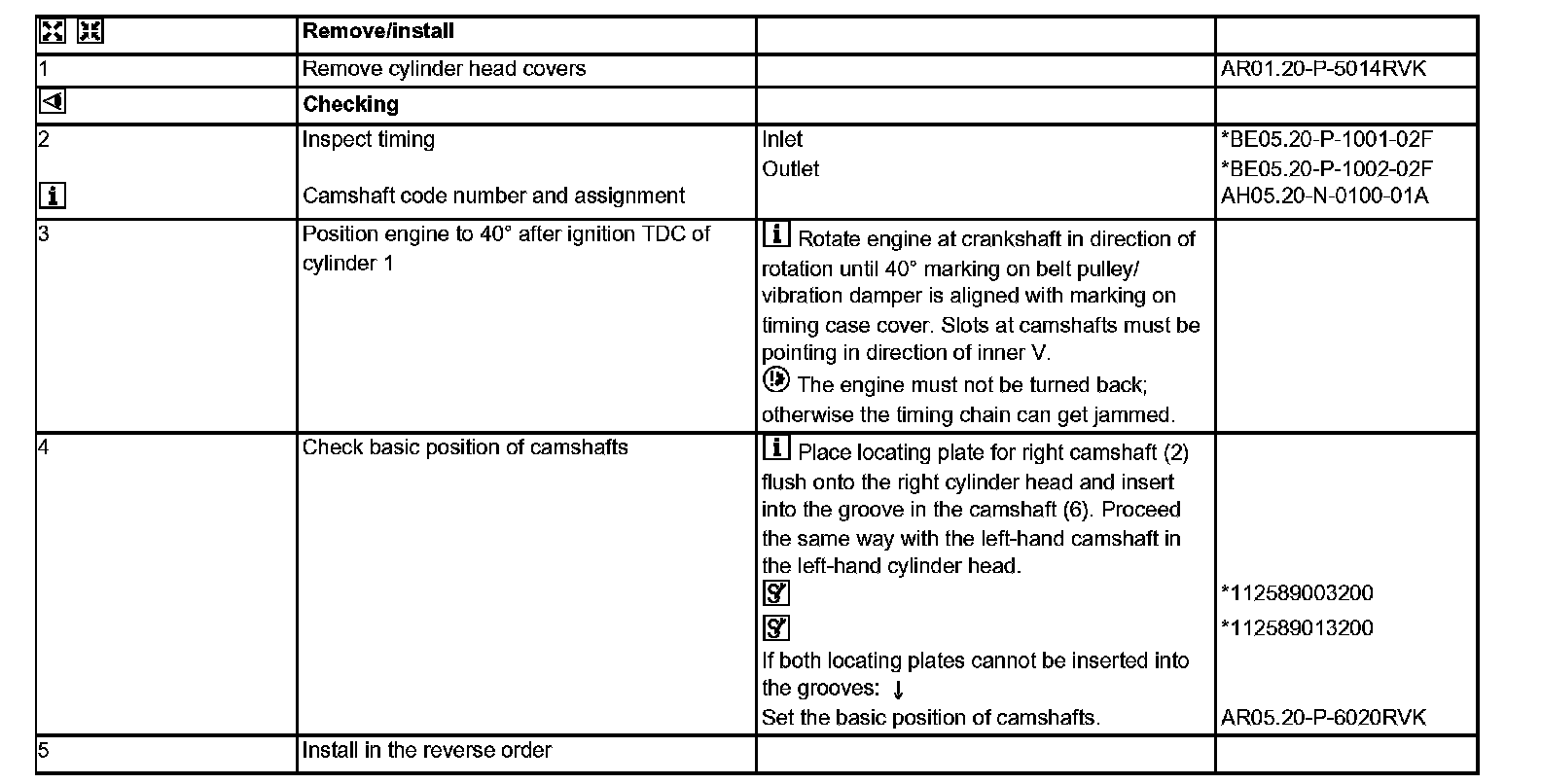

Remove/install Steps 1-5:

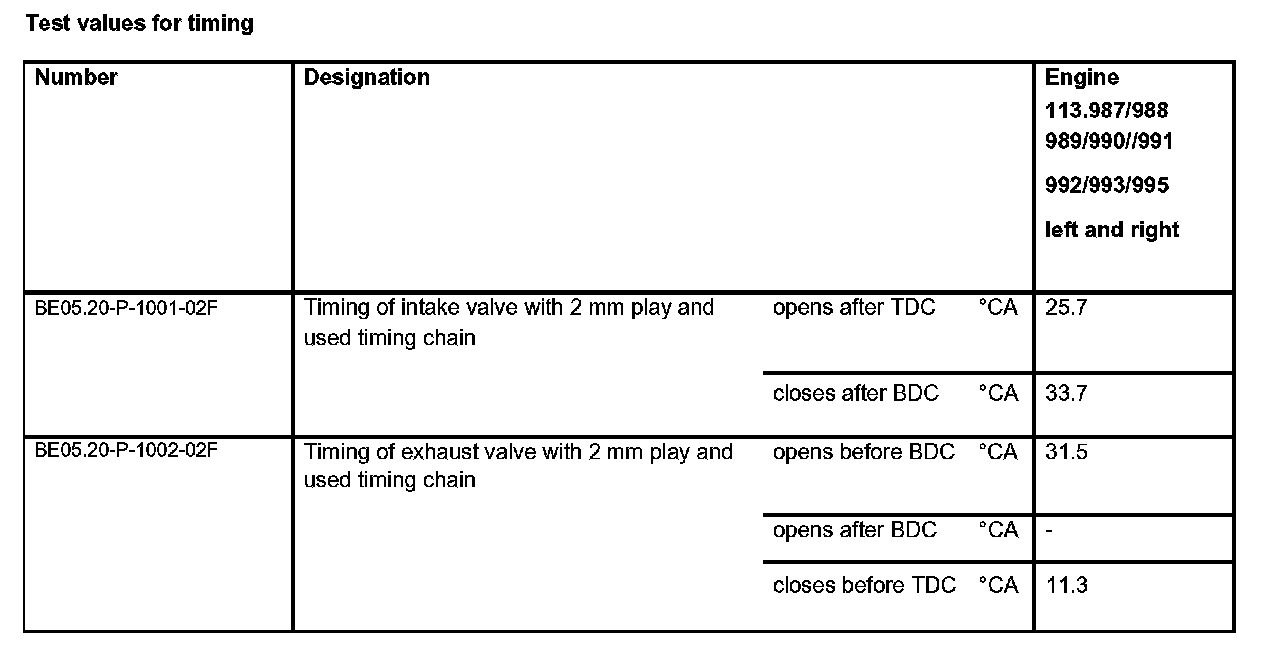

Test values for timing:

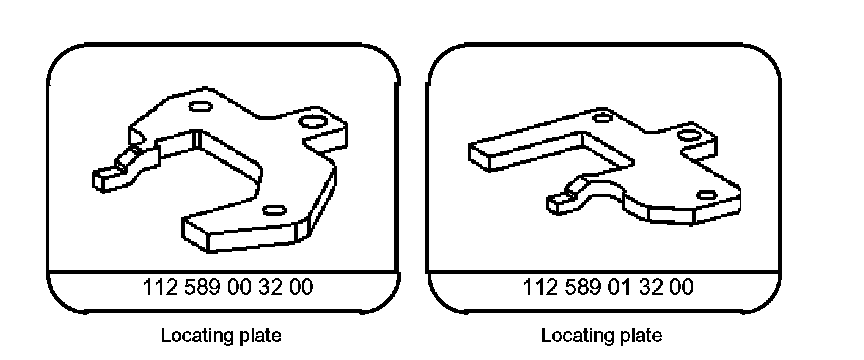

Special Tools:
