Engine Oil Pressure: Testing and Inspection



AR18.00-P-1250RKV Check oil pressure

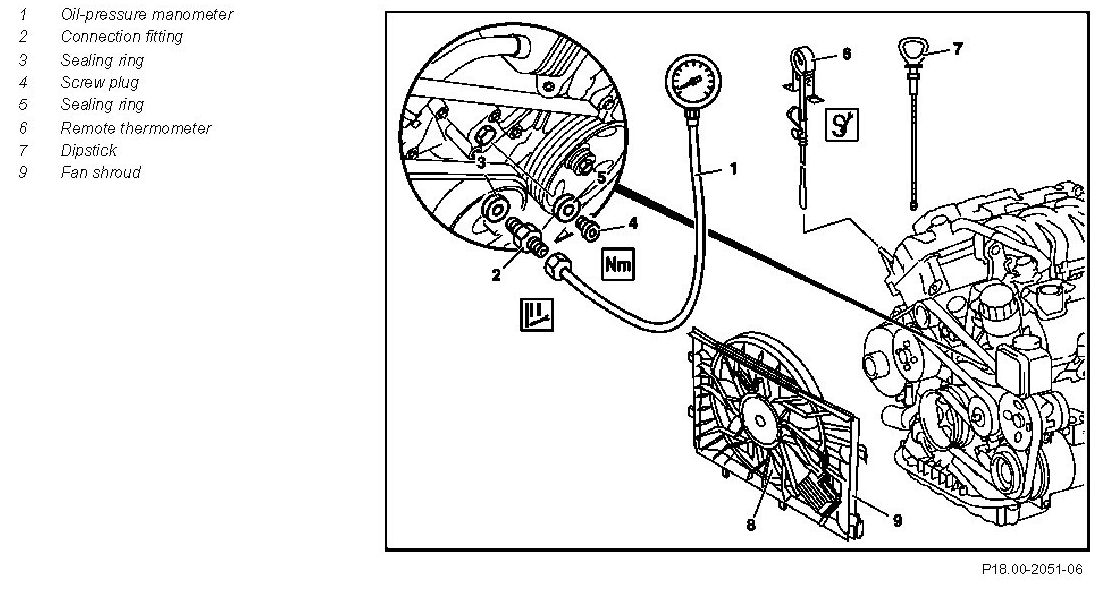

Component Identification:

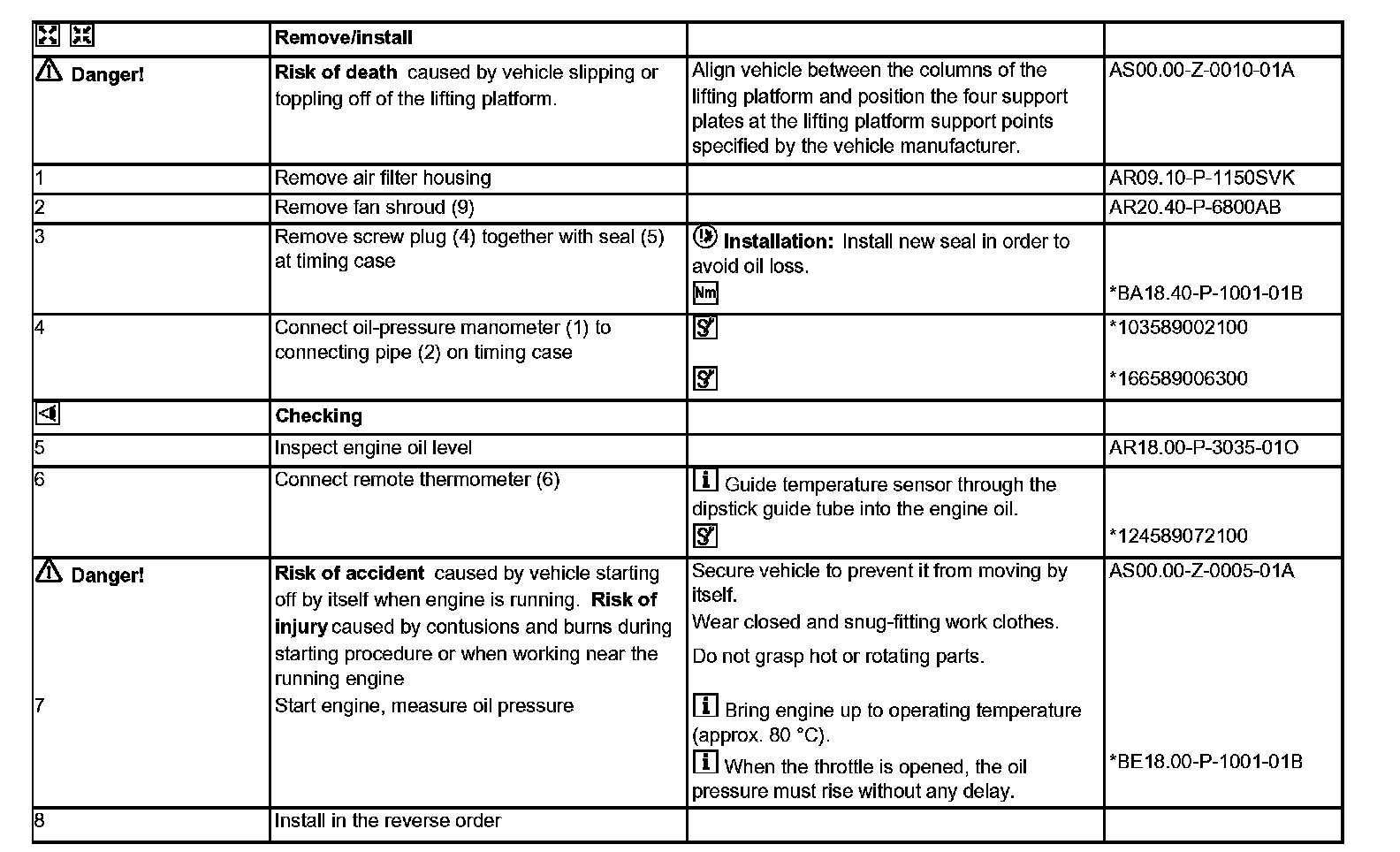

Remove/install Steps 1-8:

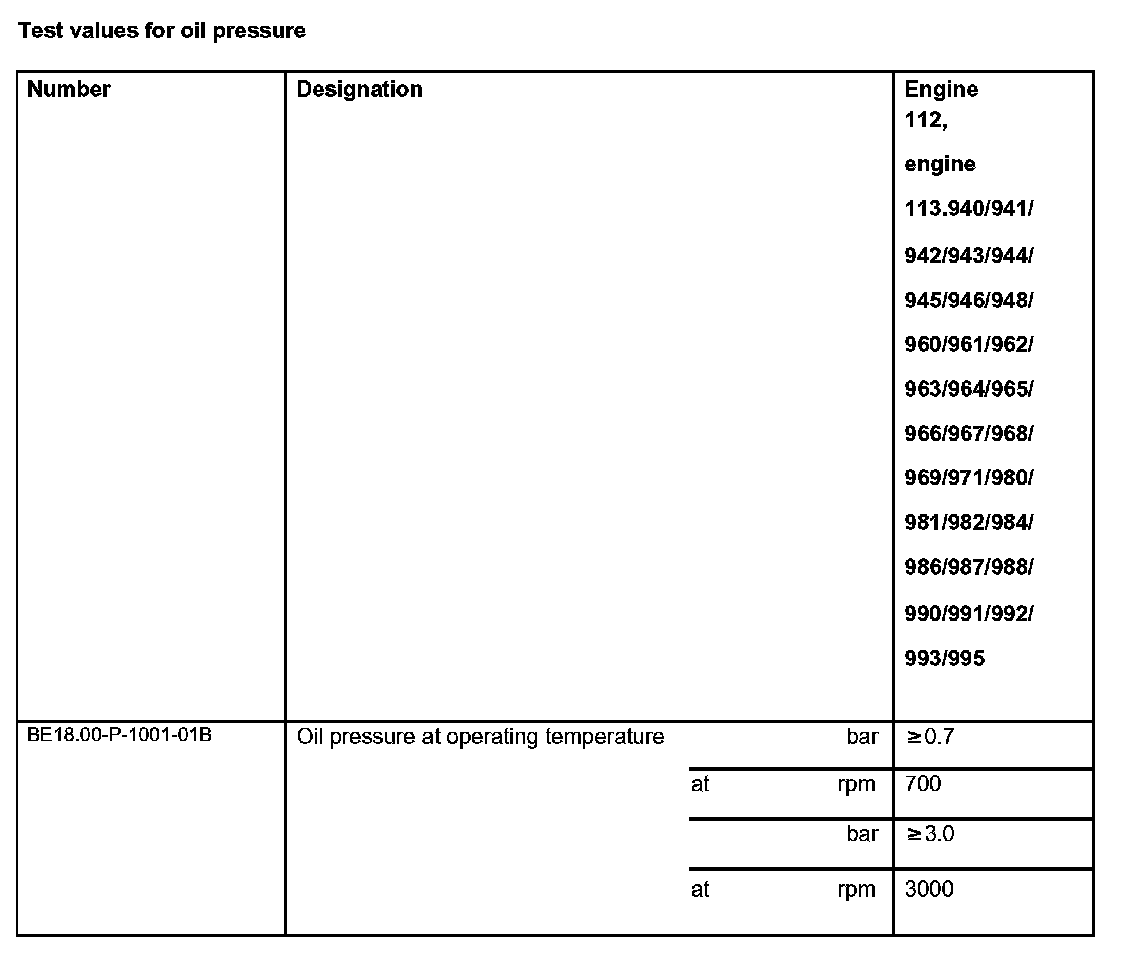

Test values for oil pressure:

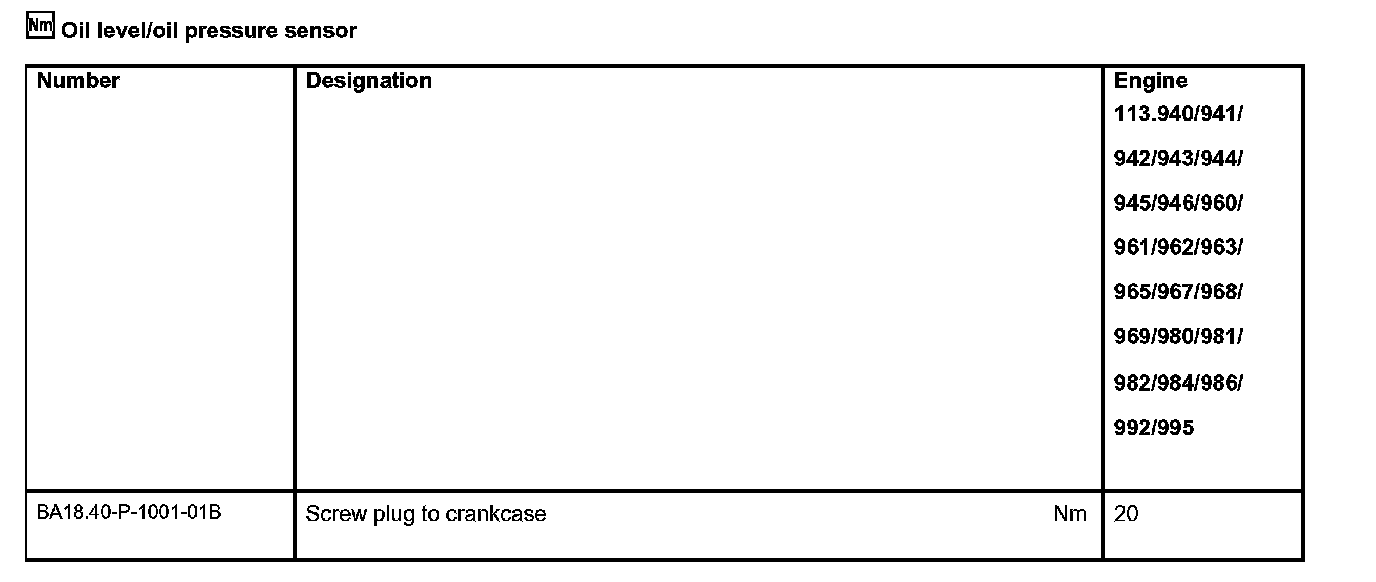

Oil level/oil pressure sensor:

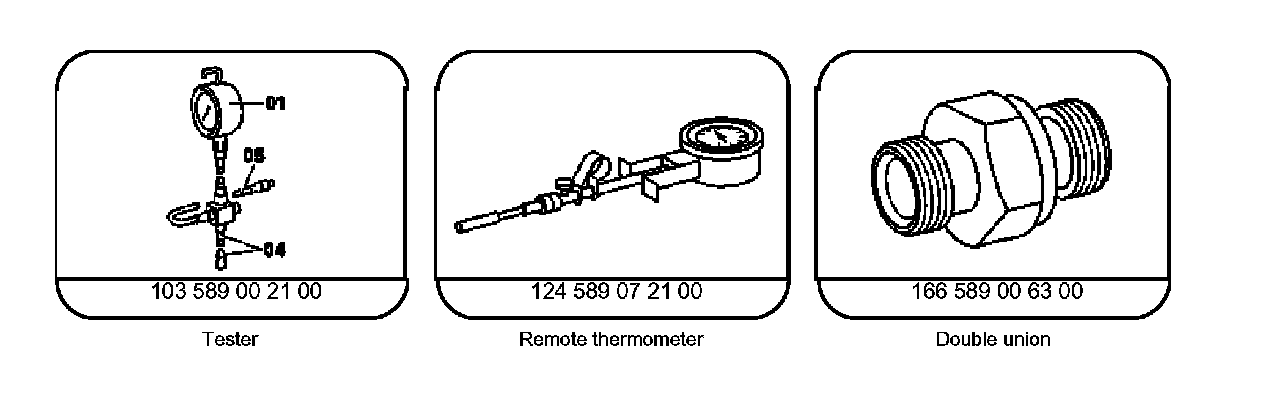

Special Tools:
