AR01.45-P-7500R Remove/Install Oil Pan

Remove/Install Oil Pan






DANGER:
- Risk of death. Death may result if vehicle slips or topples from the lifting platform.
- Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.

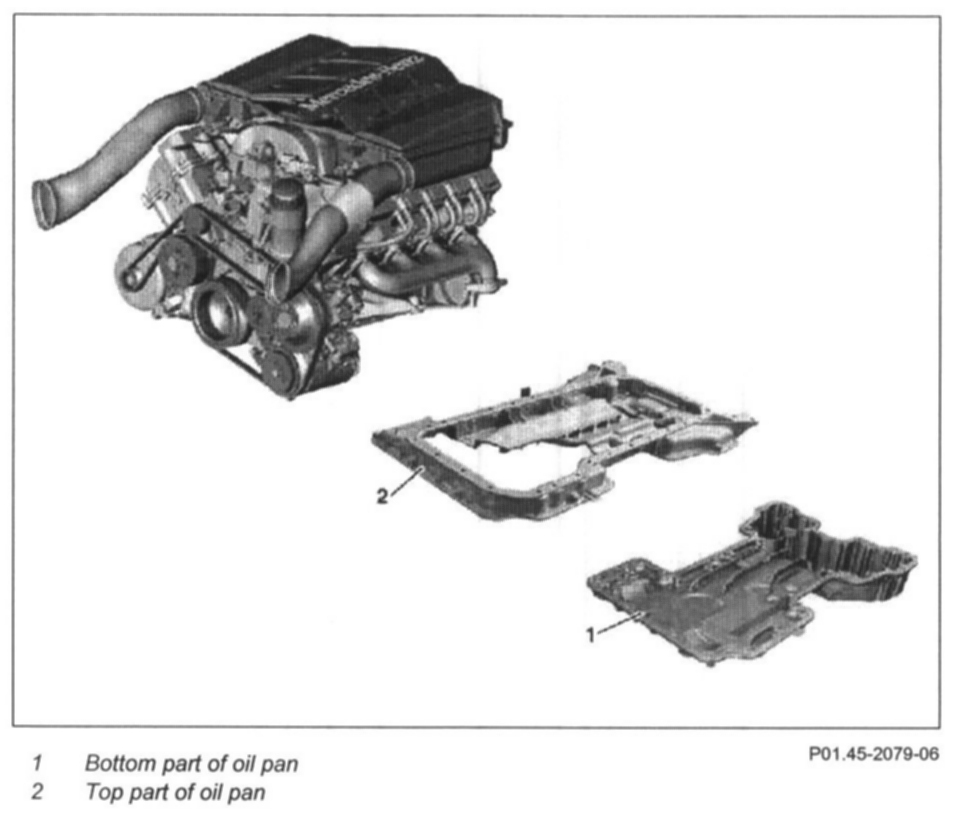

1 Remove oil pan bottom section (1)
2 Remove top part of oil pan (2)

NOTE: Installation:
- Observe different bolt lengths and bolt diameters!
- Clean sealing surfaces, apply sealing compound to the sealing surfaces in the form of a bead with a height and width of 2.0 mm ± 0.5 mm! The sealant must be applied within 10 minutes. The silicone bead must not be spread.

3 Install in the reverse order.

DANGER:
- Risk of accident. Accidents may result if the vehicle starts off unintentionally with the engine running. Risk of injury as working around the engine during start-up or while running may result in contusions and burns.
- Secure vehicle to prevent it from moving.
- Wear closed and snug-fitting work clothes.
- Do not grasp hot or rotating parts.

4 Run engine and inspect for leaks.
