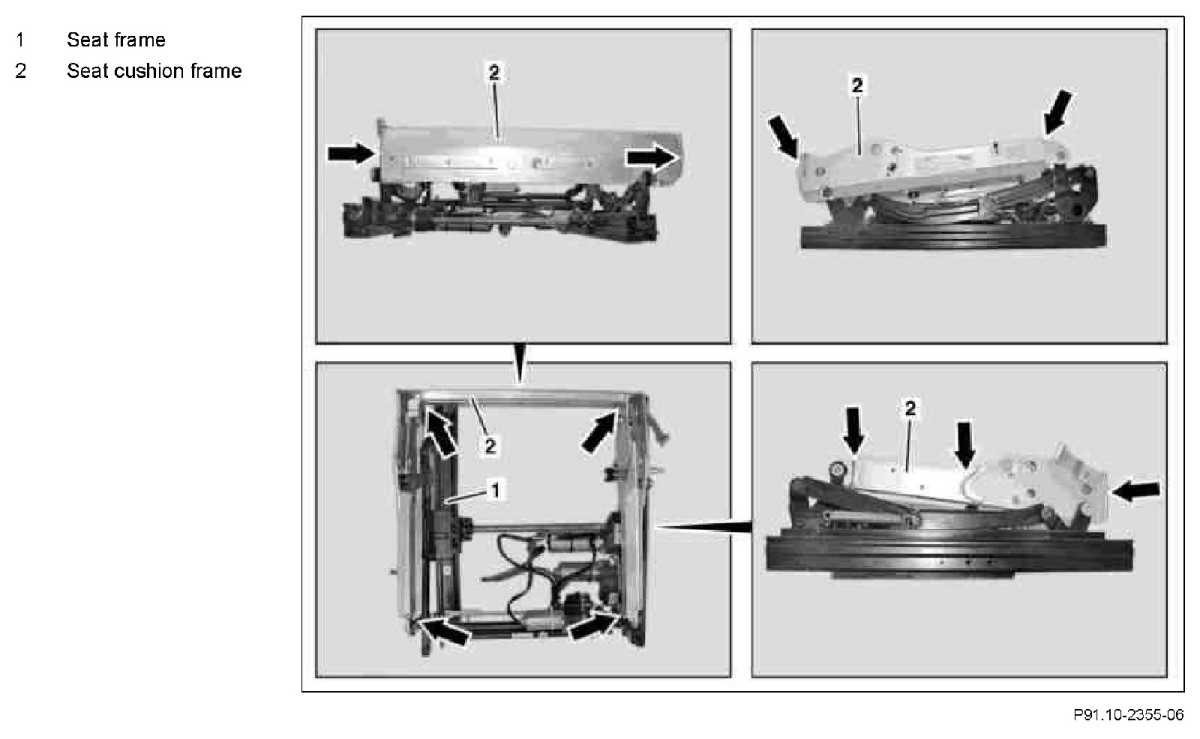

AR91.10-P-3335R Check Seat Frame



AR91.10-P-3335R Check Seat Frame

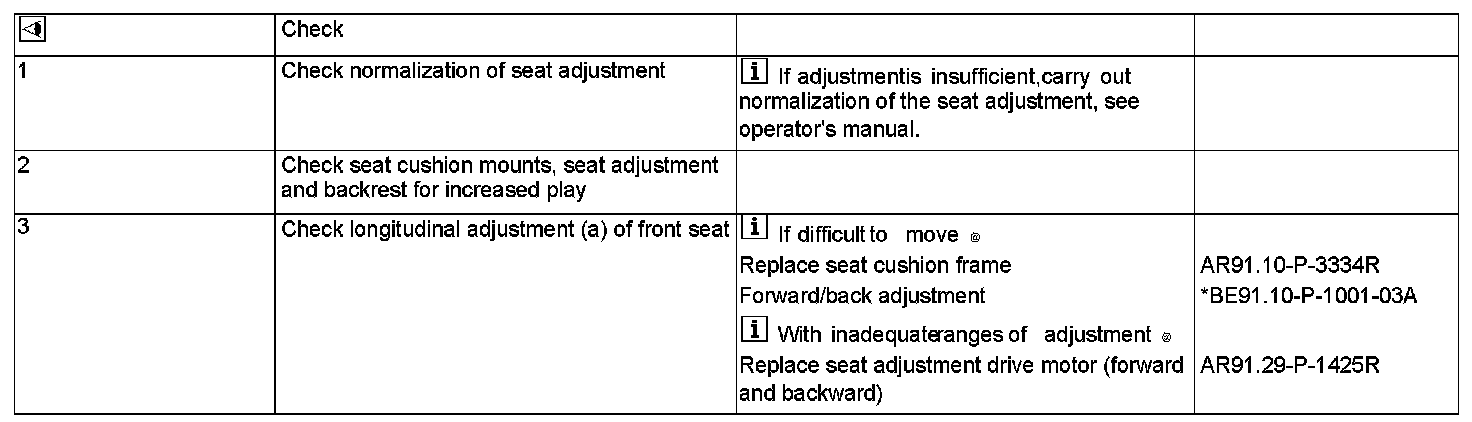

Part 1:

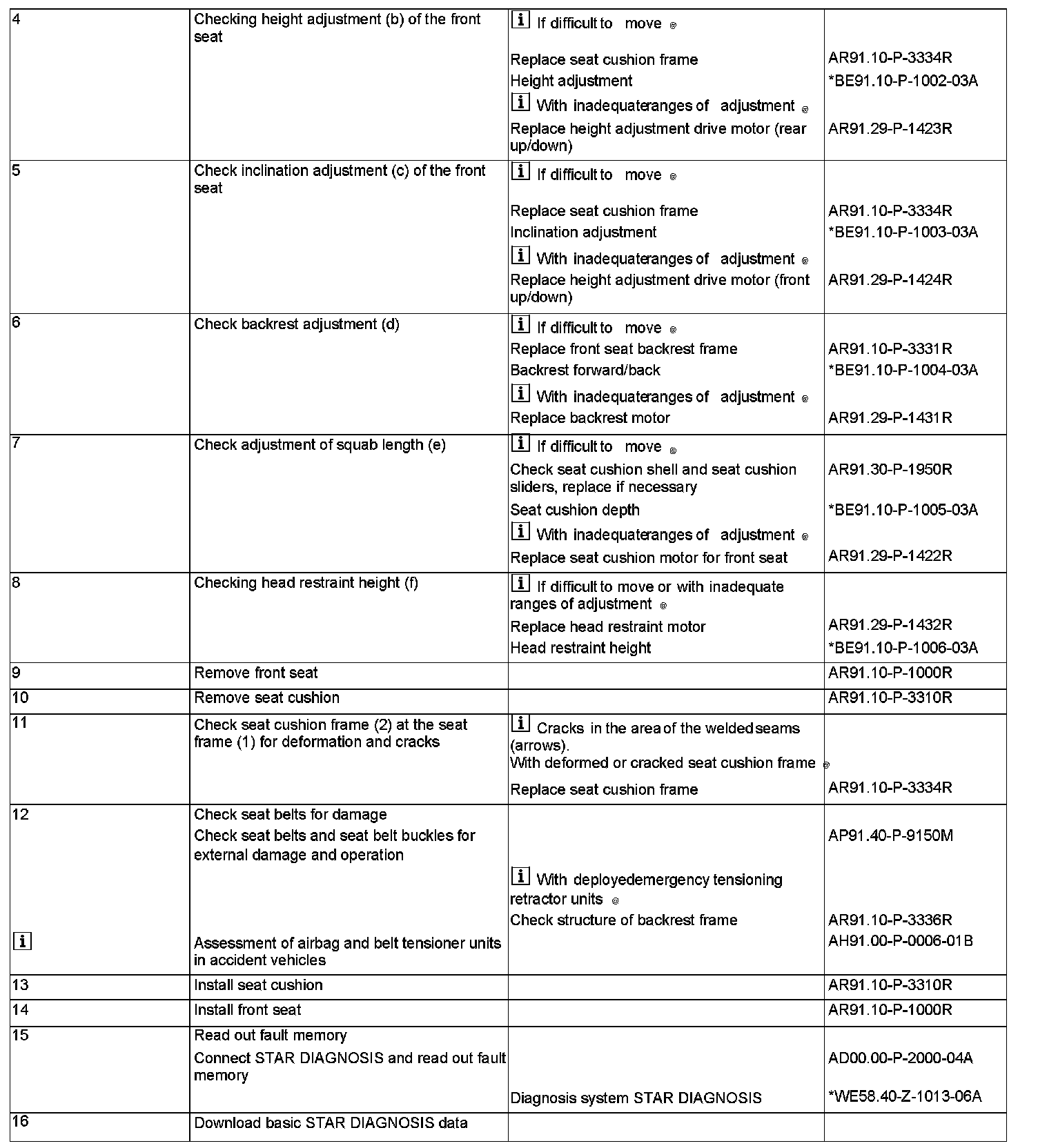

Part 2:

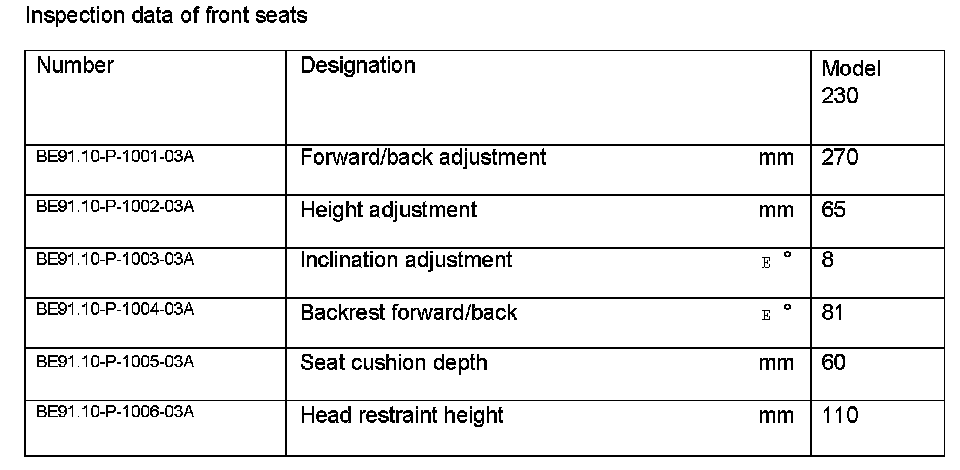

Inspection Data Of Front Seats:
