Home >> Mercedes Benz >> 2008 >> SL 55 AMG (230.472) V8-5.5L SC (113.995) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Convertible Top >> Convertible Top Weatherstrip >> Service and Repair >> Removal and Replacement >> AR77.50-P-6766R Remove/Install Seal At Outer Top Part of C-Pillar For Vario Roof

AR77.50-P-6766R Remove/Install Seal At Outer Top Part of C-Pillar For Vario Roof



AR77.50-P-6766R Remove/Install Seal At Outer Top Part of C-Pillar For Vario Roof

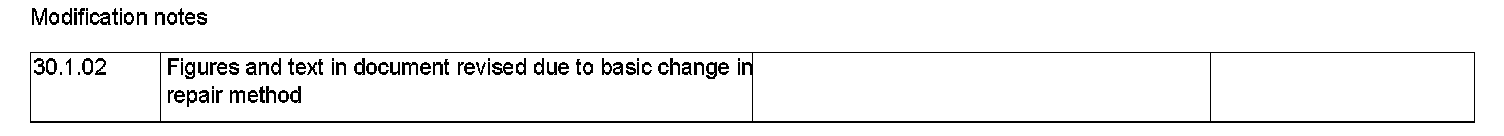

Modification Notes:

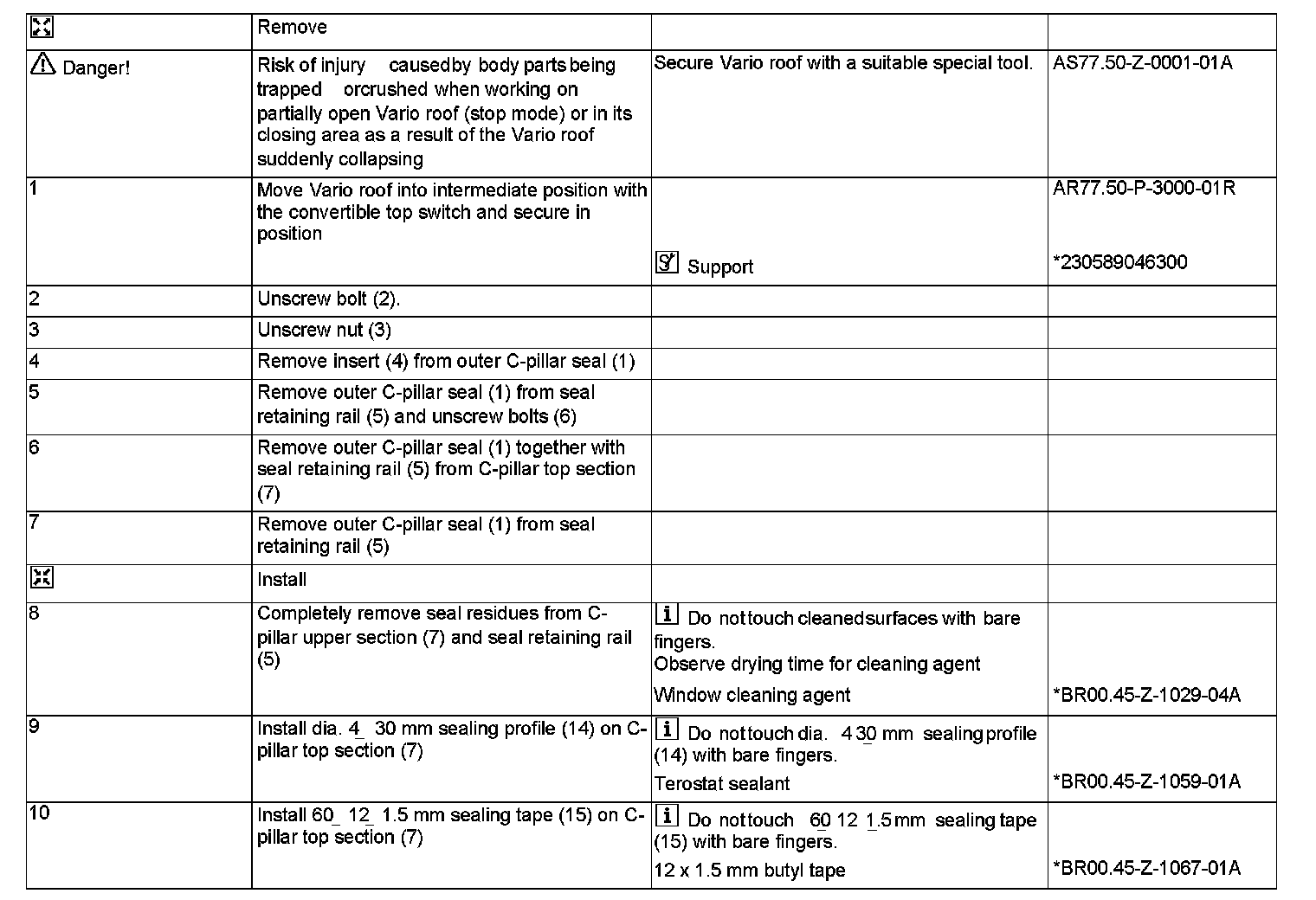

Part 1:

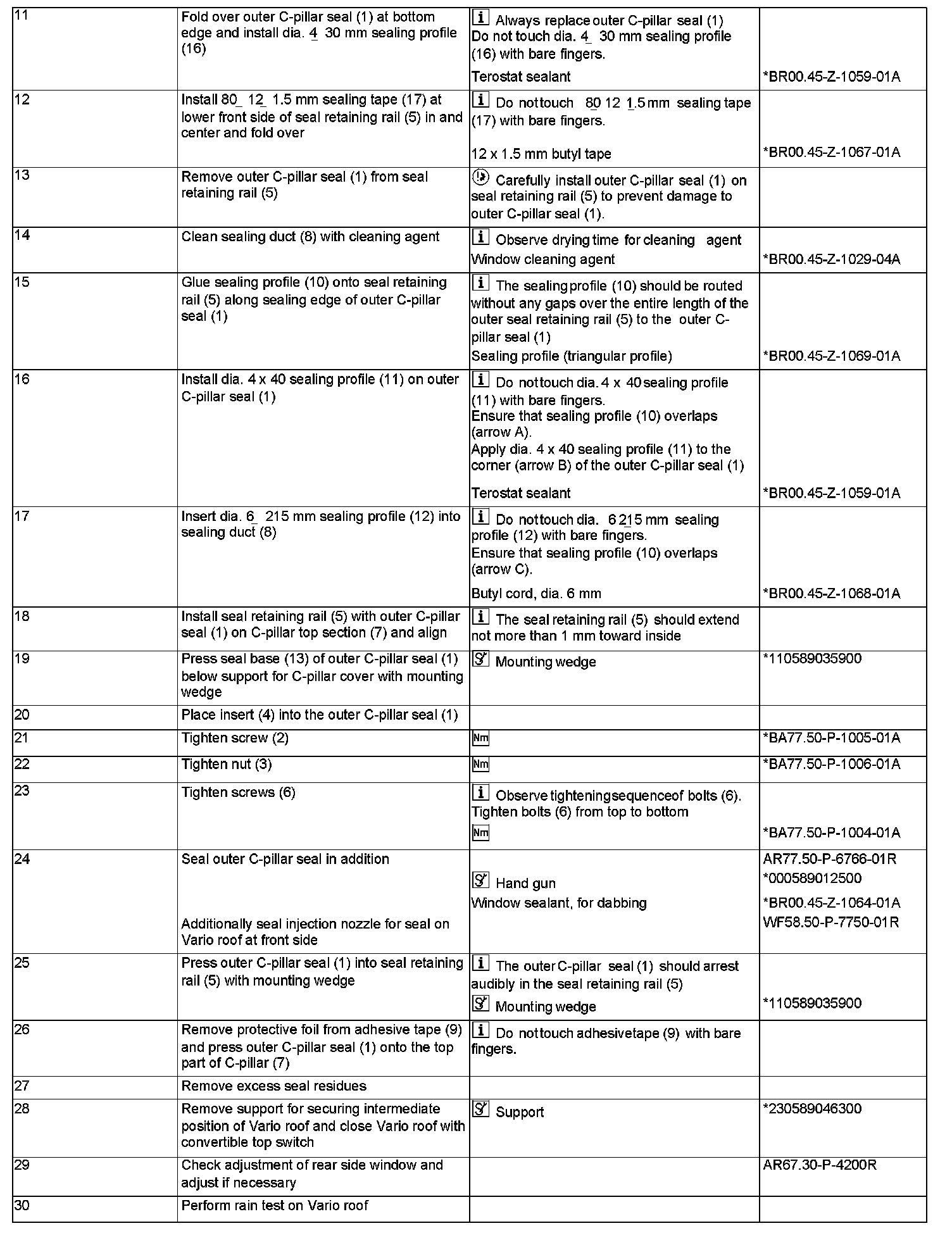

Part 2:

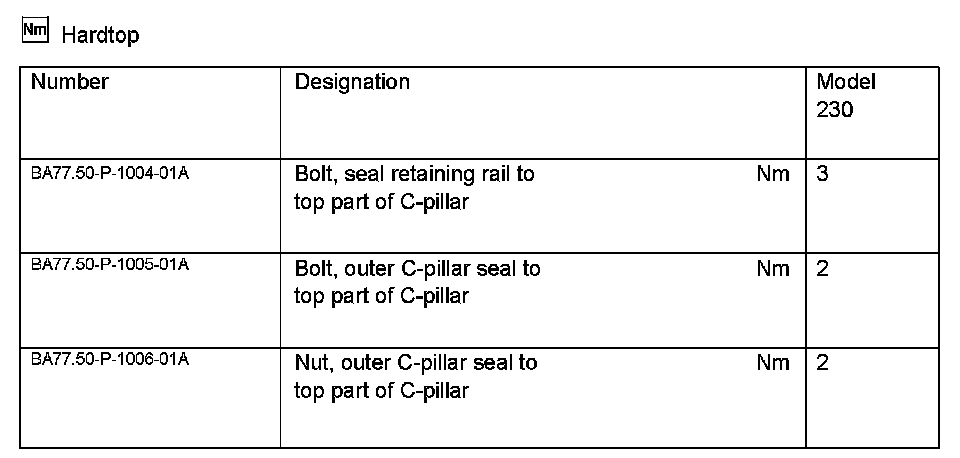

Hardtop:
