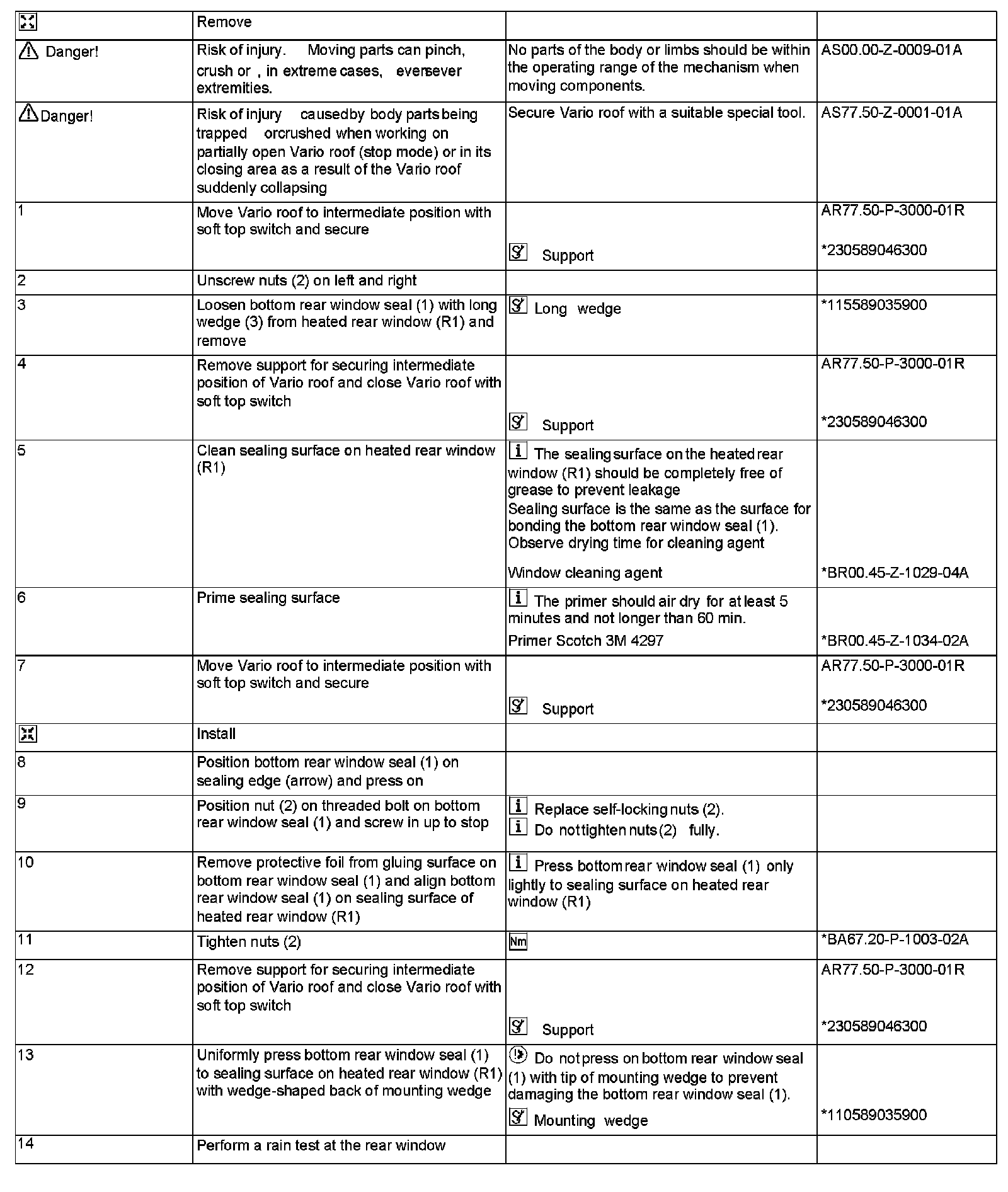

AR77.20-P-1380R Remove/Install Bottom Rear Window Seal At Vario Roof
AR77.20-P-1380R Remove/Install Bottom Rear Window Seal At Vario Roof
AR77.20-P-1380R Remove/Install Bottom Rear Window Seal At Vario Roof

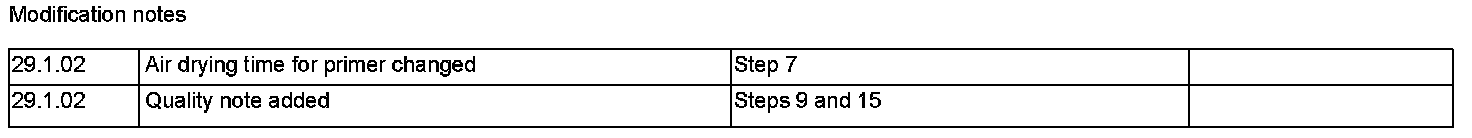

Modification Notes:

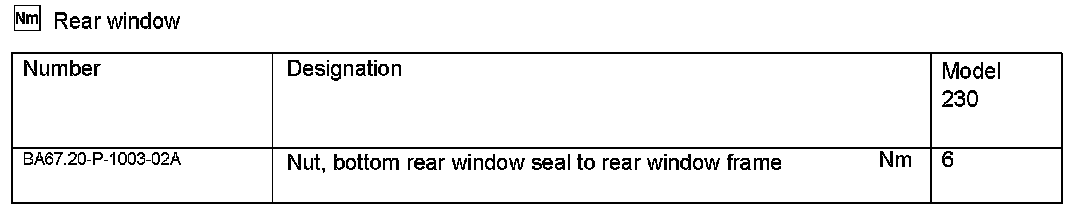

Rear Window:
