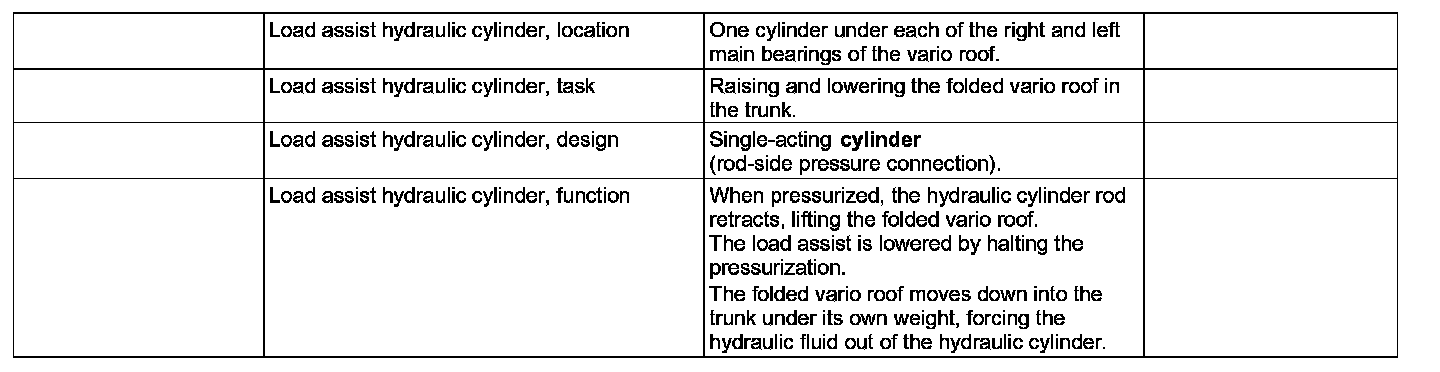

GF77.37-P-3071R Vario Roof Load Assist Hydraulic Cylinder, Location / Task / Design / Function



GF77.37-P-3071R Vario Roof Load Assist Hydraulic Cylinder, Location / Task / Design / Function
- up to model year 08

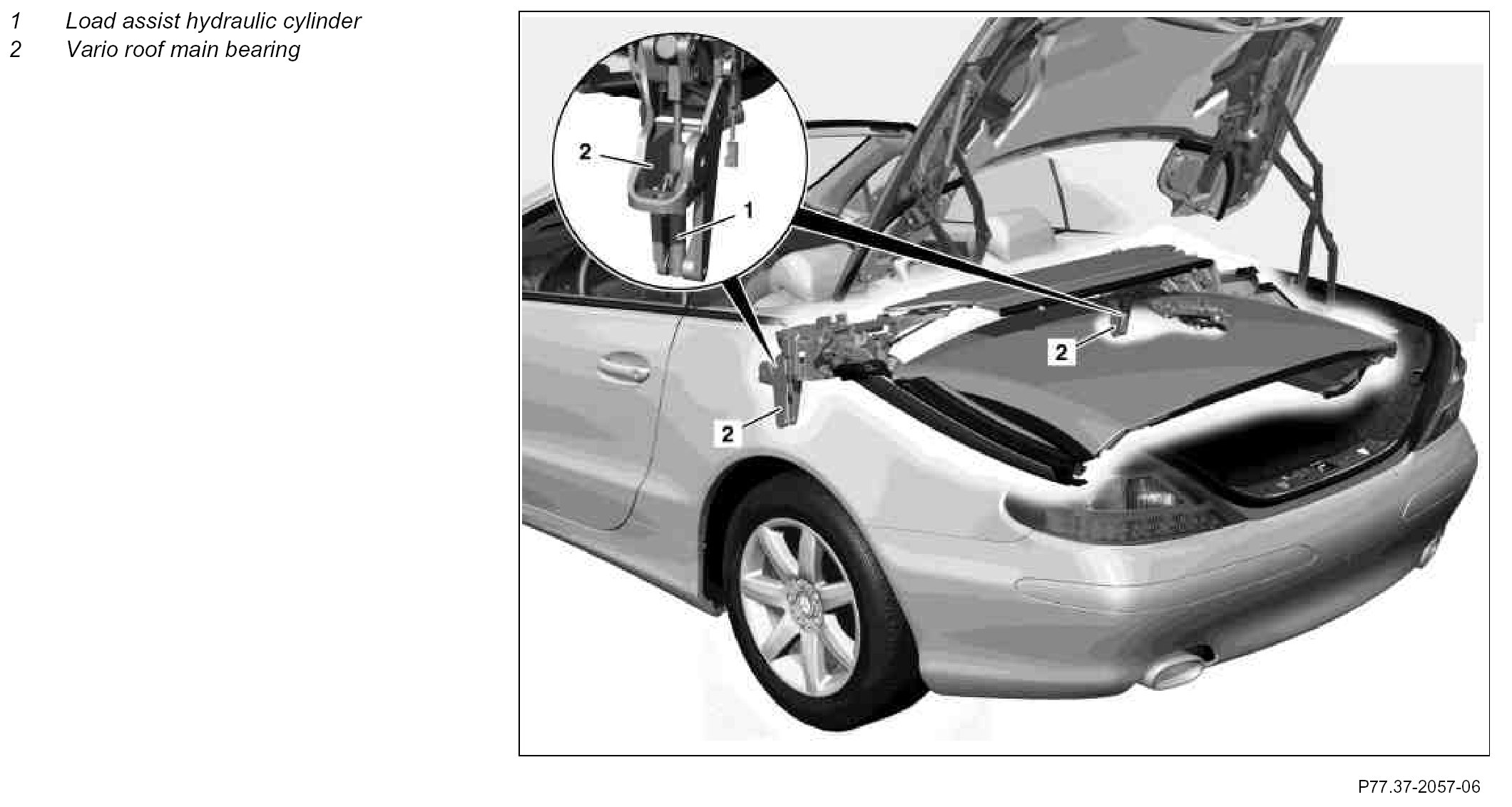

Component Identification:
