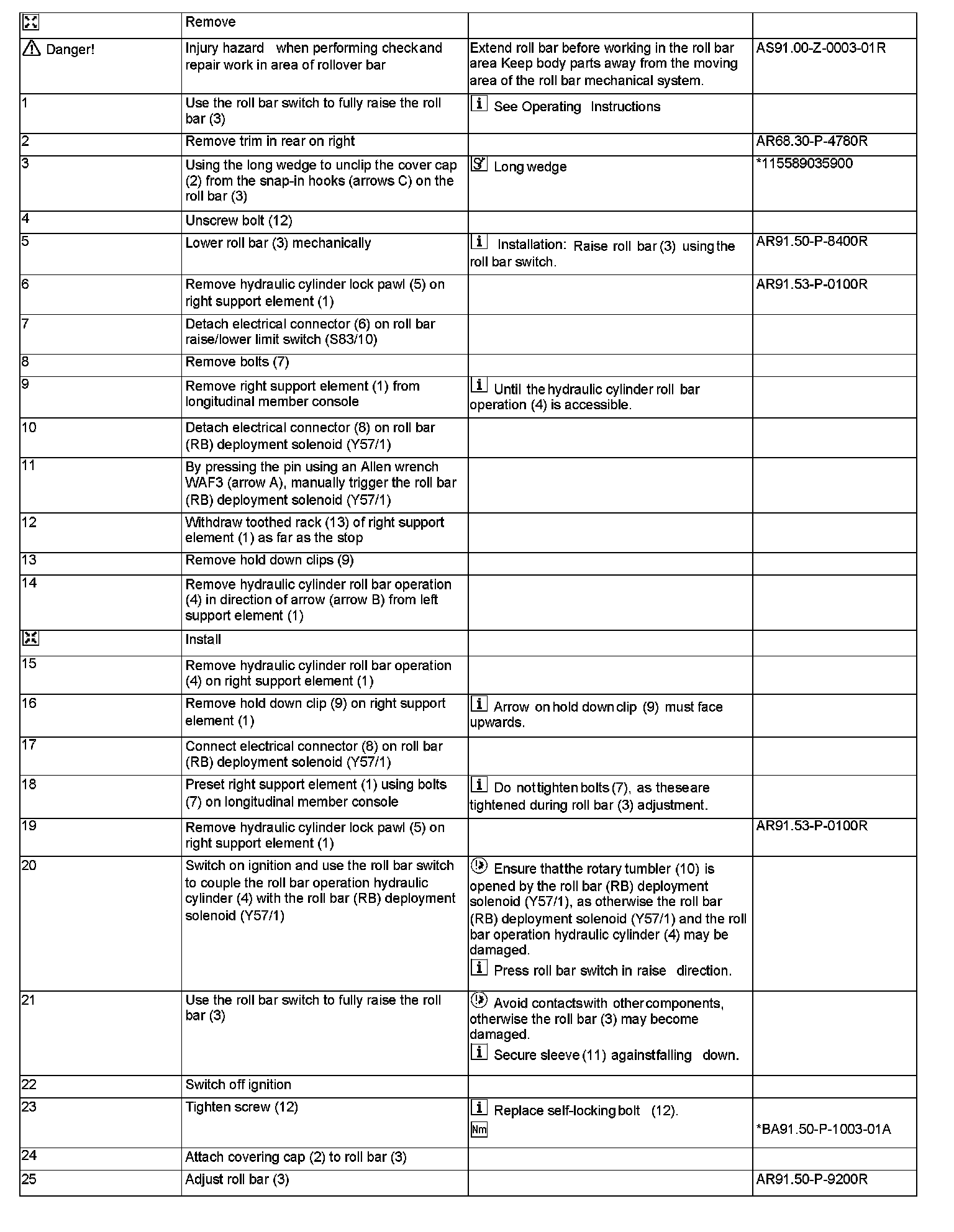

AR91.50-P-0020R Remove/Install Support Element At Right of Roll Bar



AR91.50-P-0020R Remove/Install Support Element At Right of Roll Bar
- Except CODE (P99) "AMG Black Series" special model

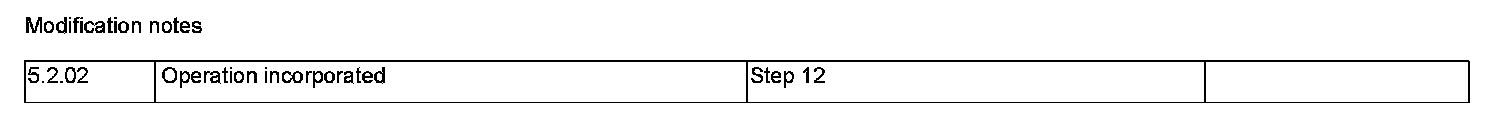

Modification Notes:

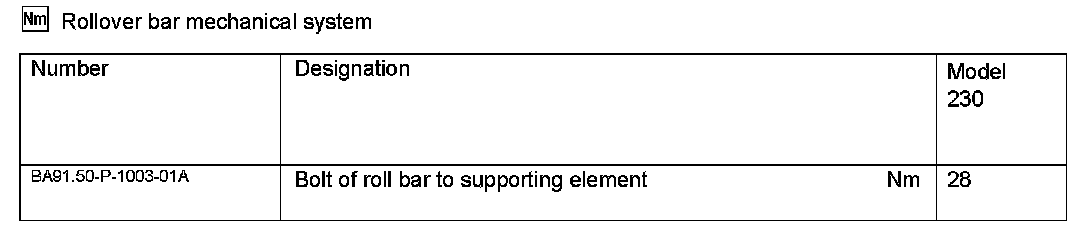

Rollover Bar Mechanical System:
